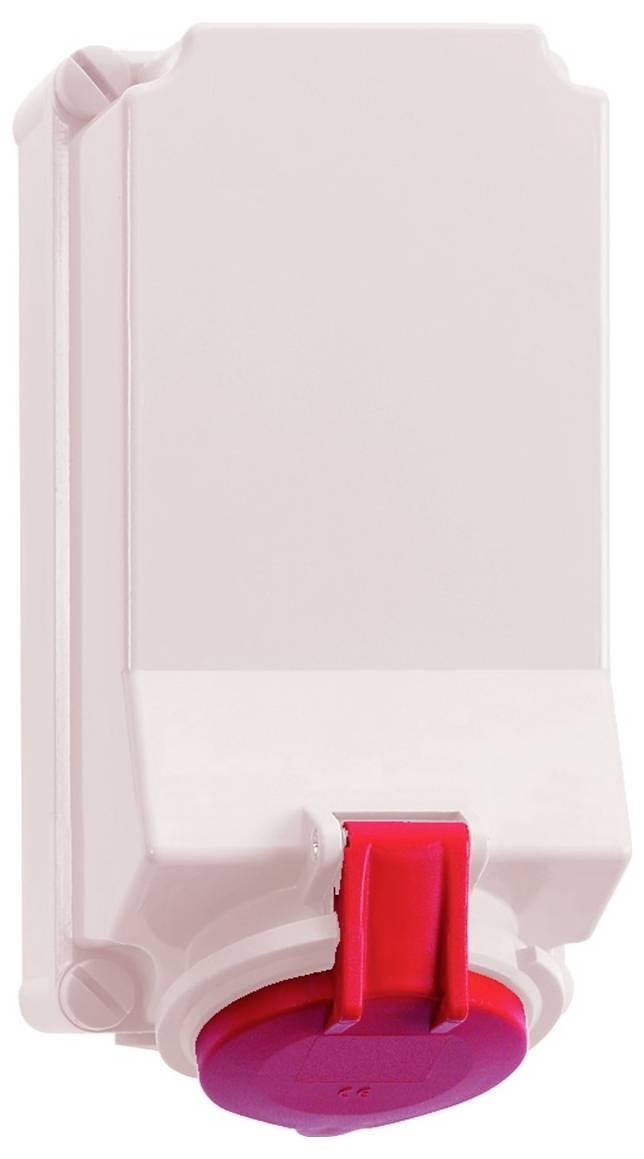

Bals Elektrotechnik 11999 11999 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Surface-mounted version
- Material: Plastic
- RAL number: 3000
- Protection type (IP) IP44
- Mounting type: Inside mounting
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Dim
(L x W x H) 135 x 118 x 251 mm
- Length
135 mm
- Width
118 mm
- Height
251 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543924 Bals Elektrotechnik 11999 11999 CEE wall socket 1 pc(s)
Description
WALL SOCKET QUICK-CONNECT TE
32A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Red hinged lid RAL 3000, light beige lower part of housing, pale beige upper part of housing, pale beige casing screws
Device height: 251 mm, device width: 118 mm, device depth: 135 mm
Other technical characteristics: The cable entry is open once, closed once on top, closed twice at the bottom
This text is machine translated.
