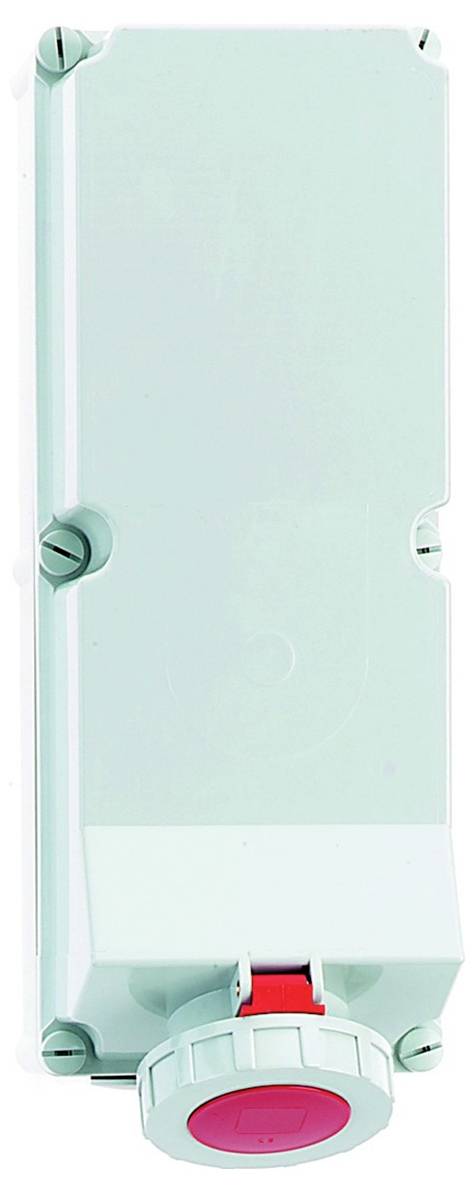

Bals Elektrotechnik 15008 15008 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- NH fuse
- IEC current 125 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Switch
- Cores
4
- Dim
(W x H) 180 mm x 512 mm
- Width
180 mm
- Height
512 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543410 Bals Elektrotechnik 15008 15008 CEE wall socket 1 pc(s)
Description
Wall socket TE secured
125A 4P (3P+PE) 400V (380 - 415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum conductor cross-section: 70 mm² (possibly limited by inserted cable entry)
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
NH fuse
Cable entry: 1xM40 top, 1xM40/M50 bottom
Colour: Hinged cover red RAL 3000, lower housing gray RAL 7035, housing screws gray RAL 7035, housing cover gray RAL 7035, bayonet ring gray RAL 7035
Device height: 512 mm, device width: 180 mm, device depth: 210 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, with built-in Si switch disconnectors NH00
This text is machine translated.
