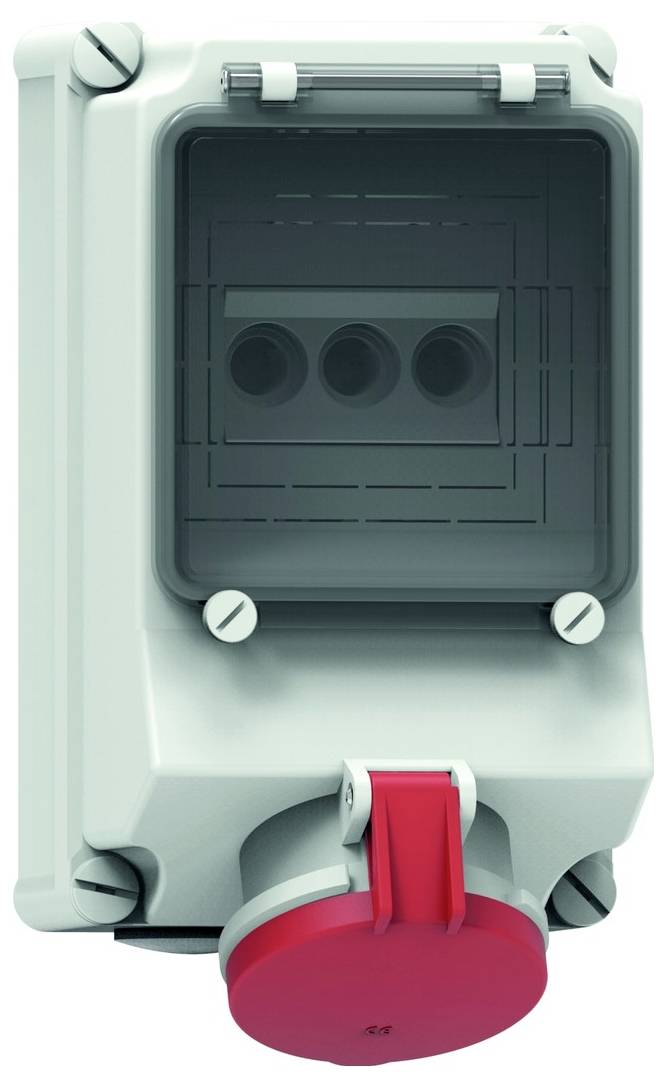

Bals Elektrotechnik 15081 15081 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- D0-fuse protection
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Cores
4
- Dim
(W x H) 160 mm x 303 mm
- Width
160 mm
- Height
303 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543408 Bals Elektrotechnik 15081 15081 CEE wall socket 1 pc(s)
Description
Wall socket TE secured
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
D0-fuse protection
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, operating flap smoke topas, housing screws gray RAL 7035
Device height: 303 mm, device width: 160 mm, device depth: 185 mm
Other technical features: The cable entry is open once at the top and twice at the bottom; a fuse socket D 02 3-pin is present under the operating flap
This text is machine translated.
