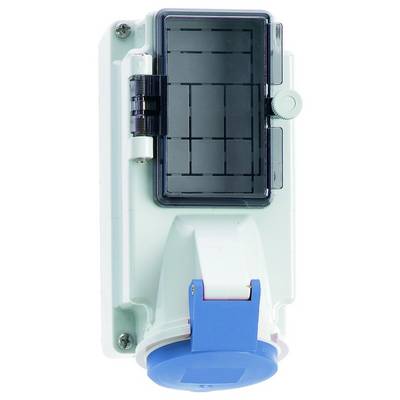

Image similar

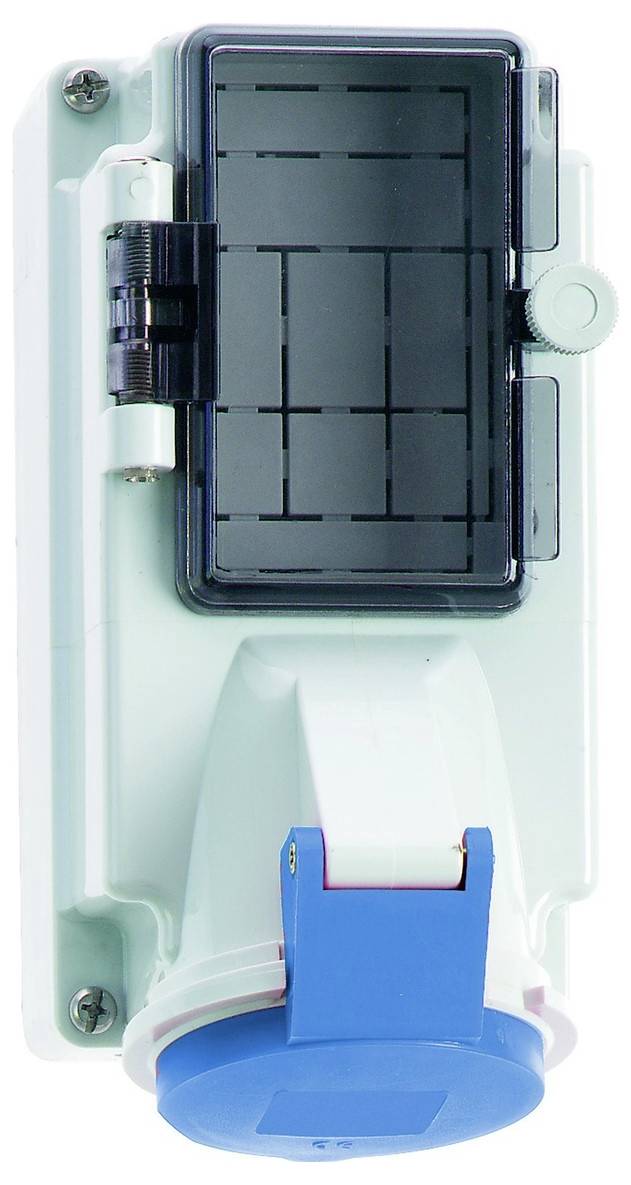

Image similar
Bals Elektrotechnik 15096 15096 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- Security: Without
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
5
- Dim
(L x W x H) 122 x 90 x 190 mm
- Length
122 mm
- Width
90 mm
- Height
190 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546537 Bals Elektrotechnik 15096 15096 CEE wall socket 1 pc(s)
Description
Wall socket Quick-Connect TE, secured
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid blue RAL 5015, lower part gray RAL 7035, upper part of housing gray RAL 7035, operating flap smoke topaz
Device height: 190 mm, device width: 90 mm, device depth: 122 mm
Other technical features: The cable entry is open once and closed twice at the bottom, the lower part of the housing can be rotated by 180°, there is a mounting rail in the lower part of the housing, the safety cover is available with knockouts, a mounting rail for 5 division units vertical is present below the control flap
This text is machine translated.
