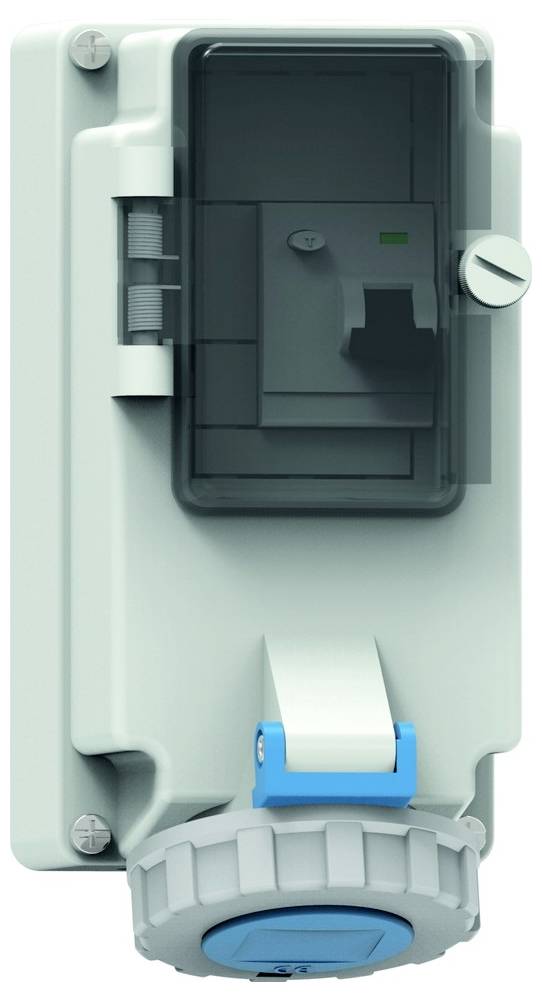

Bals Elektrotechnik 15107 15107 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Security: Other
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI circuit breaker: Yes
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 115 x 90 x 194 mm
- Length
115 mm
- Width
90 mm
- Height
194 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547600 Bals Elektrotechnik 15107 15107 CEE wall socket 1 pc(s)
Description
Wall socket Quick-Connect TE, secured
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Other
FI-circuit breaker FI 40/0.03A 4p
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid blue RAL 5015, lower section gray RAL 7035, upper case section gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 194 mm, device width: 90 mm, device depth: 115 mm
Other technical features: The cable entry is open once and closed twice at the bottom. The lower part of the housing can be rotated by 180°, with built-in Fi circuit breaker 40/0.03A 4-pin
This text is machine translated.
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Other
FI-circuit breaker FI 40/0.03A 4p
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid blue RAL 5015, lower section gray RAL 7035, upper case section gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 194 mm, device width: 90 mm, device depth: 115 mm
Other technical features: The cable entry is open once and closed twice at the bottom. The lower part of the housing can be rotated by 180°, with built-in Fi circuit breaker 40/0.03A 4-pin
This text is machine translated.
