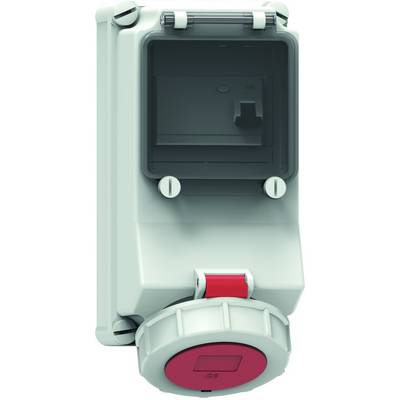

Image similar

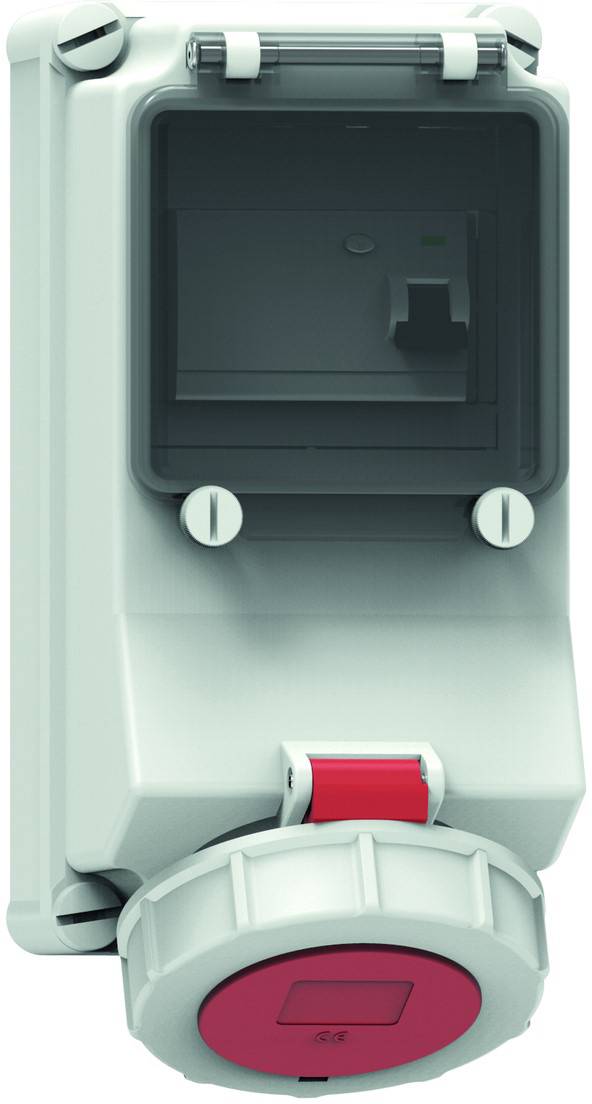

Image similar
Bals Elektrotechnik 15128 15128 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Security: Other
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI circuit breaker: Yes
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 144 x 118 x 260 mm
- Length
144 mm
- Width
118 mm
- Height
260 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544473 Bals Elektrotechnik 15128 15128 CEE wall socket 1 pc(s)
Description
Wall socket Quick-Connect protected
32A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Other
FI-circuit breaker FI 40/0.03A 4p
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid red RAL 3000, lower housing gray RAL 7035, housing screws gray RAL 7035, bayonet ring gray RAL 7035, housing part gray RAL 7035, operating flap smoke topas
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open once, closed once on top, closed twice on bottom, with built-in Fi circuit breaker 40/0.03A 4-pin
This text is machine translated.
