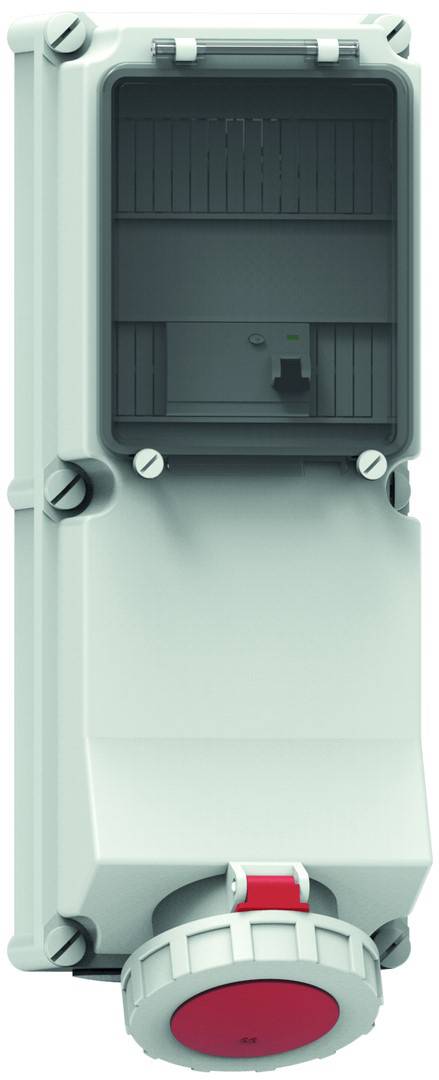

Bals Elektrotechnik 15168 15168 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Security: Other
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI circuit breaker: Yes
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Cores
5
- Dim
(L x W x H) 192 x 180 x 503 mm
- Length
192 mm
- Width
180 mm
- Height
503 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544475 Bals Elektrotechnik 15168 15168 CEE wall socket 1 pc(s)
Description
Wall socket protected
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Other
FI-circuit breaker FI 63/0.3A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Hinged lid red RAL 3000, lower housing gray RAL 7035, housing screws gray RAL 7035, housing cover gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once and is closed twice at the bottom, with built-in FI circuit-breaker 63/0.3A 4-pin
This text is machine translated.
