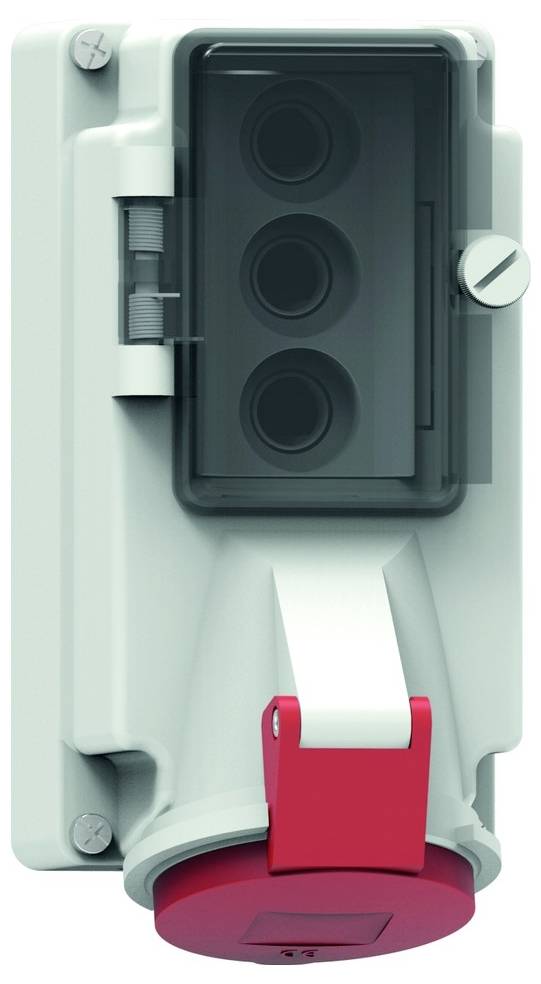

Image similar

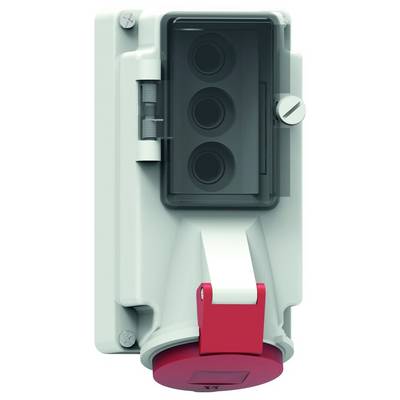

Image similar
Bals Elektrotechnik 158 158 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- D0-fuse protection
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 114 x 90 x 189 mm
- Length
114 mm
- Width
90 mm
- Height
189 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543434 Bals Elektrotechnik 158 158 CEE wall socket 1 pc(s)
Description
Wall socket Quick-Connect TE, secured
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D0-fuse protection
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, operating flap smoke topaz
Device height: 189 mm, device width: 90 mm, device depth: 114 mm
Other technical features: The cable entry is open once and closed twice at the bottom, the lower part of the housing can be rotated by 180°, a fuse socket D 01 3-pin is present under the operating flap
This text is machine translated.
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D0-fuse protection
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, operating flap smoke topaz
Device height: 189 mm, device width: 90 mm, device depth: 114 mm
Other technical features: The cable entry is open once and closed twice at the bottom, the lower part of the housing can be rotated by 180°, a fuse socket D 01 3-pin is present under the operating flap
This text is machine translated.
