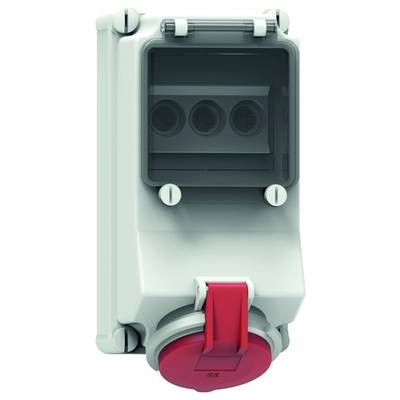

Image similar

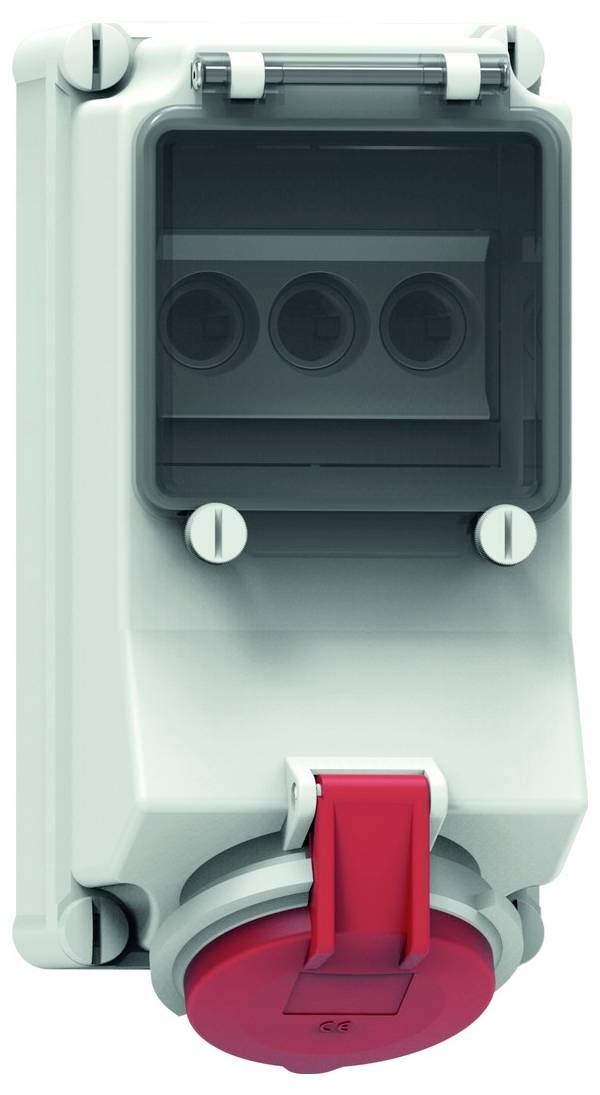

Image similar
Bals Elektrotechnik 1588 1588 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- D0-fuse protection
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Switch version: Without
- Switch: Without on/off switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 135 x 118 x 251 mm
- Length
135 mm
- Width
118 mm
- Height
251 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545516 Bals Elektrotechnik 1588 1588 CEE wall socket 1 pc(s)
Description
Wall socket Quick-Connect protected
32A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D0-fuse protection
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged cover red RAL 3000, lower part gray RAL 7035, housing screws gray RAL 7035, housing cover gray RAL 7035, operating flap smoky topaz
Device height: 251 mm, device width: 118 mm, device depth: 135 mm
Other technical features: The cable entry is open once, closed once on top, closed twice on bottom, a fuse socket D 02 3-pin is present under the operating flap
This text is machine translated.
