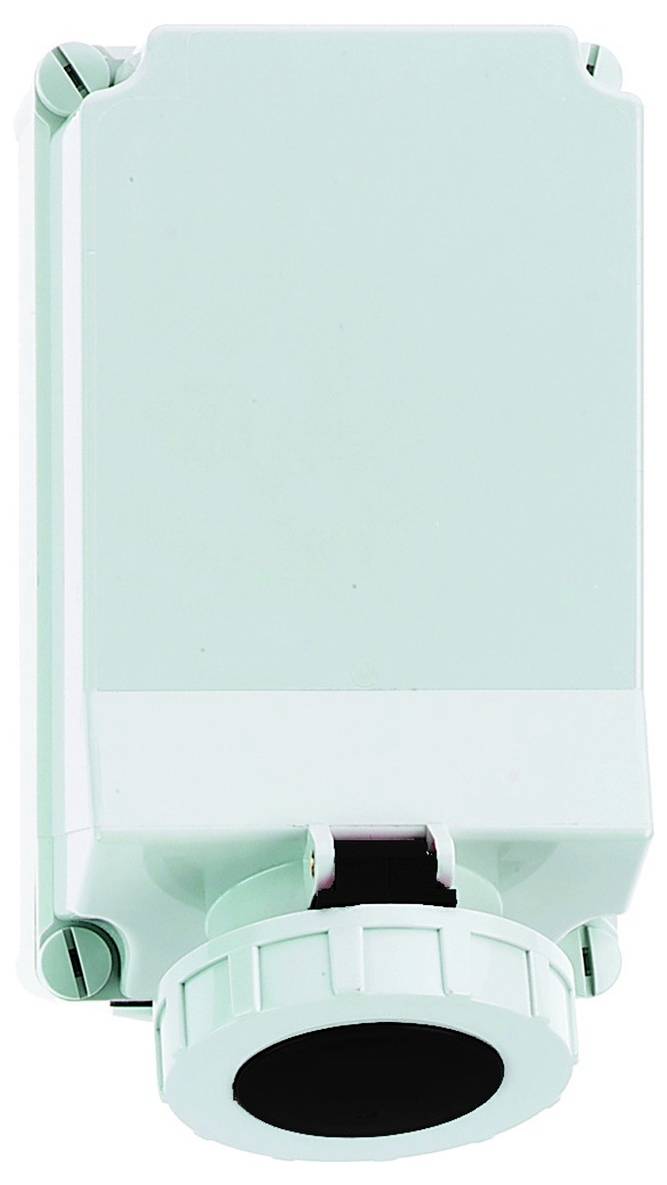

Bals Elektrotechnik 16071 16071 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Security: Without
- IEC current 63 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: Electrical interlock
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Switch
- Cores
4
- Dim
(L x W x H) 195 x 160 x 304 mm
- Length
195 mm
- Width
160 mm
- Height
304 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543938 Bals Elektrotechnik 16071 16071 CEE wall socket 1 pc(s)
Description
Wall socket TE can be switched off, locked
63A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40/M20 top, 1xM40/M32 bottom
Colour: Hinged cover black RAL 9005, lower housing gray RAL 7035, upper housing section gray RAL 7035, housing screws gray RAL 7035, bayonet ring gray RAL 7035
Device height: 304 mm, device width: 160 mm, device depth: 195 mm
Other technical features: With PSK locking (pilot switch contact), the electrical interlocking is via the PSK contact and contactor, the cable entry is open twice at the top and twice at the bottom
