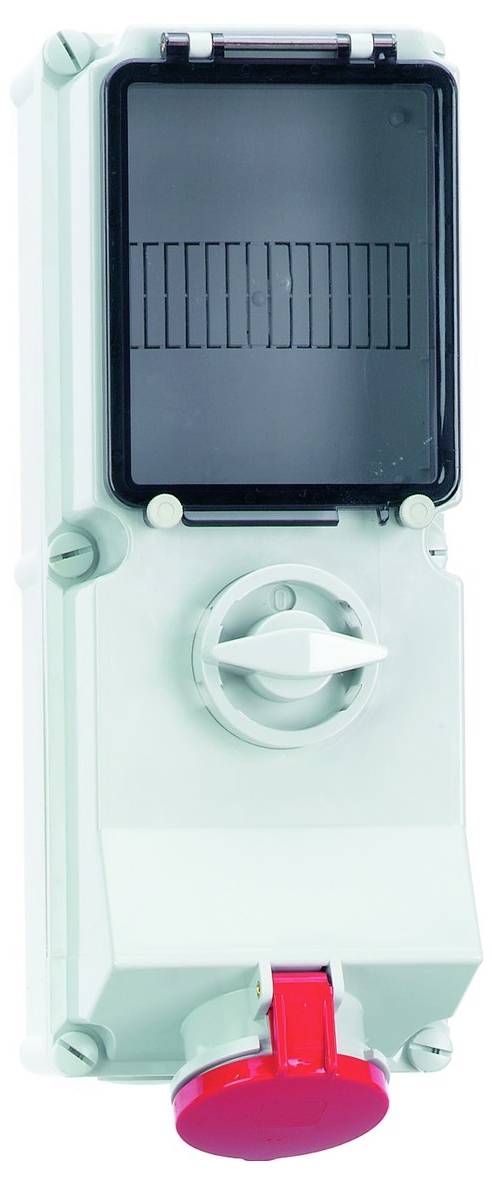

Image similar
Image similar
Bals Elektrotechnik 17059 17059 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- Security: Without
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: With on/off switch without locking
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Product type
CEE wall socket
- Features
On/off switch
- Cores
4
- Dim
(L x W x H) 191 x 180 x 500 mm
- Length
191 mm
- Width
180 mm
- Height
500 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543927 Bals Elektrotechnik 17059 17059 CEE wall socket 1 pc(s)
Description
Wall socket TE switchable, protected
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Hinged lid red RAL 3000, lower housing gray RAL 7035, housing screws gray RAL 7035, housing cover gray RAL 7035, switch knob gray RAL 7035, operating flap smoke topas
Device height: 500 mm, device width: 180 mm, device depth: 191 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 8 division units is available horizontally under the operating flap
