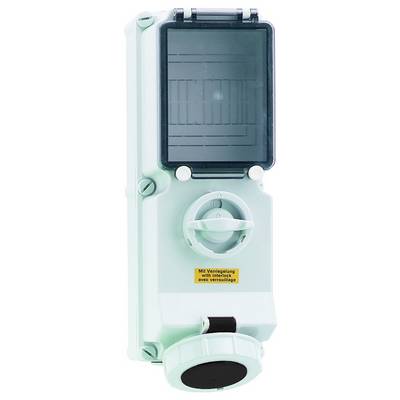

Image similar

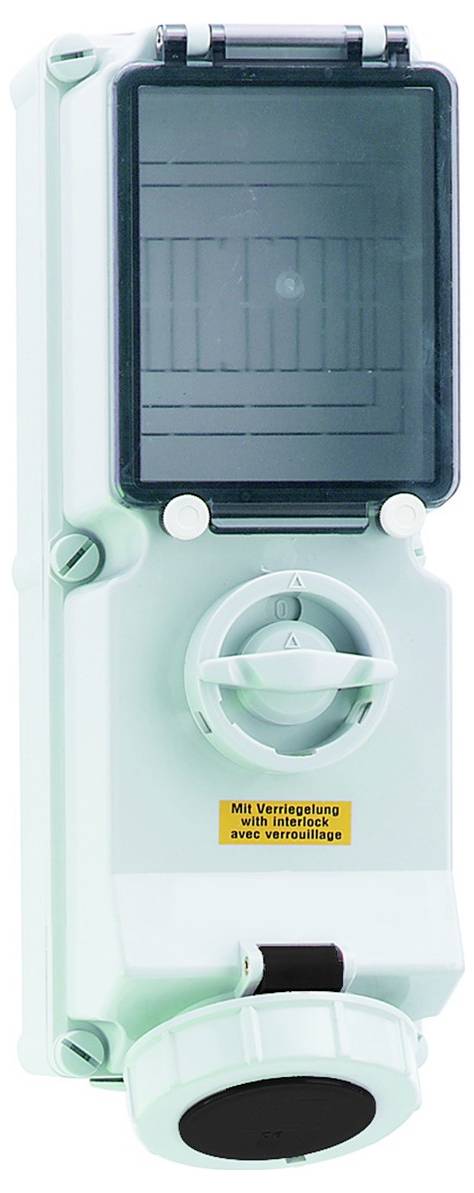

Image similar
Bals Elektrotechnik 17177 17177 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Security: Without
- IEC current 16 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: Mechanical locking
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Cores
4
- Dim
(W x H) 134 mm x 390 mm
- Width
134 mm
- Height
390 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544457 Bals Elektrotechnik 17177 17177 CEE wall socket 1 pc(s)
Description
Wall socket TE switchable, locked, secured
16A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Colour: Hinged lid black RAL 9005, lower housing gray RAL 7035, upper housing part gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 390 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-locks with a clamp diameter of up to 7mm, a mounting rail for 6 division units is available horizontally under the operating flap, a mounting rail is available in the lower section
This text is machine translated.
