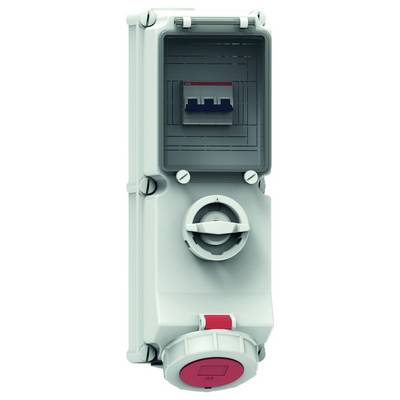

Image similar

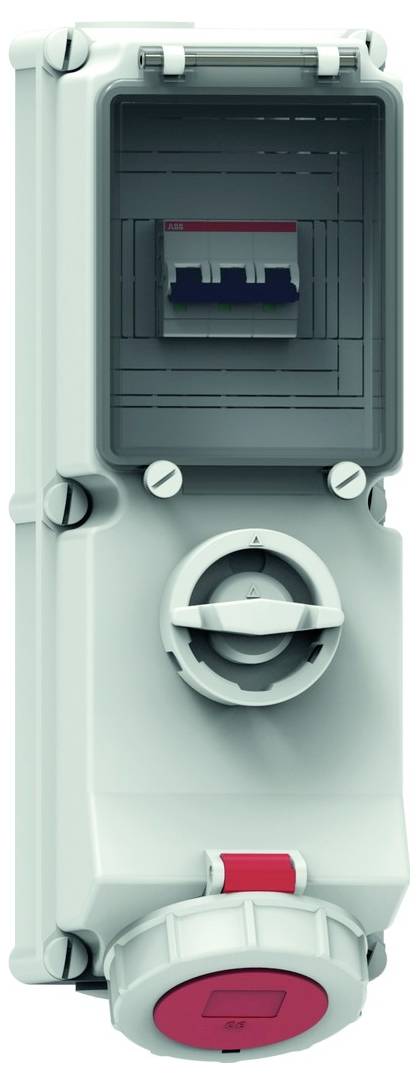

Image similar
Bals Elektrotechnik 17192 17192 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Auto-secure
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: Mechanical locking
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Cores
4
- Dim
(L x W x H) 153 x 134 x 390 mm
- Length
153 mm
- Width
134 mm
- Height
390 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544968 Bals Elektrotechnik 17192 17192 CEE wall socket 1 pc(s)
Description
Wall socket TE switchable, locked, secured
16A 4P (3P+PE) 400V (380 - 415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Auto-secure
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Device color: Hinged lid red RAL 3000, lower housing gray RAL 7035, upper housing part gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 390 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7 mm, with integrated circuit breaker C 3-pin
This text is machine translated.
16A 4P (3P+PE) 400V (380 - 415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Auto-secure
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Device color: Hinged lid red RAL 3000, lower housing gray RAL 7035, upper housing part gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoky topaz, bayonet ring gray RAL 7035
Device height: 390 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7 mm, with integrated circuit breaker C 3-pin
This text is machine translated.
