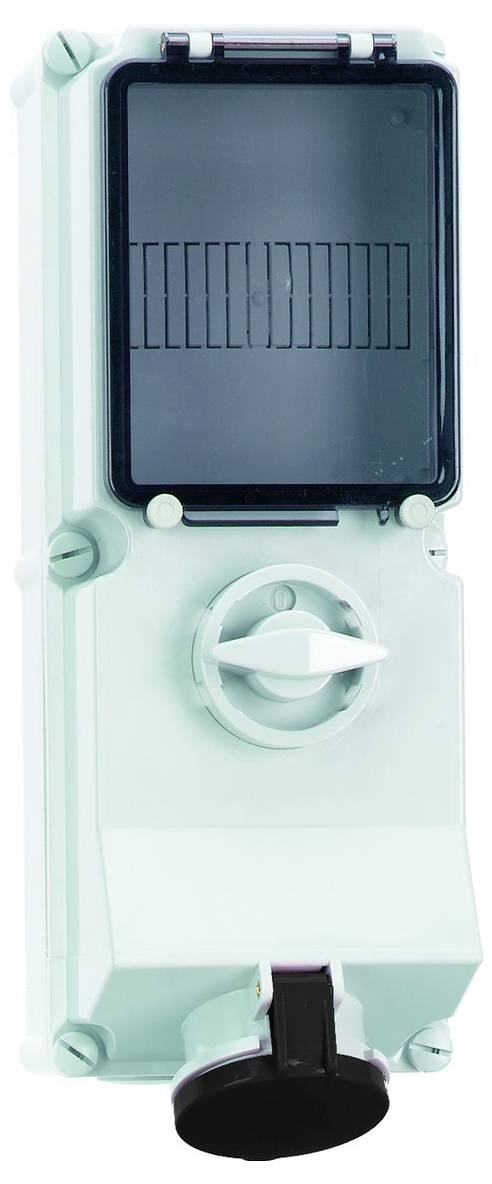

Bals Elektrotechnik 17338 17338 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- Security: Without
- IEC current 32 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: With on/off switch without locking
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Product type
CEE wall socket
- Features
On/off switch
- Cores
4
- Dim
(L x W x H) 153 x 134 x 391 mm
- Length
153 mm
- Width
134 mm
- Height
391 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545496 Bals Elektrotechnik 17338 17338 CEE wall socket 1 pc(s)
Description
Wall socket can be switched off and protected
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Colour: Hinged cover black RAL 9005, lower housing gray RAL 7035, upper housing section gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoke topas
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 6 division units is available horizontally under the operating flap
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Colour: Hinged cover black RAL 9005, lower housing gray RAL 7035, upper housing section gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoke topas
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 6 division units is available horizontally under the operating flap
This text is machine translated.
