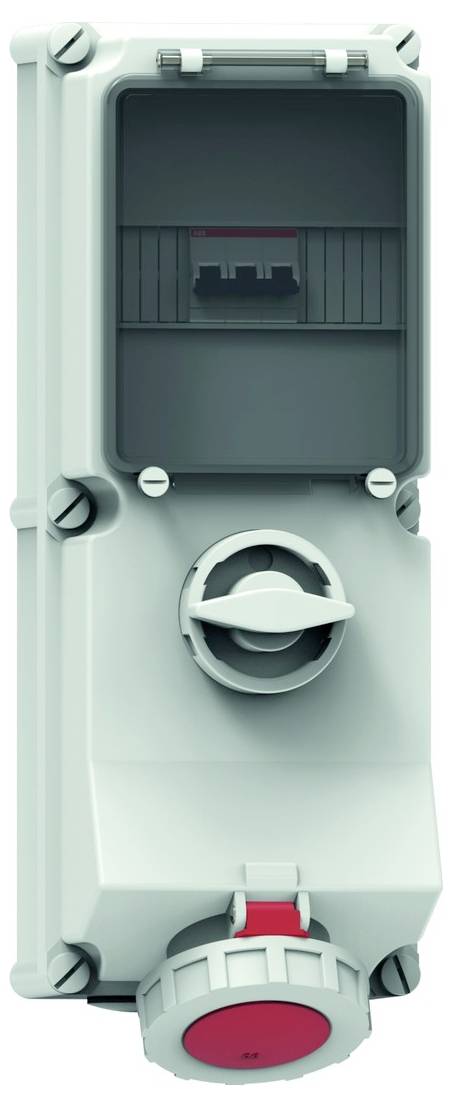

Bals Elektrotechnik 17551 17551 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Design: Lower part and upper part
- Protection class (IP) IP67
- Housing material: Plastic
- Auto-secure
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: Mechanical locking
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Cores
5
- Dim
(L x W x H) 192 x 180 x 503 mm
- Length
192 mm
- Width
180 mm
- Height
503 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544462 Bals Elektrotechnik 17551 17551 CEE wall socket 1 pc(s)
Description
Wall socket can be switched off, locked, secured
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Auto-secure
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Hinged lid red RAL 3000, lower housing gray RAL 7035, housing screws gray RAL 7035, housing cover gray RAL 7035, switch knob gray RAL 7035, bayonet ring gray RAL 7035, operating flap smoke topas
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, with integrated circuit breaker C 3-pin
