Bals Elektrotechnik 17596 17596 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI circuit breaker: Yes
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- D0-fuse protection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
CEE plug (5-pin, 63 A)
- Cores
5
- Type
Lower and upper part
IP67
- Factory colour
Red
- Dim
(L x W x H) 192 x 180 x 503 mm
- Length
192 mm
- Width
180 mm
- Height
503 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146864 Bals Elektrotechnik 17596 17596 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146864 Bals Elektrotechnik 17596 17596 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
Description

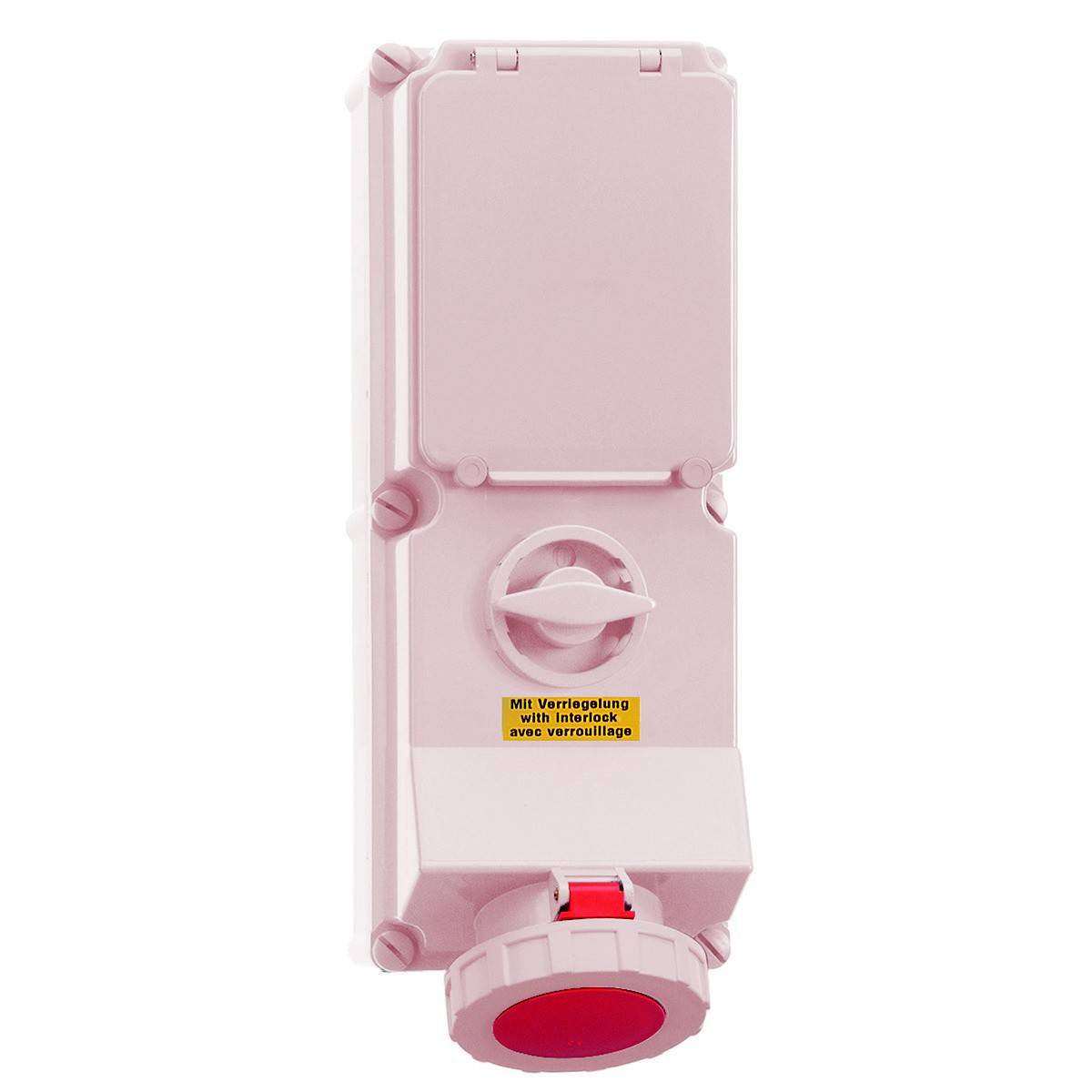

Wall socket TE switchable, locked, secured
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
D0-fuse protection
FI-circuit breaker FI 63/0.03A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Light beige bayonet ring, light beige housing top, red hinged cover RAL 3000, light beige lower case of housing, pale beige control flap, pale beige switch knob, pale beige case screws, pale beige case screws

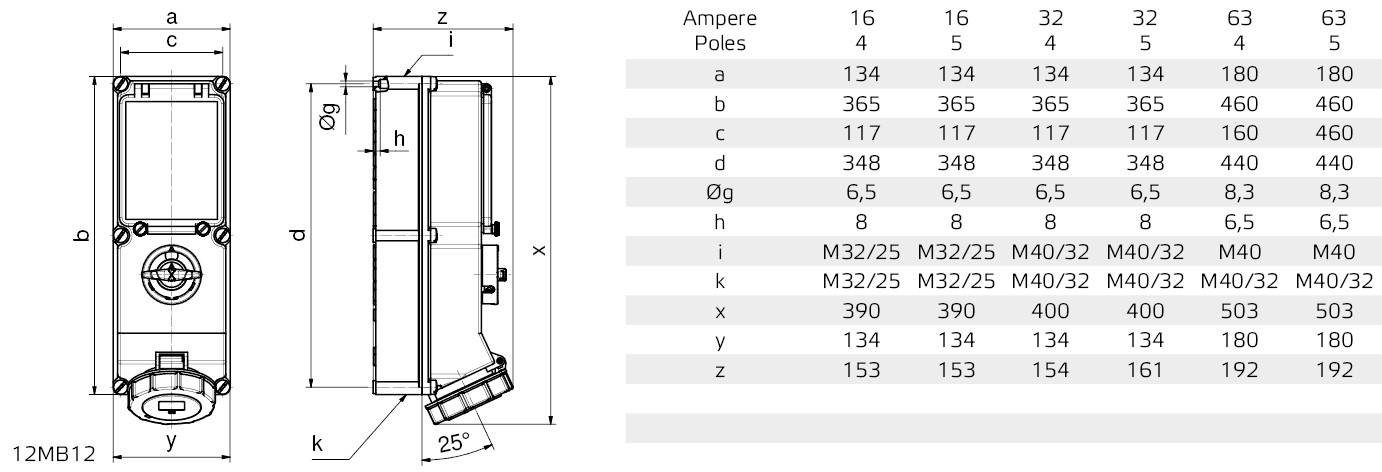

Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-type locks with a clamp diameter of up to 7mm, a fuse base D 02 3-pin is present under the operating flap, with built-in Fi circuit breaker 63/0.03A 4-pin
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
D0-fuse protection
FI-circuit breaker FI 63/0.03A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Light beige bayonet ring, light beige housing top, red hinged cover RAL 3000, light beige lower case of housing, pale beige control flap, pale beige switch knob, pale beige case screws, pale beige case screws
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-type locks with a clamp diameter of up to 7mm, a fuse base D 02 3-pin is present under the operating flap, with built-in Fi circuit breaker 63/0.03A 4-pin
This text is machine translated.
