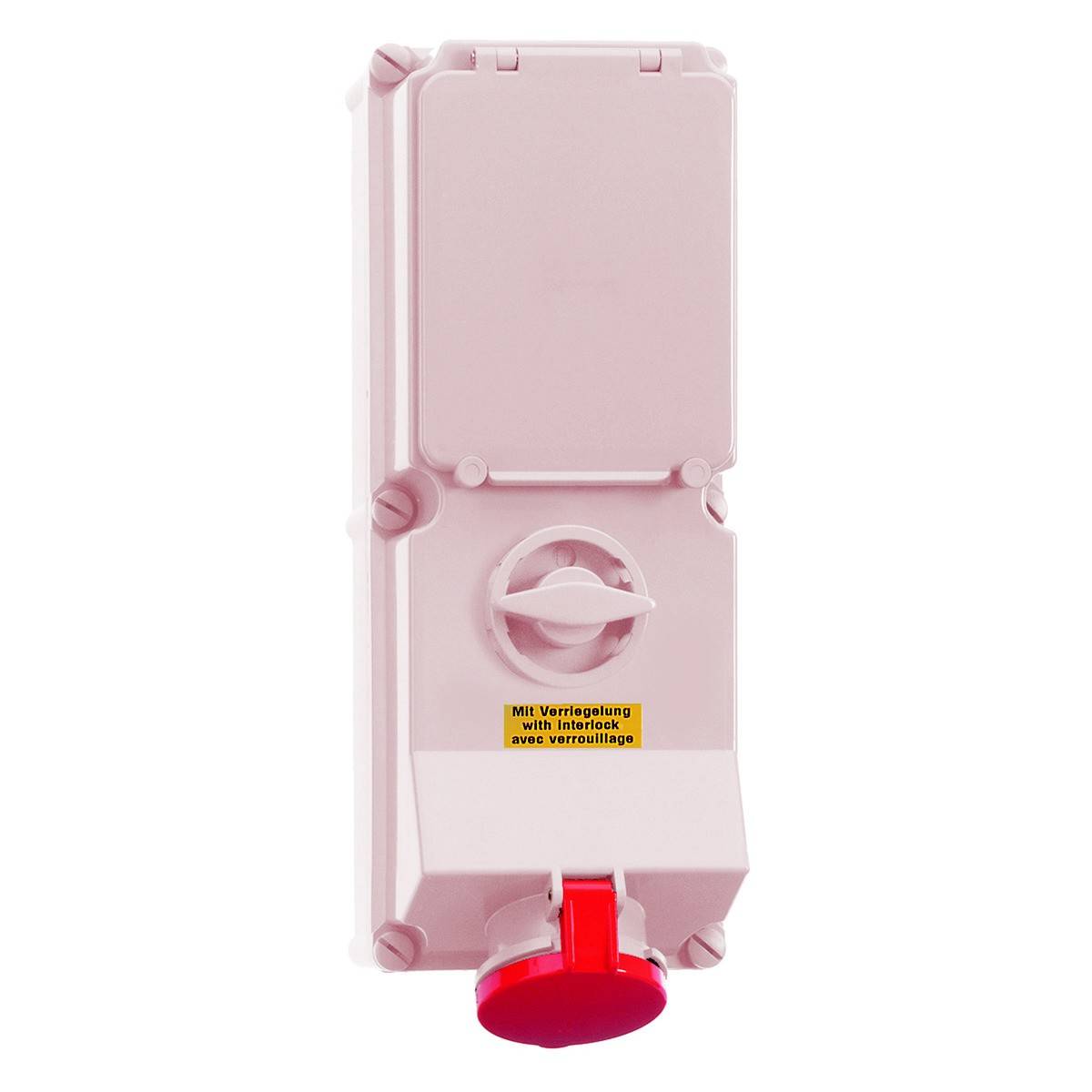

Bals Elektrotechnik 17632 17632 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Auto-secure
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
5
- Type
Lower and upper part
IP44
- Factory colour
Red

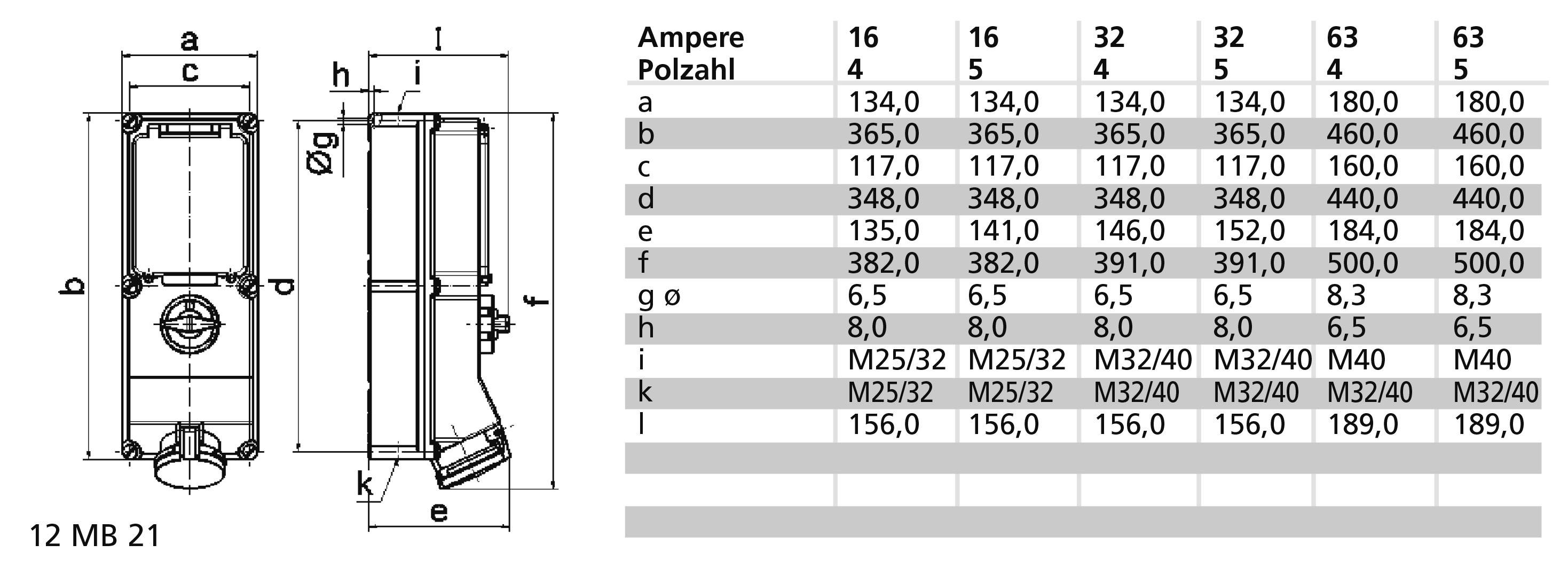

- Dim
(L x W x H) 153 x 134 x 391 mm
- Length
153 mm
- Width
134 mm
- Height
391 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135059 Bals Elektrotechnik 17632 17632 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135059 Bals Elektrotechnik 17632 17632 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket TE switchable, locked, secured
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Auto-secure
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Device color: Light beige upper case section, red hinged lid RAL 3000, light beige lower case section, light beige control flap, pale beige switch knob, pale beige case screws
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7 mm, with integrated circuit breaker C 3-pin
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Auto-secure
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Device color: Light beige upper case section, red hinged lid RAL 3000, light beige lower case section, light beige control flap, pale beige switch knob, pale beige case screws
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7 mm, with integrated circuit breaker C 3-pin
This text is machine translated.
