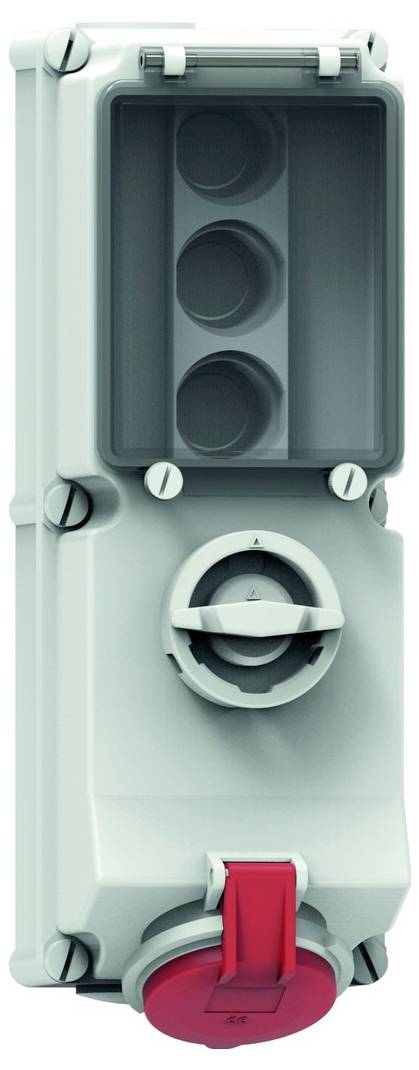

Bals Elektrotechnik 1784 1784 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Design: Lower part and upper part
- Protection type (IP) IP44
- Housing material: Plastic
- D-fuse
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Design of switch: Special switch
- Switch: With on/off switch without locking
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Product type
CEE wall socket
- Features
On/off switch
- Cores
5
- Dim
(L x W x H) 153 x 134 x 384 mm
- Length
153 mm
- Width
134 mm
- Height
384 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546559 Bals Elektrotechnik 1784 1784 CEE wall socket 1 pc(s)
Description
Wall socket TE switchable, protected
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D-fuse
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, housing screws gray RAL 7035, switch knob gray RAL 7035, operating flap smoke topas
Device height: 384 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7mm, a D II 3-pin fuse socket is available under the operating flap
This text is machine translated.
