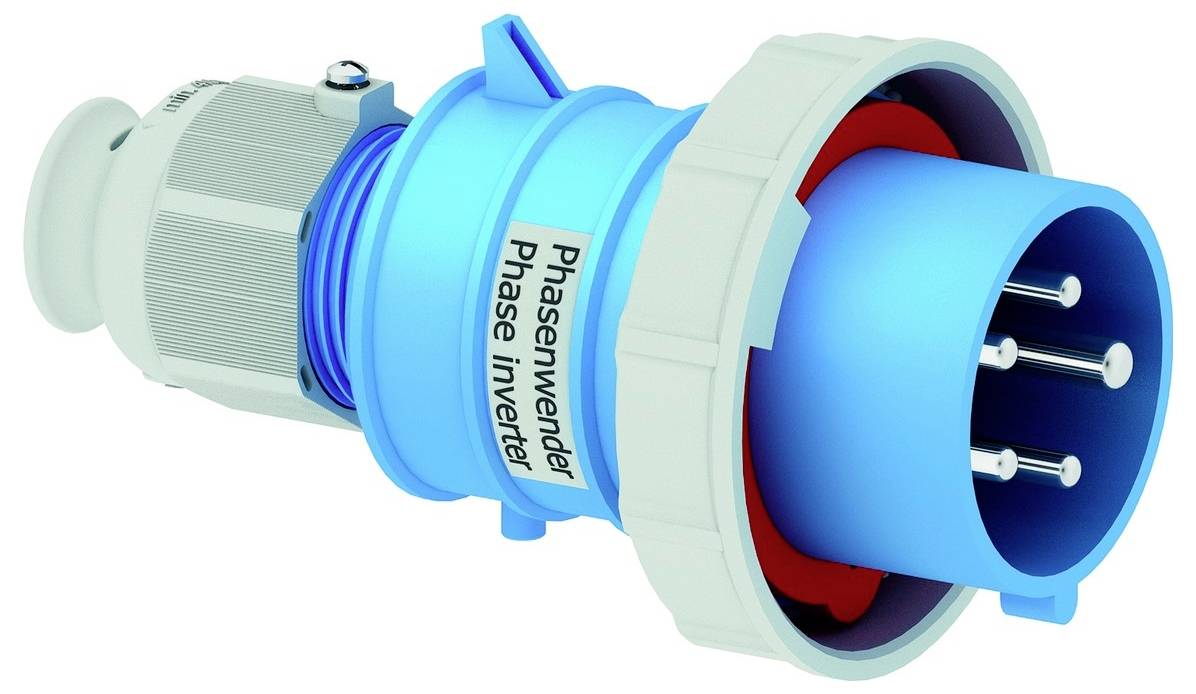

Bals Elektrotechnik 2266 2266 CEE phase inverter 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 5015
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Phase inverter: Yes
- With straight plug
- Product type
CEE phase inverter
- Features
Phase inverter
- Dim
(L x W x H) 87 x 87 x 154 mm
- Length
87 mm
- Width
87 mm
- Height
154 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543433 Bals Elektrotechnik 2266 2266 CEE phase inverter 1 pc(s)
Description
Phase inverter TE
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover blue RAL 5015, collar blue RAL 5015
Device height: 154 mm, device width: 87 mm, device depth: 87 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover blue RAL 5015, collar blue RAL 5015
Device height: 154 mm, device width: 87 mm, device depth: 87 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
