Bals Elektrotechnik 24208 24208 CEE phase inverter 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 5015
- Protection type (IP) IP44
- Design: Other
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Phase inverter: Yes
- Mating direction: Angled
- Product type
CEE phase inverter
- Features
Phase inverter
- Dim
(L x W x H) 126 x 83 x 156 mm
- Length
126 mm
- Width
83 mm
- Height
156 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543931 Bals Elektrotechnik 24208 24208 CEE phase inverter 1 pc(s)
Description

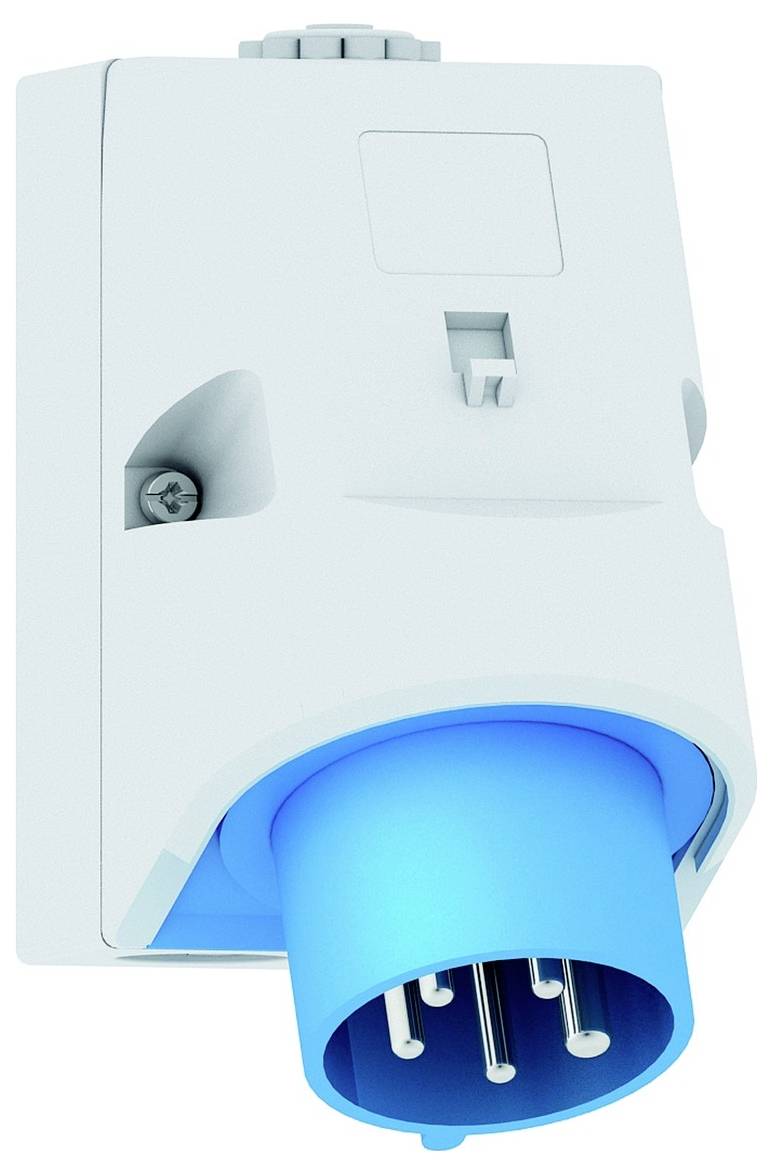

Phase inverter TE as wall-mounted device plug
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar blue RAL 5015
Device height: 156 mm, device width: 83 mm, device depth: 126 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
