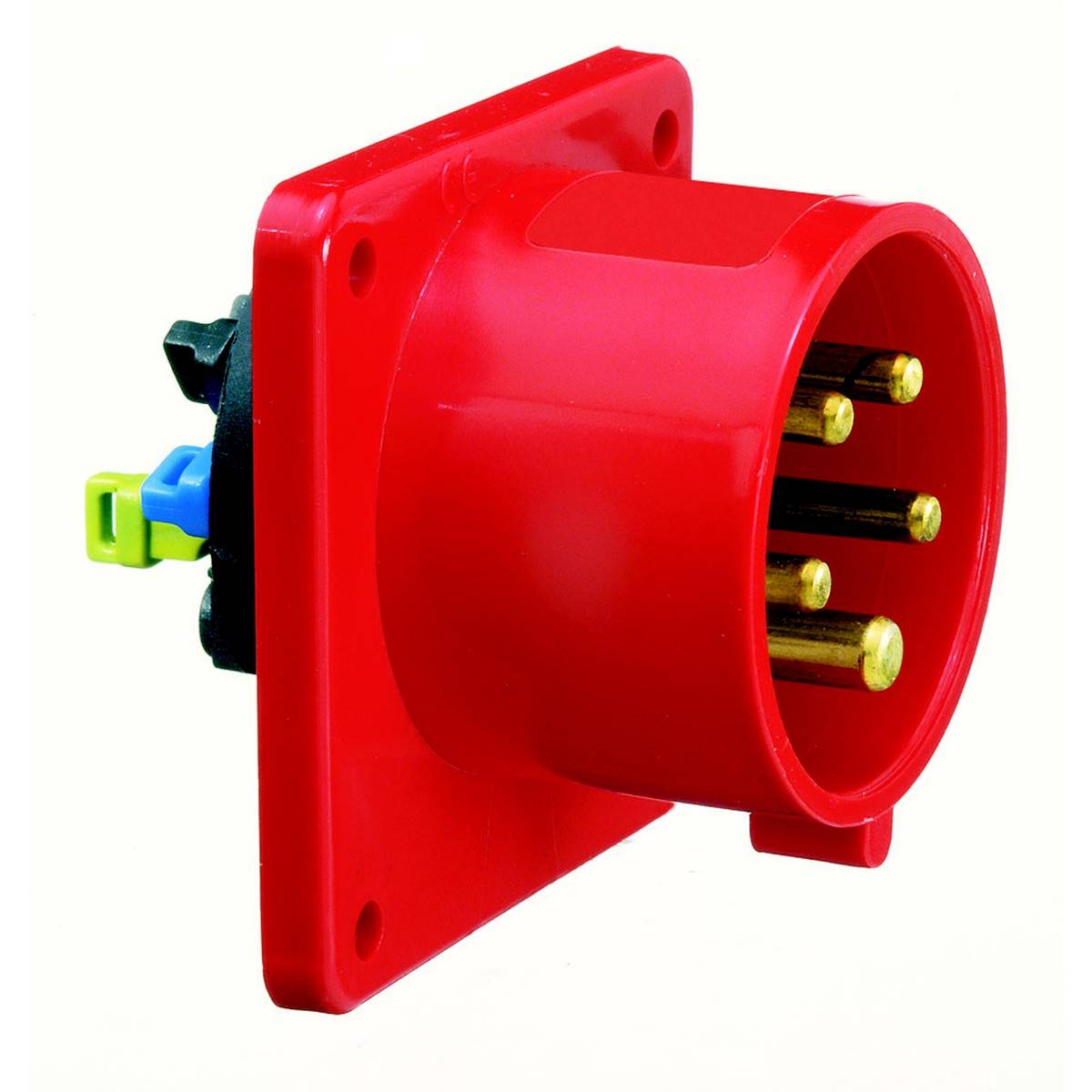

Bals Elektrotechnik 282001 282001 CEE add-on plug 16.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Number of pins: 5
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Design: Connectors on the equipment
- Phase inverter: No.
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
3000
Built-up device plug
5
Plastic
Untreated
16 A
Screw less terminal
Straight
CuZn
IP44
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146889 Bals Elektrotechnik 282001 282001 CEE add-on plug 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146889 Bals Elektrotechnik 282001 282001 CEE add-on plug 16.0 A 5-pin 400 V 1 pc(s)
Description
Flange plug plug QUICK-connect straight
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: Other
Colour: Red housing RAL 3000
Device height: 75 mm, device width: 75 mm, device depth: 96 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical features: A retaining lug must be provided when using this device plug. The mounting hole is offset by 5mm from the flange center
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: Other
Colour: Red housing RAL 3000
Device height: 75 mm, device width: 75 mm, device depth: 96 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical features: A retaining lug must be provided when using this device plug. The mounting hole is offset by 5mm from the flange center
