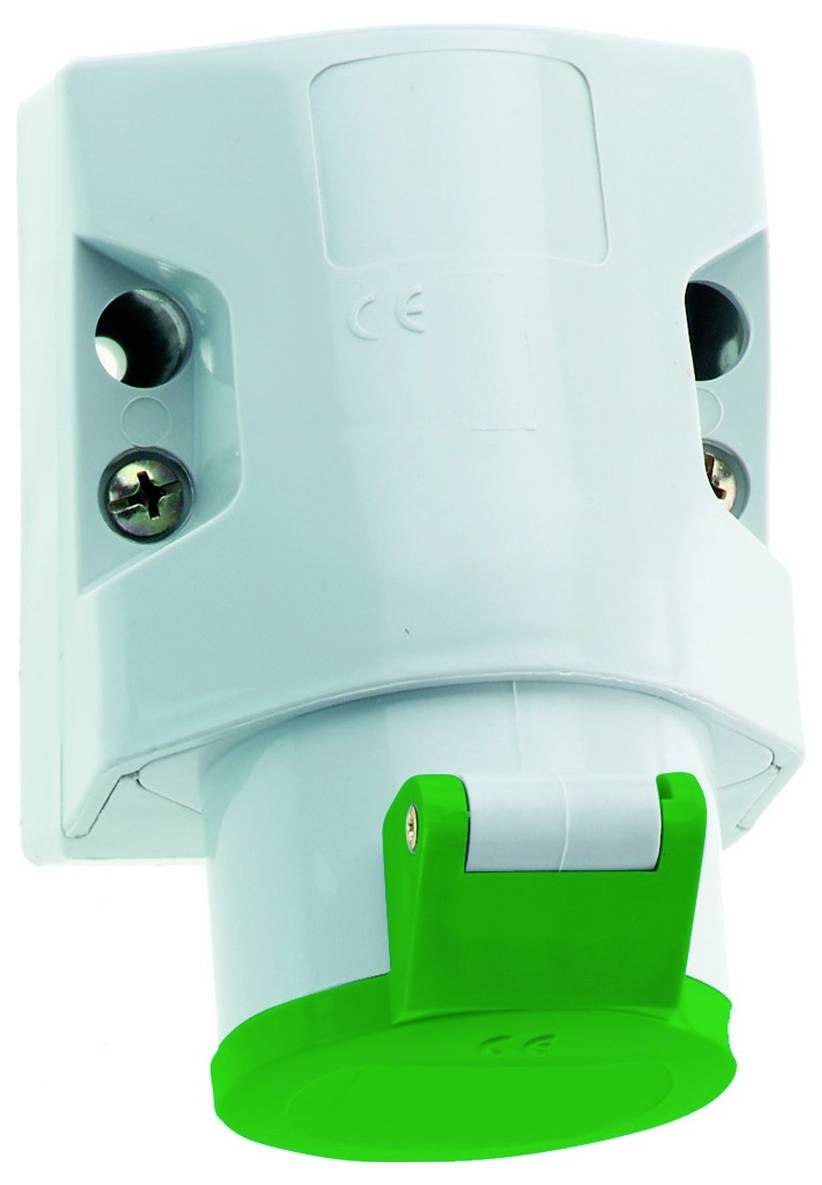

Bals Elektrotechnik 4115 4115 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- Surface-mounted version
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- Mounting method: Outdoor mounting
- IEC current 32 A.
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (400 Hz) green
- Time setting 3 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Factory colour
RAL 6002 (Leaf Green)
- Dim
(W x H) 70 mm x 113 mm
- Width
70 mm
- Height
113 mm
- Content
1 pc(s)
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543426 Bals Elektrotechnik 4115 4115 CEE wall socket 1 pc(s)
Description
Low-voltage wall socket
32A 2p (2P) <50V green 400Hz 3h IP44
Frequency: 400Hz
Technical color: Green RAL 6002
Casing size: 80x70 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Hinged lid green RAL 6002, collar gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035
Device height: 113 mm, device width: 70 mm, device depth: 79 mm
Other technical characteristics: The cable entry is open once
This text is machine translated.
32A 2p (2P) <50V green 400Hz 3h IP44
Frequency: 400Hz
Technical color: Green RAL 6002
Casing size: 80x70 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Hinged lid green RAL 6002, collar gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035
Device height: 113 mm, device width: 70 mm, device depth: 79 mm
Other technical characteristics: The cable entry is open once
This text is machine translated.
