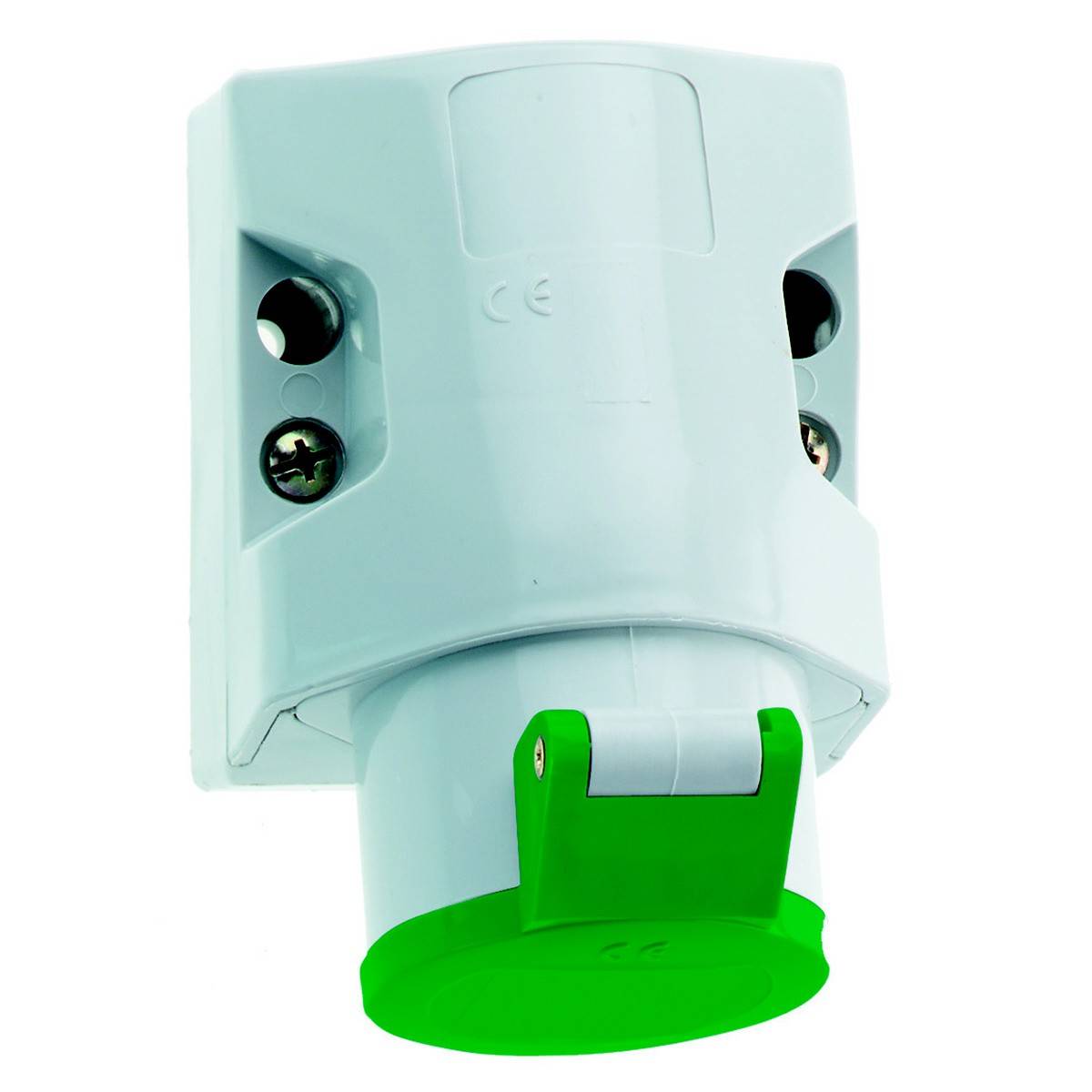

Bals Elektrotechnik 413 413 CEE wall socket 16.0 A 2-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 16 A.
- Number of poles: 2
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (300 Hz) green
- Time setting 2 h
- Colour code: Green
- RAL number: 6002
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Mounting method: Outdoor mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
50 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Surface-mounted
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
2
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
6002
Gland nut
2
TRUE
Plastic
External mounting
Nickel-plated
16 A
Screwed terminal
CuZn
IP44
FALSE
2 h
Green
20-25 V / 40-50 V (300 Hz) green
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147129 Bals Elektrotechnik 413 413 CEE wall socket 16.0 A 2-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147129 Bals Elektrotechnik 413 413 CEE wall socket 16.0 A 2-pin 50 V 1 pc(s)
Description
Low-voltage wall socket
16A 2p (2P) <50V green 300Hz 2h IP44
Frequency: 300Hz
Technical color: Green RAL 6002

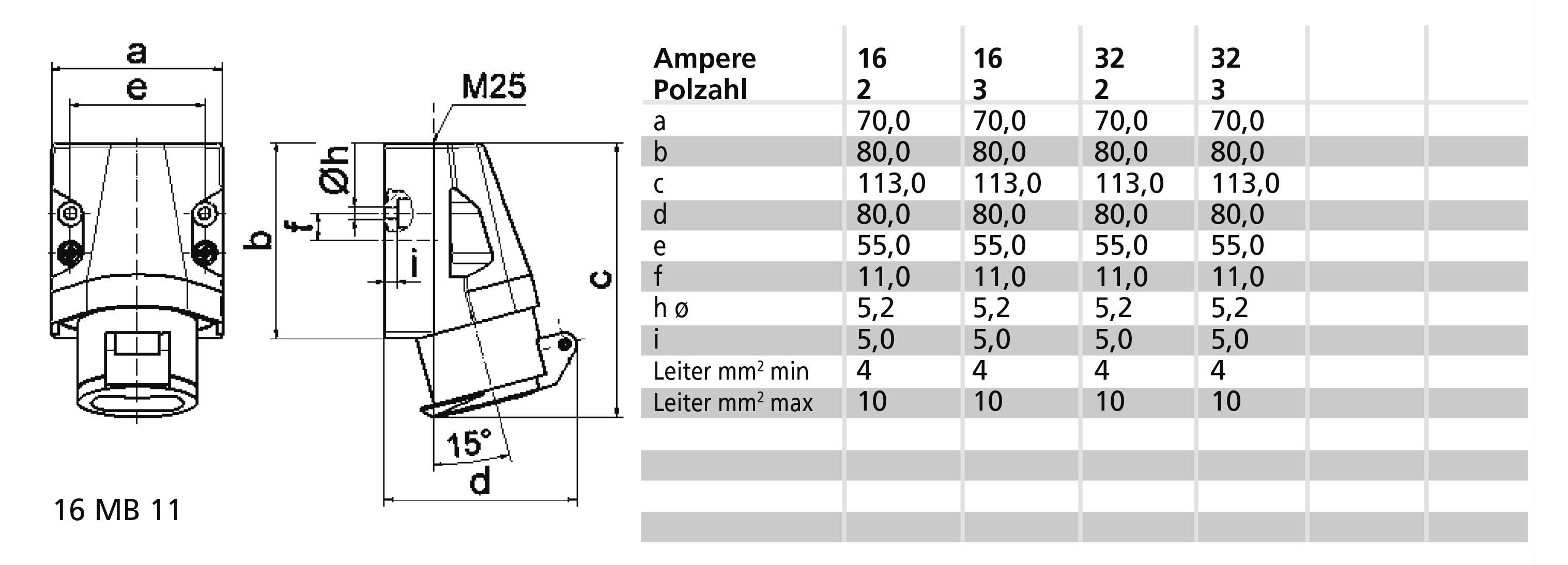

Casing size: 80x70 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Green hinged lid RAL 6002, gray lower part of housing RAL 7035, gray upper part of housing RAL 7035, gray collar RAL 7035
Device height: 113 mm, device width: 70 mm, device depth: 79 mm
Other technical characteristics: The cable entry is open once
This text is machine translated.
16A 2p (2P) <50V green 300Hz 2h IP44
Frequency: 300Hz
Technical color: Green RAL 6002
Casing size: 80x70 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Green hinged lid RAL 6002, gray lower part of housing RAL 7035, gray upper part of housing RAL 7035, gray collar RAL 7035
Device height: 113 mm, device width: 70 mm, device depth: 79 mm
Other technical characteristics: The cable entry is open once
This text is machine translated.
