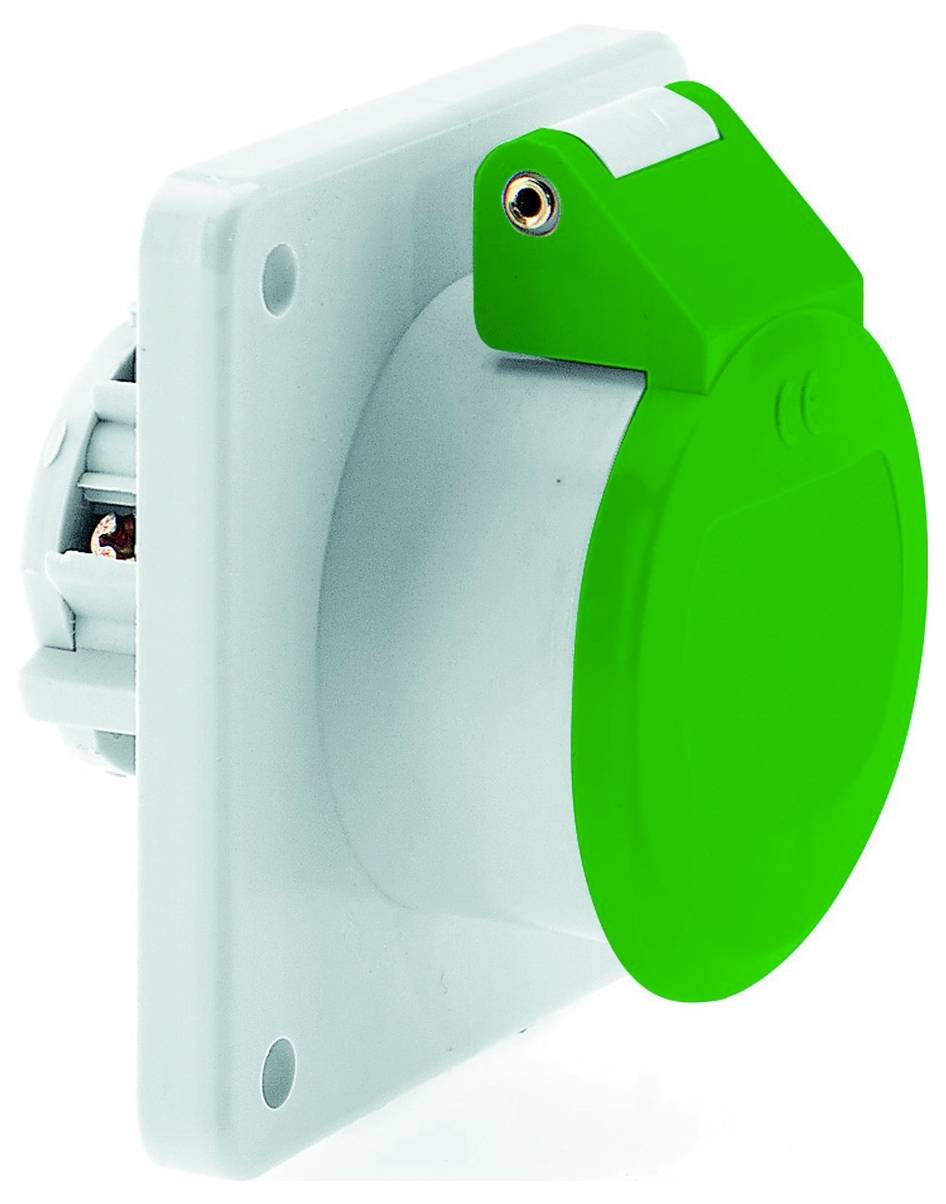

Bals Elektrotechnik 4369 4369 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- IEC current 32 A.
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (400 Hz) green
- Time setting 3 h
- Colour code: Green
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Hole spacing horizontal 60 mm
- Flange size horizontal 75 mm
- Product type
CEE add-on socket
- Dim
(L x W x H) 61 x 75 x 76 mm
- Length
61 mm
- Width
75 mm
- Height
76 mm
- Content
1 pc(s)
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547075 Bals Elektrotechnik 4369 4369 CEE add-on socket 1 pc(s)
Description
Low-voltage straight surface-mount socket
32A 2p (2P) <50V green 400Hz 3h IP44
Frequency: 400Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid green RAL 6002, housing gray RAL 7035
Device height: 76 mm, device width: 75 mm, device depth: 61 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
This text is machine translated.
