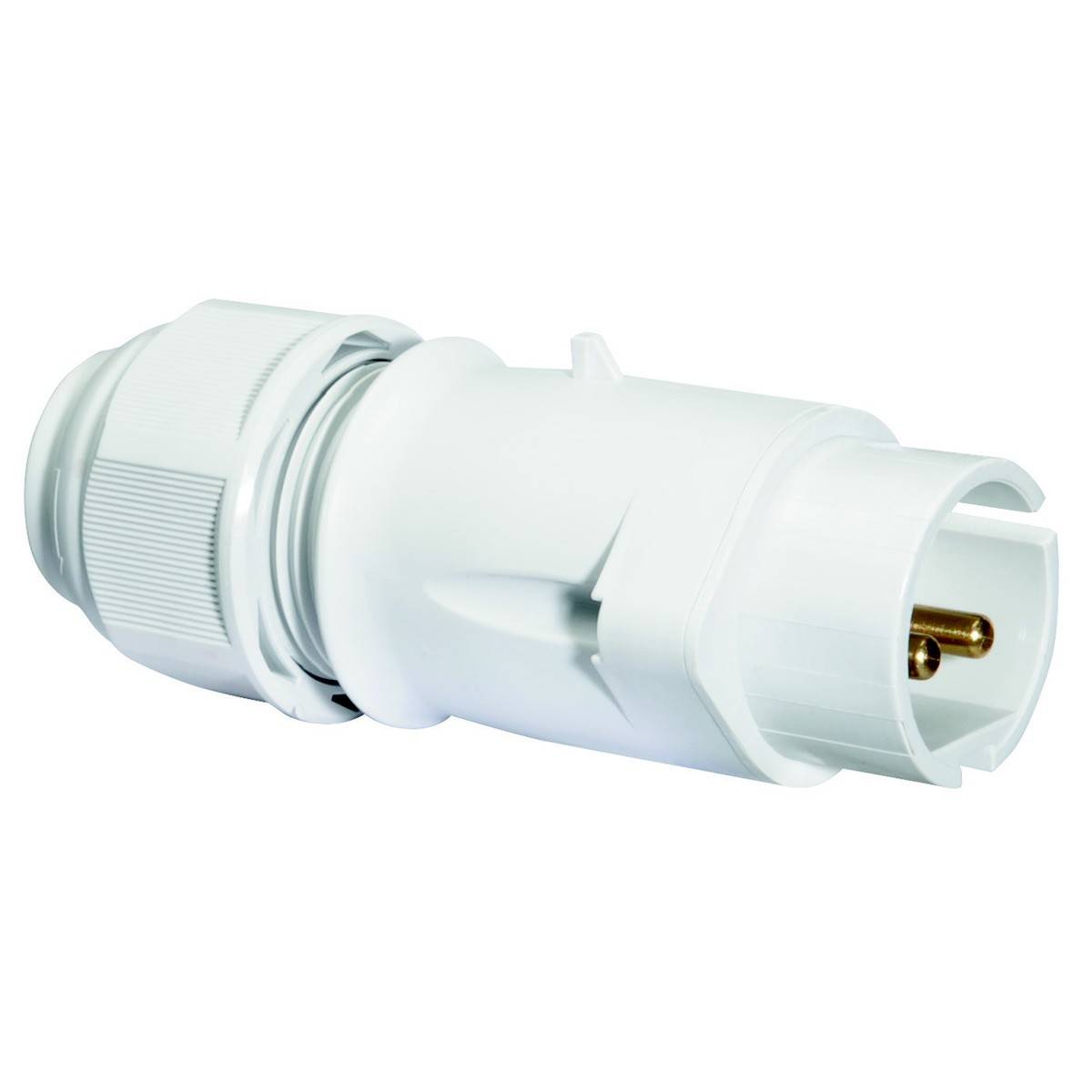

Bals Elektrotechnik 4427 4427 CEE plug 16.0 A 2-pin 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of poles: 2
- Voltage according to EN 60309-2: Other
- Time setting 10 h
- Colour code: Grey
- RAL number: 7035
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
straight
IP44
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
2
- Connection
Screw terminal
- Material (details)
Plastic
7035
Gland nut
2
Plastic
Nickel-plated
16 A
Screwed terminal
Straight
CuZn
IP44
FALSE
10 h
Grey
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146967 Bals Elektrotechnik 4427 4427 CEE plug 16.0 A 2-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146967 Bals Elektrotechnik 4427 4427 CEE plug 16.0 A 2-pin 1 pc(s)
Description
Low-voltage plug
16A 2p (2P) <50V DC 10h IP44
Frequency DC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Grey RAL 7035 housing cover, gray cable gland RAL 7035, gray collar RAL 7035

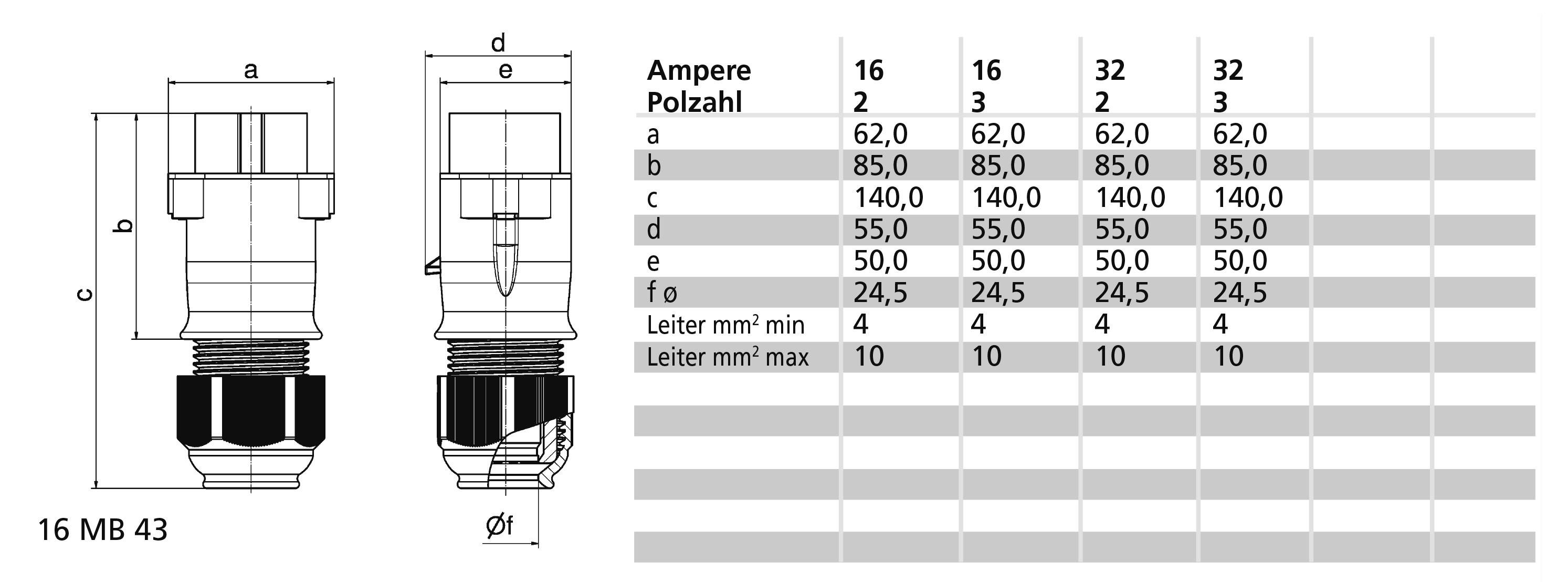

Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
16A 2p (2P) <50V DC 10h IP44
Frequency DC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Grey RAL 7035 housing cover, gray cable gland RAL 7035, gray collar RAL 7035
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
