Buy Bals Elektrotechnik 5350 Socket splitter Black

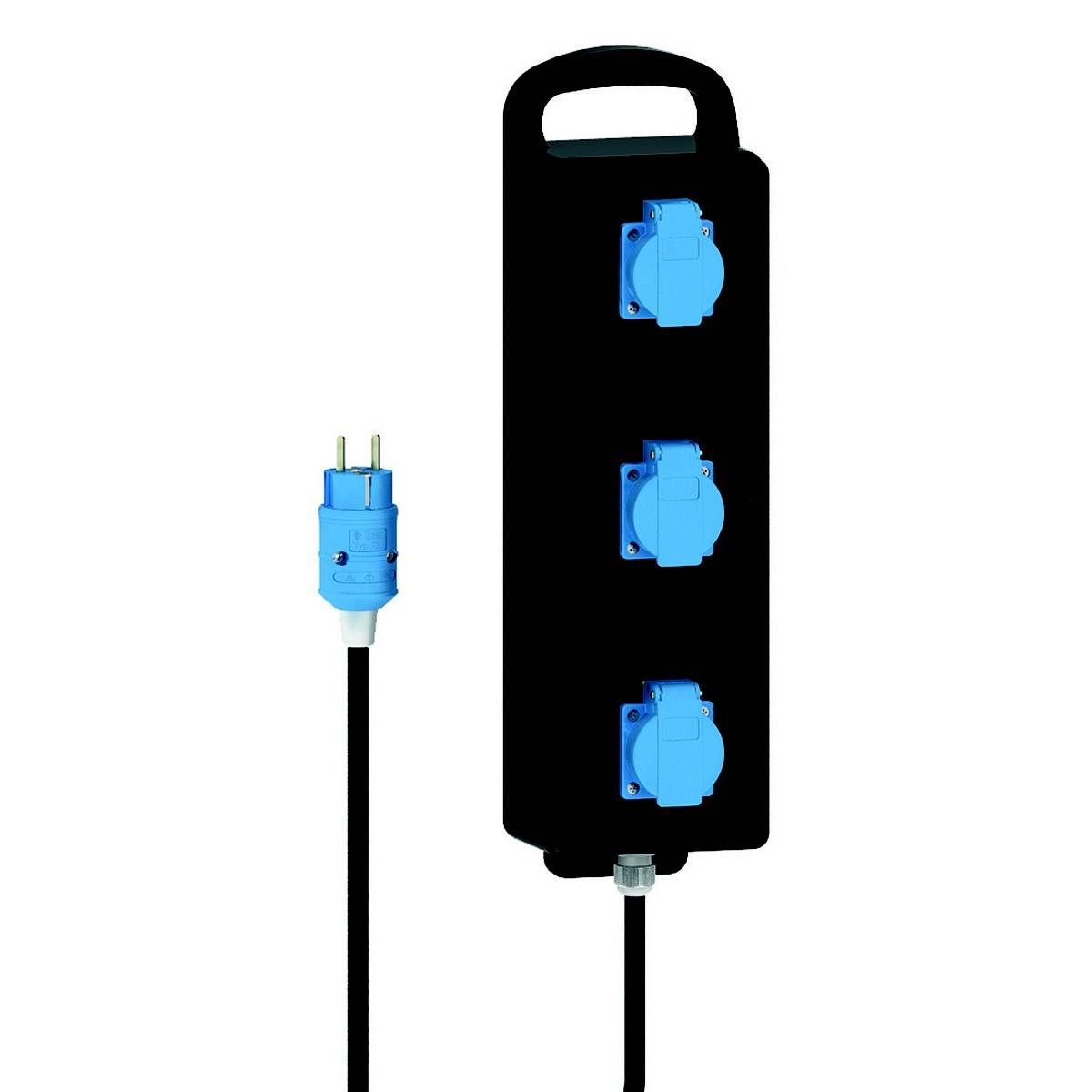

Black multi-socket extension with handle, equipped with three blue sockets and a black cable with blue plug.

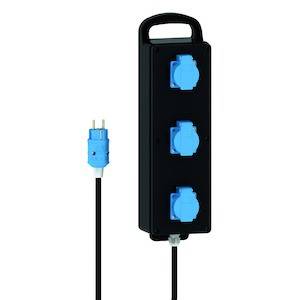

A black triple socket block with a blue plug and long cable, suitable for indoor and outdoor use.

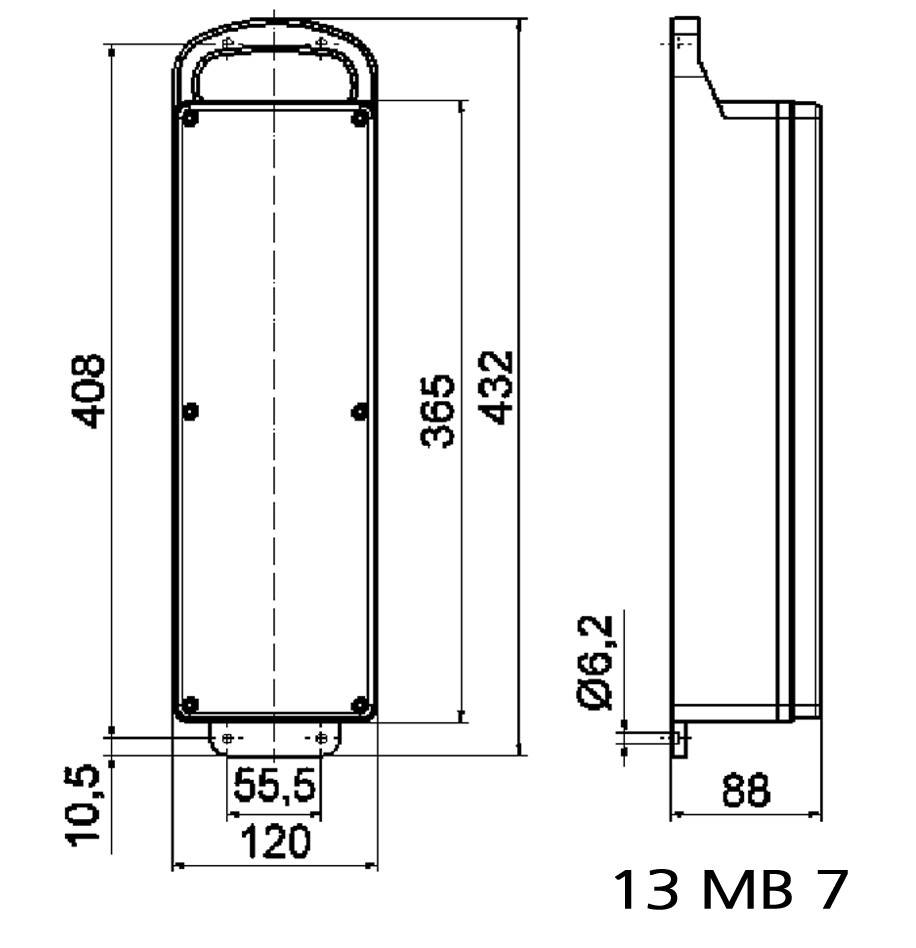

Technical drawing of a rectangular component with dimensions: Height 432 mm, Width 120 mm. Side view with Ø6.2 mm diameter.

1/3

Bals Elektrotechnik

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

CEE socket - 16 A: Without
CEE socket - 32 A: Without
CEE socket - 63 A: Without
CEE socket - 125A: Without
Number of Schuko sockets: 3
Security: Without
FI-circuit breaker: Without
Material of housing: Rubber
Feed/connection options: Feed with connector
Type of mains connection: Schuko
Cable length: 2 m
Handling: Portable
Protection type (IP) IP44
Military version: No.
Colour, black
Height: 88 mm
Width 365 mm
Depth: 120 mm

Product type: Socket splitter

: IP44

Factory colour: Black

Dim: (W x H x D) 365.00 x 88.00 x 120.00 mm

Width: 365.00 mm

Height: 88.00 mm

Depth: 120.00 mm

Material: Rubber

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3146448 Bals Elektrotechnik 5350 Socket splitter Black

User & Safety Instructions

User & Safety Instructions 3146448 Bals Elektrotechnik 5350 Socket splitter Black

Description

Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 88 mm, device width: 365 mm, device depth: 120 mm
RDF Factor: 1
INA 16
Equipment:
3 x earthing contact socket-outlet 16A 230V IP 54
Security/Protection measure:
None
Cable entry/connection possibility:
SAFETY CONTACT PLUG 16A 230V IP 44
With 2m cable H07RN-F3G2.5
Additional Information:
Wired as ready to connect
Structure according to Z-No. Z131129
