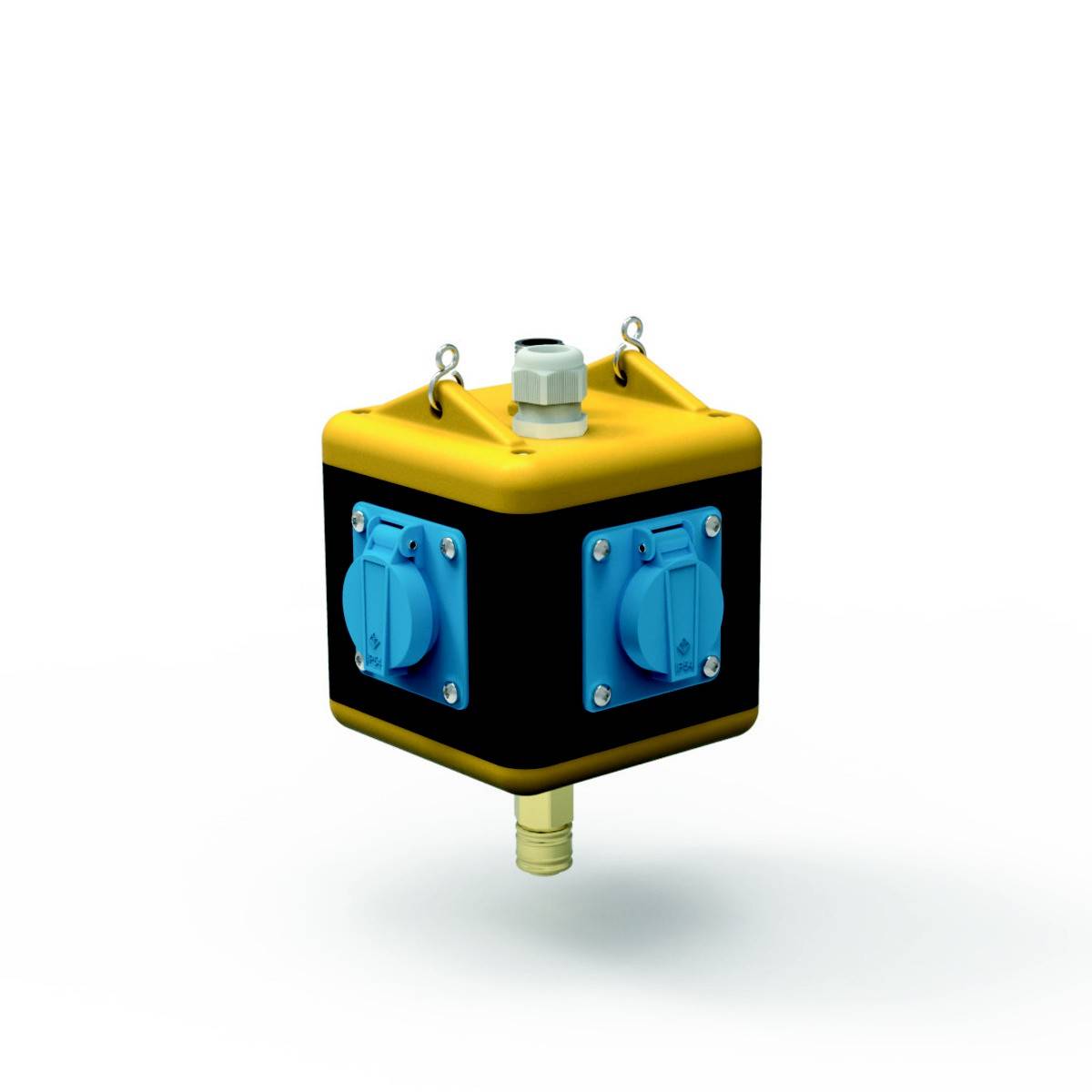

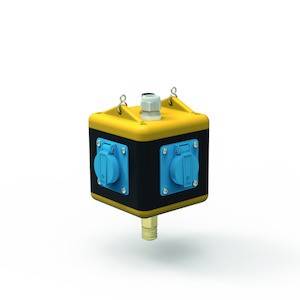

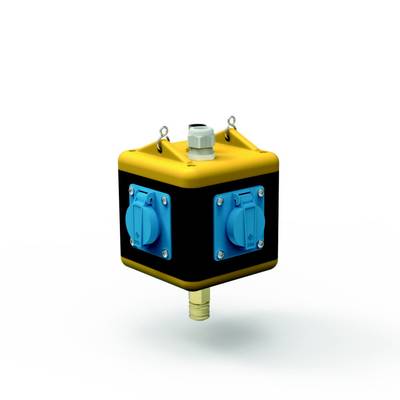

Bals Elektrotechnik 57119 Socket cube Black
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- Other fixtures and/or empty spaces: 1
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection options: 1 line (stub cable)
- Diameter entrance: M25
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black

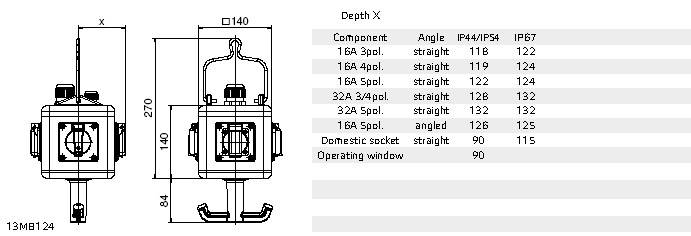

- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
Socket cube
IP44
- Factory colour
Black
- Dim
(W x H x D) 140.00 x 140.00 x 140.00 mm
- Width
140.00 mm
- Height
140.00 mm
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145110 Bals Elektrotechnik 57119 Socket cube Black
User & Safety Instructions
User & Safety Instructions 3145110 Bals Elektrotechnik 57119 Socket cube Black
Description
UNI - Block, depending
Protection class: IP44
Case:
Impact resistant solid rubber housing
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
1 x compressed air connection consisting of
Access: 1/2"
Tube with external thread
Exit: 1/2"
Rapid coupling
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired to the clamping ring
(Three-phase wiring).
This text is machine translated.
Protection class: IP44
Case:
Impact resistant solid rubber housing
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
1 x compressed air connection consisting of
Access: 1/2"
Tube with external thread
Exit: 1/2"
Rapid coupling
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired to the clamping ring
(Three-phase wiring).
This text is machine translated.
