Bals Elektrotechnik 571370 Socket cube Black
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Other fixtures and/or empty spaces: 8
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection possibility: Other
- Diameter cable inlet: M20
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black

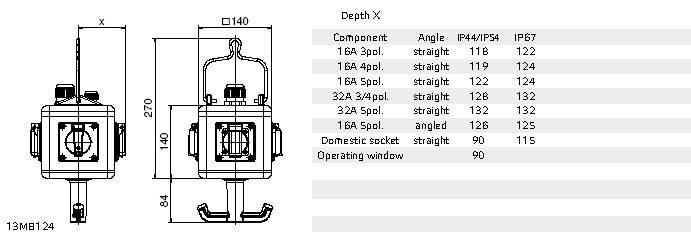

- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
Socket cube
IP44
- Factory colour
Black
- Dim
(W x H x D) 140.00 x 140.00 x 140.00 mm
- Width
140.00 mm
- Height
140.00 mm
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146552 Bals Elektrotechnik 571370 Socket cube Black
User & Safety Instructions
User & Safety Instructions 3146552 Bals Elektrotechnik 571370 Socket cube Black
Description

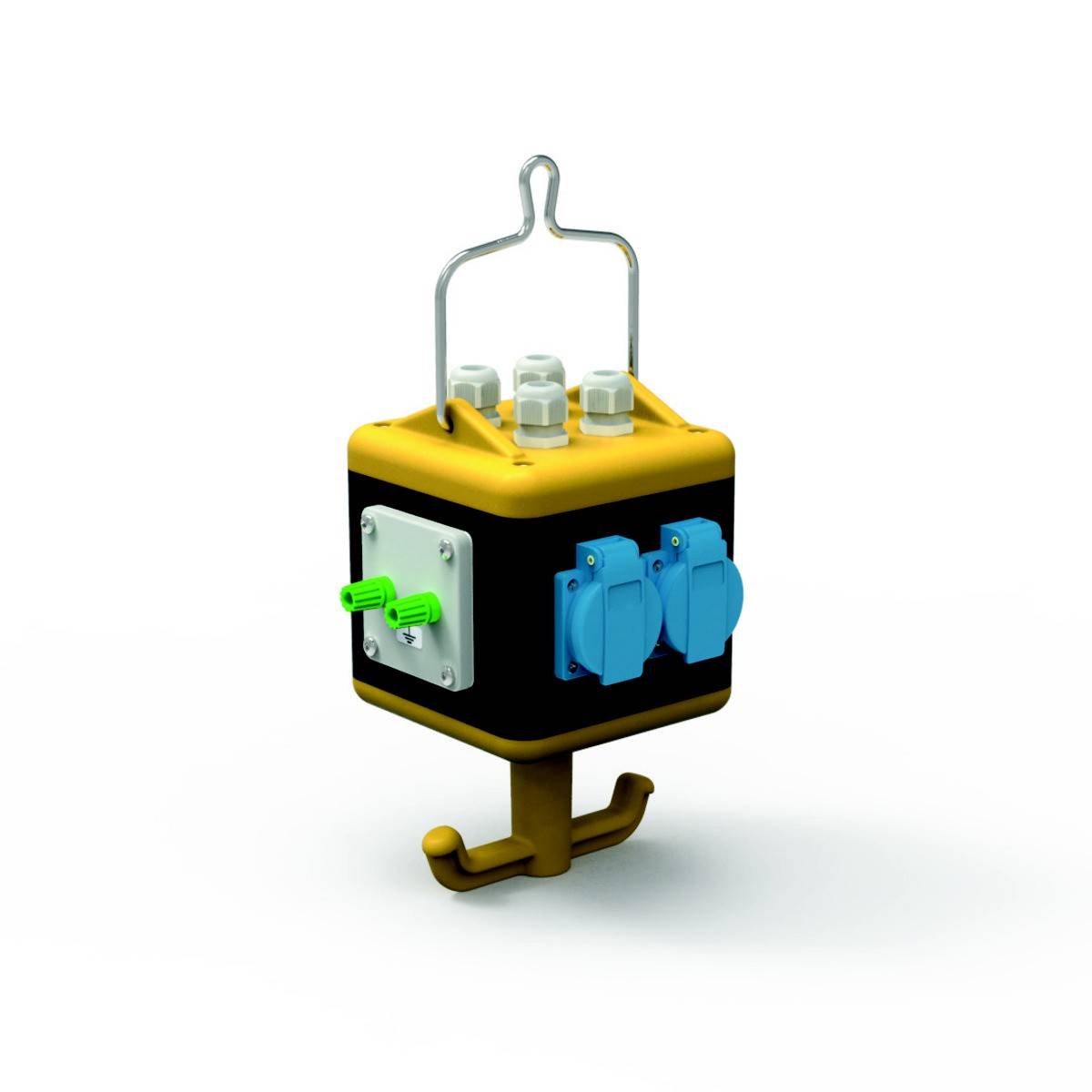

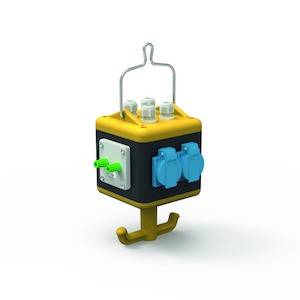

UNI - Block, dependent Protection type: IP44 Housing: High-quality, impact-resistant solid rubber housing with hanger and grip hook Device color: Lower case section black similar to RAL 9017, upper part yellow similar to RAL 1021 Device height: 140 mm, device width: 140 mm, device depth: 140 mm Mounting: 2 x earthing contact socket-outlet 16A 230V, 2 x laboratory sockets yellow/green-earth with sticker 2 x laboratory sockets blue DC-low voltage With sticker 2 x laboratory jack red direct current - small. With sticker 2 x laboratory socket yellow AC-small. Safety/protection measure: Without cable entry/connection possibility: 4 x M20 top with screw connection Additional information: Distributor with seal. The PE and extra-low voltage supply lines provided by the user are connected directly to the laboratory sockets by wiring them into the clamping ring (AC supply line).
