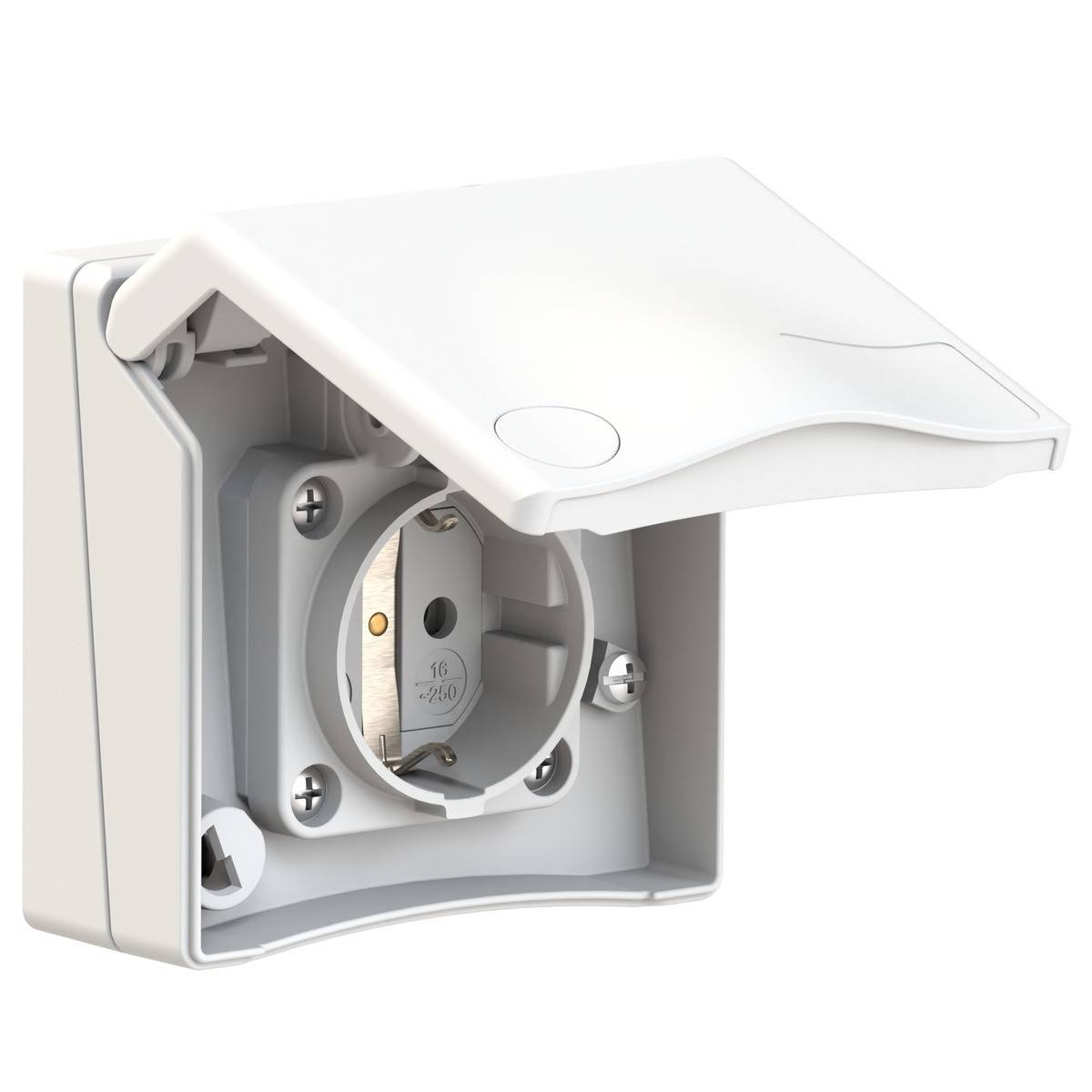

Bals Elektrotechnik 71010 Add-on socket incl. lid IP44
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- With hinged cover: Yes
- Protection type (IP) IP44
- With straight plug
- Connection technology: Screw less terminal
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- Product type
Add-on socket
- Light bulb features
incl. lid
- Nominal voltage
250 V
- Flange dimensions
90 mm
IP44
- Dim
(W x H x D) 90 x 90 x 64 mm
- Width
90 mm
- Height
90 mm
- Depth
64 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Clamp
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3145885 Bals Elektrotechnik 71010 Add-on socket incl. lid IP44
User & Safety Instructions
User & Safety Instructions 3145885 Bals Elektrotechnik 71010 Add-on socket incl. lid IP44
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable entry: Other
System: German System - Type F.
Colour: White similar to RAL 9016

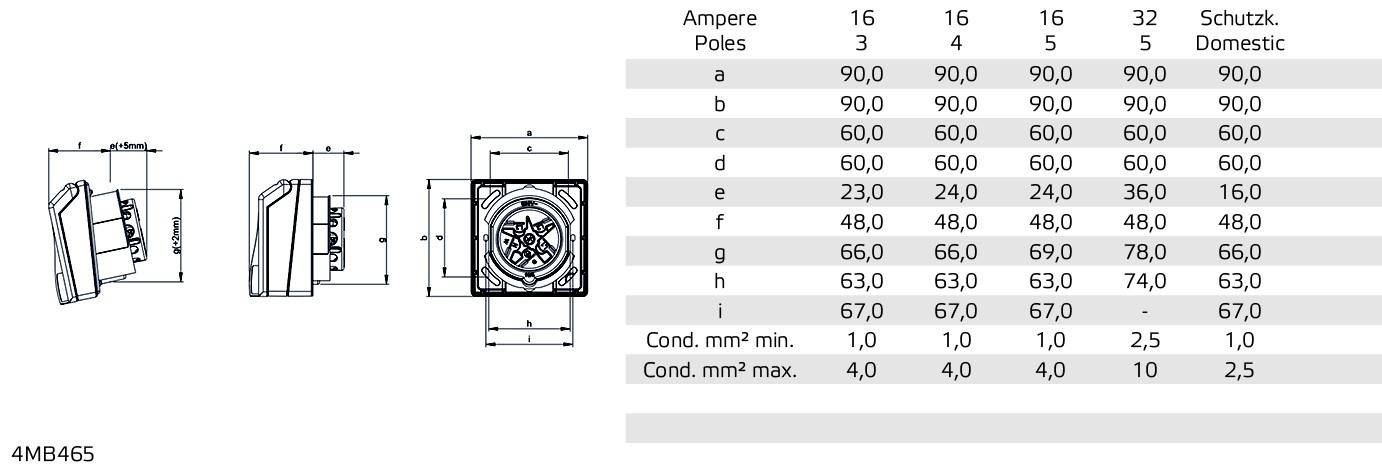

Device height: 90 mm, device width: 90 mm, device depth: 64 mm
Flange size vertical 90 mm, flange dimension horizontal 90 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical features: The connection is rearward, architecture program TH, suitable for mounting in cable duct, hinged lid with labeling field (optional: Locking lock)
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable entry: Other
System: German System - Type F.
Colour: White similar to RAL 9016
Device height: 90 mm, device width: 90 mm, device depth: 64 mm
Flange size vertical 90 mm, flange dimension horizontal 90 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical features: The connection is rearward, architecture program TH, suitable for mounting in cable duct, hinged lid with labeling field (optional: Locking lock)
This text is machine translated.
