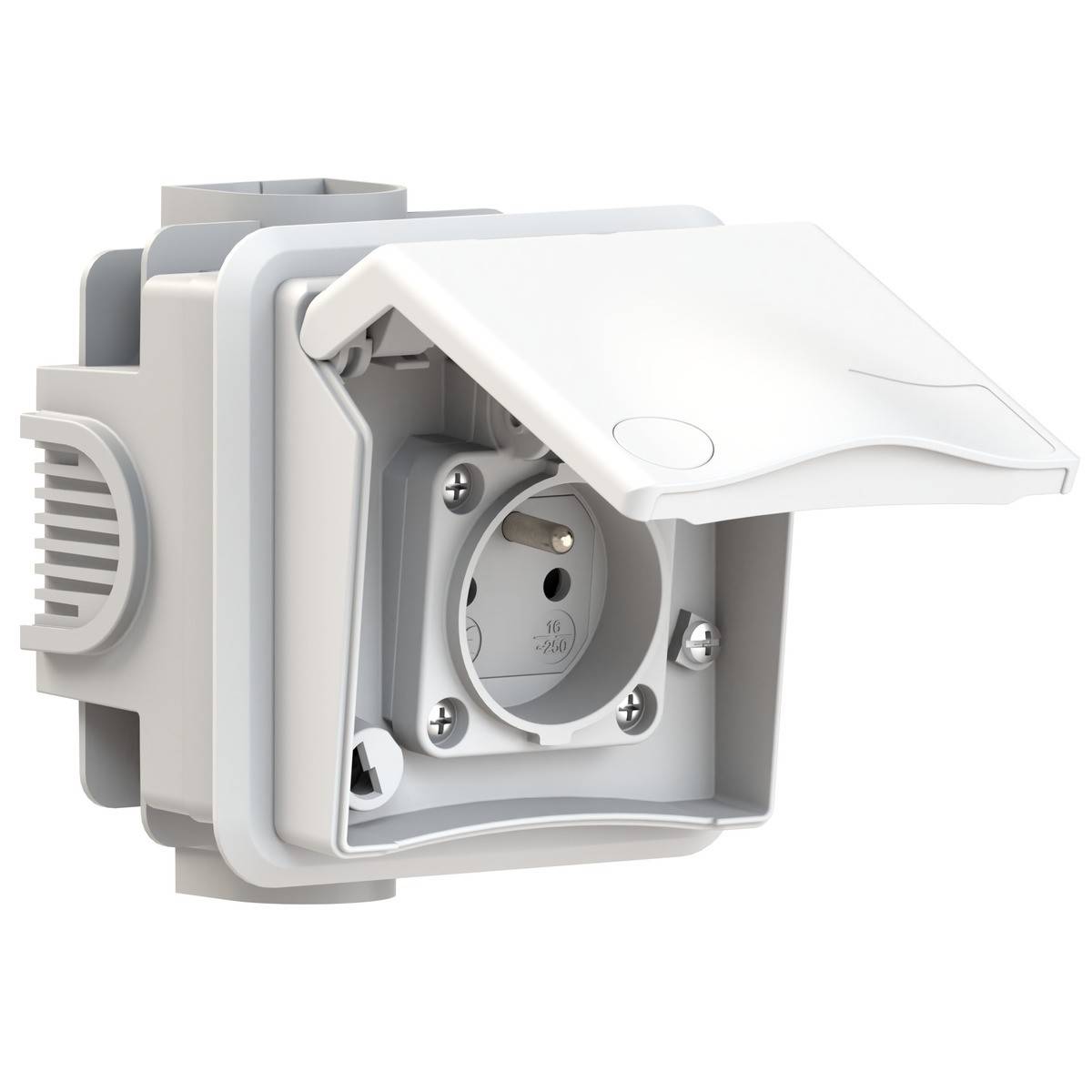

Bals Elektrotechnik 71013 Flush-mount socket IP44
EAN:
Part number:
Item no:
Technical specifications
- Flush-mounted version
- IEC current 16 A.
- Number of poles: 3
- Voltage according to EN 60309-2: Other
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
Flush-mount socket
- Outlets
1
- Mounting type
Flush mount
IP44
- Dim
(W x H x D) 105 x 115 x 99 mm
- Width
105 mm
- Height
115 mm
- Depth
99 mm
- Type
Flush-mounted
- Content
1 pc(s)
- Connection
Clamp
- Material (details)
Plastic
- Number of pins
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3145915 Bals Elektrotechnik 71013 Flush-mount socket IP44
User & Safety Instructions
User & Safety Instructions 3145915 Bals Elektrotechnik 71013 Flush-mount socket IP44
Description
Flush-mounted socket
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable entry: Other
System: Belgian/French system - Type E.
Colour: White similar to RAL 9016

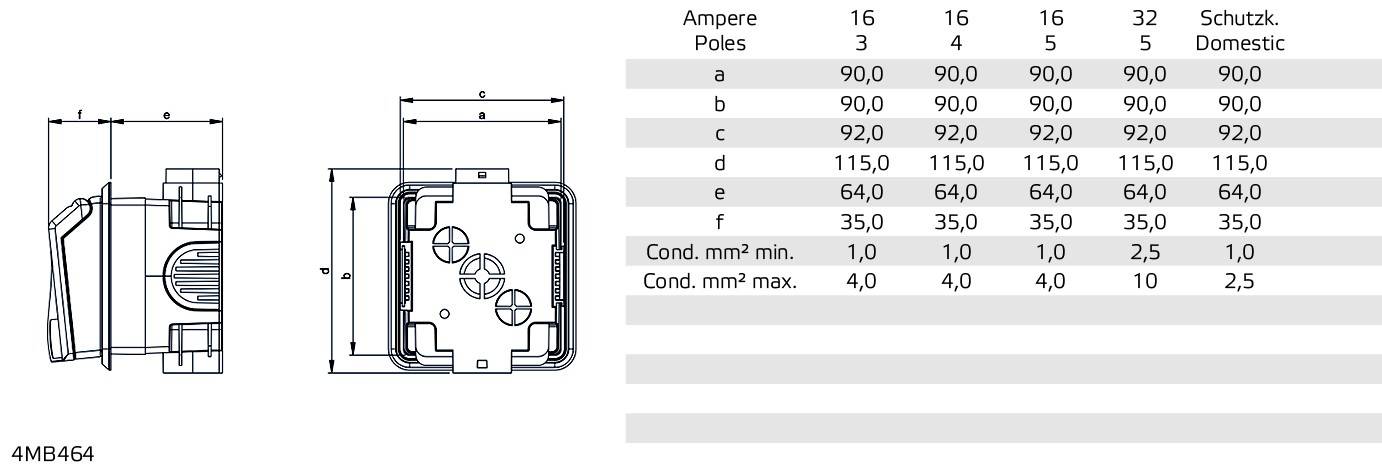

Device height: 115 mm, device width: 105 mm, device depth: 99 mm
Other technical features: Flush mounting (incl. flush-mounted socket box), architecture program TH, hinged lid with labeling field (optional: Locking lock), With center contact Belgian/French system
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable entry: Other
System: Belgian/French system - Type E.
Colour: White similar to RAL 9016
Device height: 115 mm, device width: 105 mm, device depth: 99 mm
Other technical features: Flush mounting (incl. flush-mounted socket box), architecture program TH, hinged lid with labeling field (optional: Locking lock), With center contact Belgian/French system
This text is machine translated.
