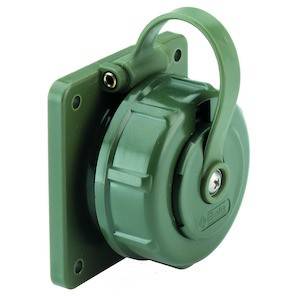

Bals Elektrotechnik 7108 Add-on socket IP68 Green
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Flange dimensions 75 x 75 mm
- With hinged cover: Yes
- Protection class (IP) IP68
- With straight plug
- Connection technology: Screw terminal
- Colour: green
- RAL number: 6031
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- For "difficult conditions" (according to VDE): No.
- Product type
Add-on socket
- Outlets
1
- Nominal voltage
250 V
- Mounting type
Surface-mount
- Flange dimensions
75x75 mm
- Factory colour
Green
IP68
- Dim
(W x H x D) 75 x 75 x 78 mm
- Width
75 mm
- Height
75 mm
- Depth
78 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147052 Bals Elektrotechnik 7108 Add-on socket IP68 Green
User & Safety Instructions
User & Safety Instructions 3147052 Bals Elektrotechnik 7108 Add-on socket IP68 Green
Description

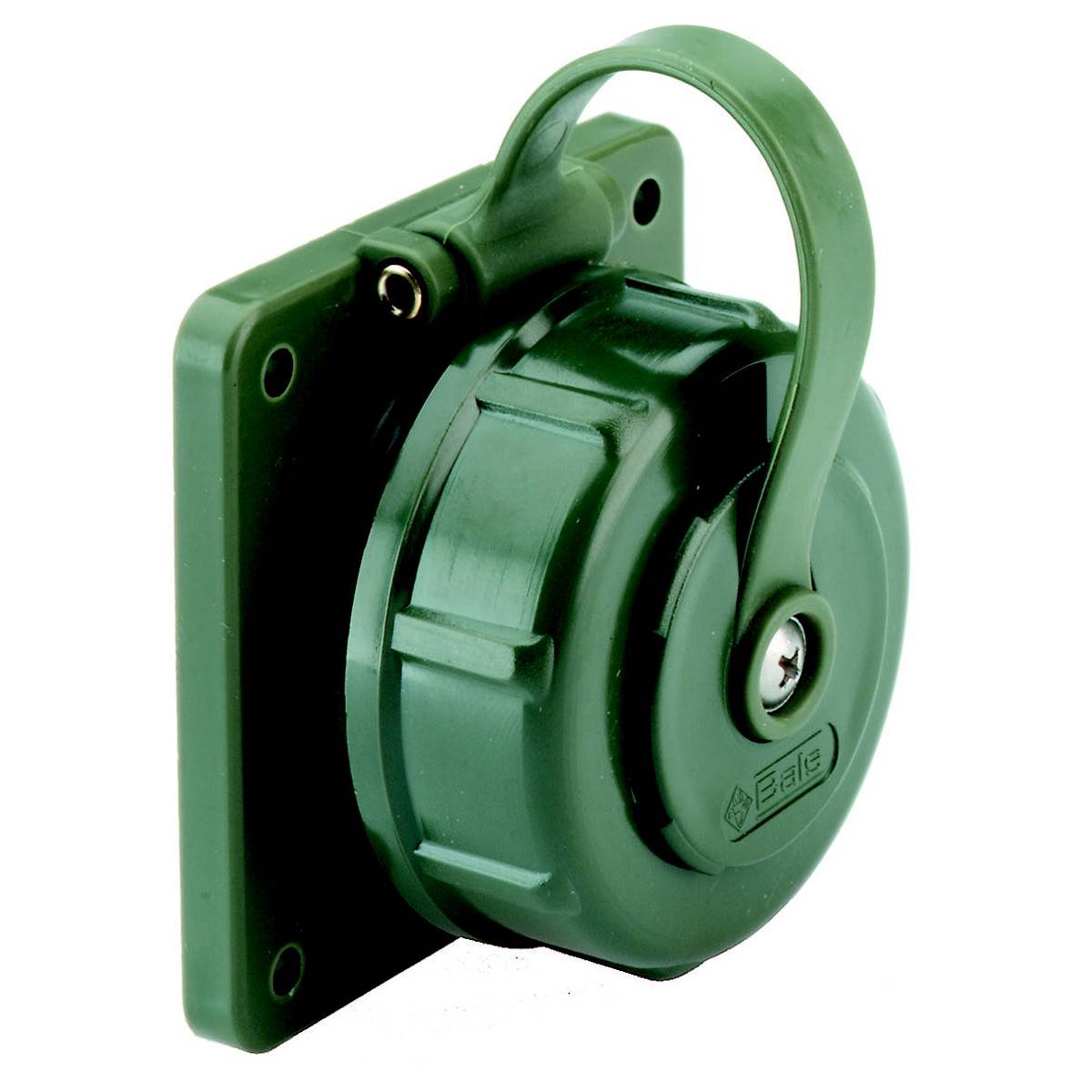

Earthing contact surface-mounted socket, straight TN design
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9
Device height: 75 mm, device width: 75 mm, device depth: 78 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: Yes
Other technical features: The connector is rearward, with German system, The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96926 AS 001, supply no.: 5935-12-312-5115
This text is machine translated.
