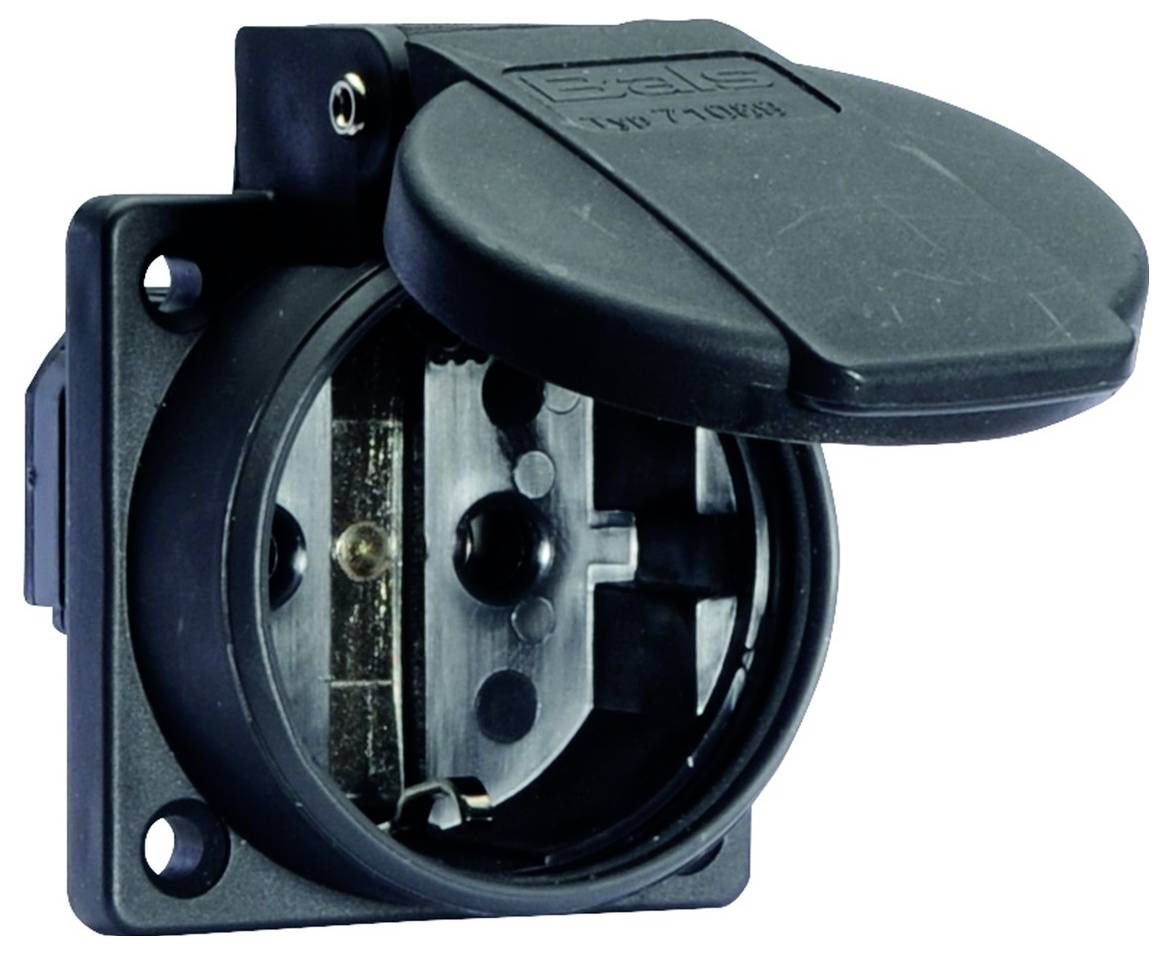

Bals Elektrotechnik 71089 Add-on socket incl. lid, Child safety
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- Colour, black
- RAL number: 9005
- Protection class (IP) IP54
- Nominal voltage: 250 V
- Nominal current: 16 A
- With hinged cover: Yes
- Halogen-free: Yes
- Material quality: Thermoplastic
- Connection technology: Screw terminal
- With straight plug
- Flange size 50 x 50 mm
- Product type
Add-on socket
- Light bulb features
incl. lid
Child safety
- Outlets
1
- Mounting type
Surface-mount
- Flange dimensions
50 mm
- Dim
(W x H x D) 50 x 61.5 x 54 mm
- Width
50 mm
- Height
61.5 mm
- Depth
54 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549439 Bals Elektrotechnik 71089 Add-on socket incl. lid, Child safety
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
Colour: Hinged lid black RAL 9005, black housing RAL 9005
Device height: 61.5 mm, device width: 50 mm, device depth: 54.5 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: True
Other technical features: For use in portable distribution systems, The connector is backwards with German system
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
Colour: Hinged lid black RAL 9005, black housing RAL 9005
Device height: 61.5 mm, device width: 50 mm, device depth: 54.5 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: True
Other technical features: For use in portable distribution systems, The connector is backwards with German system
This text is machine translated.
