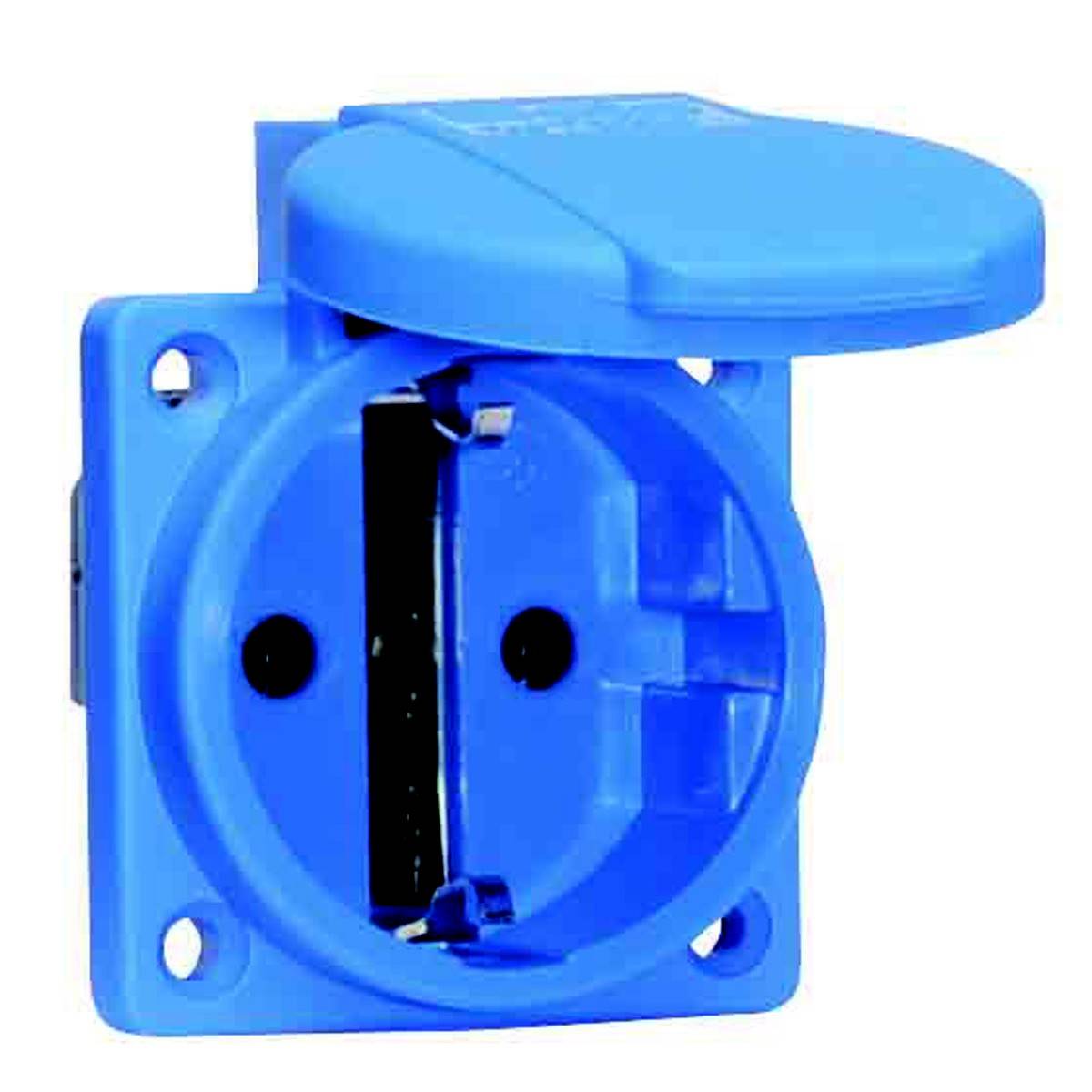

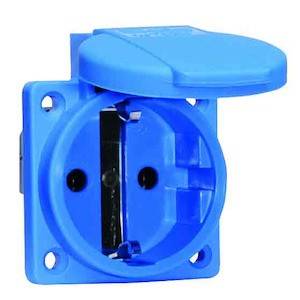

Bals Elektrotechnik 71094 71094 CEE add-on socket 16.0 A 3-pin 250 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Flange size 50 x 50 mm
- With hinged cover: Yes
- Protection class (IP) IP54
- With straight plug
- Connection technology: Screw terminal
- Colour : blue
- RAL number: 5015
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- For ""difficult conditions""" (according to VDE): Yes
- Product type
CEE add-on socket
- Nominal voltage
250 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type B
CEE plug
- Type
EARTHING CONTACT
IP54
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3145875 Bals Elektrotechnik 71094 71094 CEE add-on socket 16.0 A 3-pin 250 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145875 Bals Elektrotechnik 71094 71094 CEE add-on socket 16.0 A 3-pin 250 V 1 pc(s)
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
Colour: Blue housing RAL 5015, blue flap lid RAL 5015

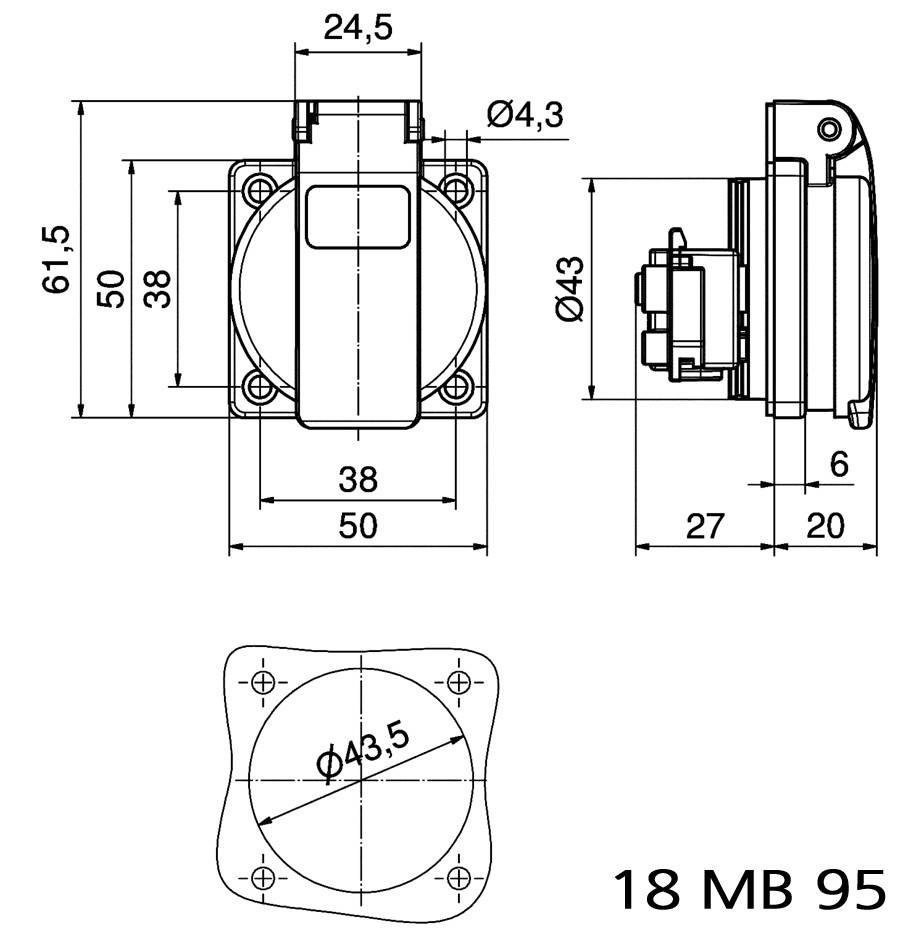

Device height: 61.5 mm, device width: 50 mm, device depth: 47.5 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connector is rearward, with German system, For use in fixed distribution systems
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
Colour: Blue housing RAL 5015, blue flap lid RAL 5015
Device height: 61.5 mm, device width: 50 mm, device depth: 47.5 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connector is rearward, with German system, For use in fixed distribution systems
This text is machine translated.
