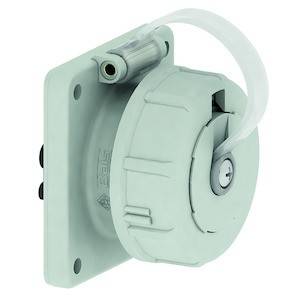

Bals Elektrotechnik 7119 Add-on socket IP68 Grey
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Flange dimensions 75 x 75 mm
- With hinged cover: Yes
- Protection class (IP) IP68
- With straight plug
- Connection technology: Screw terminal
- Colour: grey
- RAL number: 7035
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- For "difficult conditions" (according to VDE): Yes
- Product type
Add-on socket
- Nominal voltage
250 V
- Factory colour
Grey
IP68
- Dim
(W x H x D) 75 x 75 x 78 mm
- Width
75 mm
- Height
75 mm
- Depth
78 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
16 A
250 V
Grey
TRUE
7035
TRUE
Thermoplastic
3
Plastic
Screwed terminal
Straight
IP68
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147008 Bals Elektrotechnik 7119 Add-on socket IP68 Grey
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 75 mm, device width: 75 mm, device depth: 78 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: Yes
Other technical features: The connector is located at the rear, with a hammer symbol. The bayonet cover is attached to the housing by a fastening strap
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 75 mm, device width: 75 mm, device depth: 78 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: Yes
Other technical features: The connector is located at the rear, with a hammer symbol. The bayonet cover is attached to the housing by a fastening strap
This text is machine translated.
