Bals Elektrotechnik 712 Add-on socket IP20 Grey
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Flange size 50 x 50 mm
- With hinged cover: No.
- Protection class (IP) IP20
- With straight plug
- Connection technology: Screw terminal
- Colour: grey
- RAL number: 7035
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- For "difficult conditions" (according to VDE): No.
- Product type
Add-on socket
- Outlets
1
- Nominal voltage
250 V
- Flange dimensions
50 mm
- Factory colour
Grey
IP20
- Dim
(W x H x D) 50 x 50 x 36 mm
- Width
50 mm
- Height
50 mm
- Depth
36 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146883 Bals Elektrotechnik 712 Add-on socket IP20 Grey
User & Safety Instructions
User & Safety Instructions 3146883 Bals Elektrotechnik 712 Add-on socket IP20 Grey
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP20
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Housing gray RAL 7035

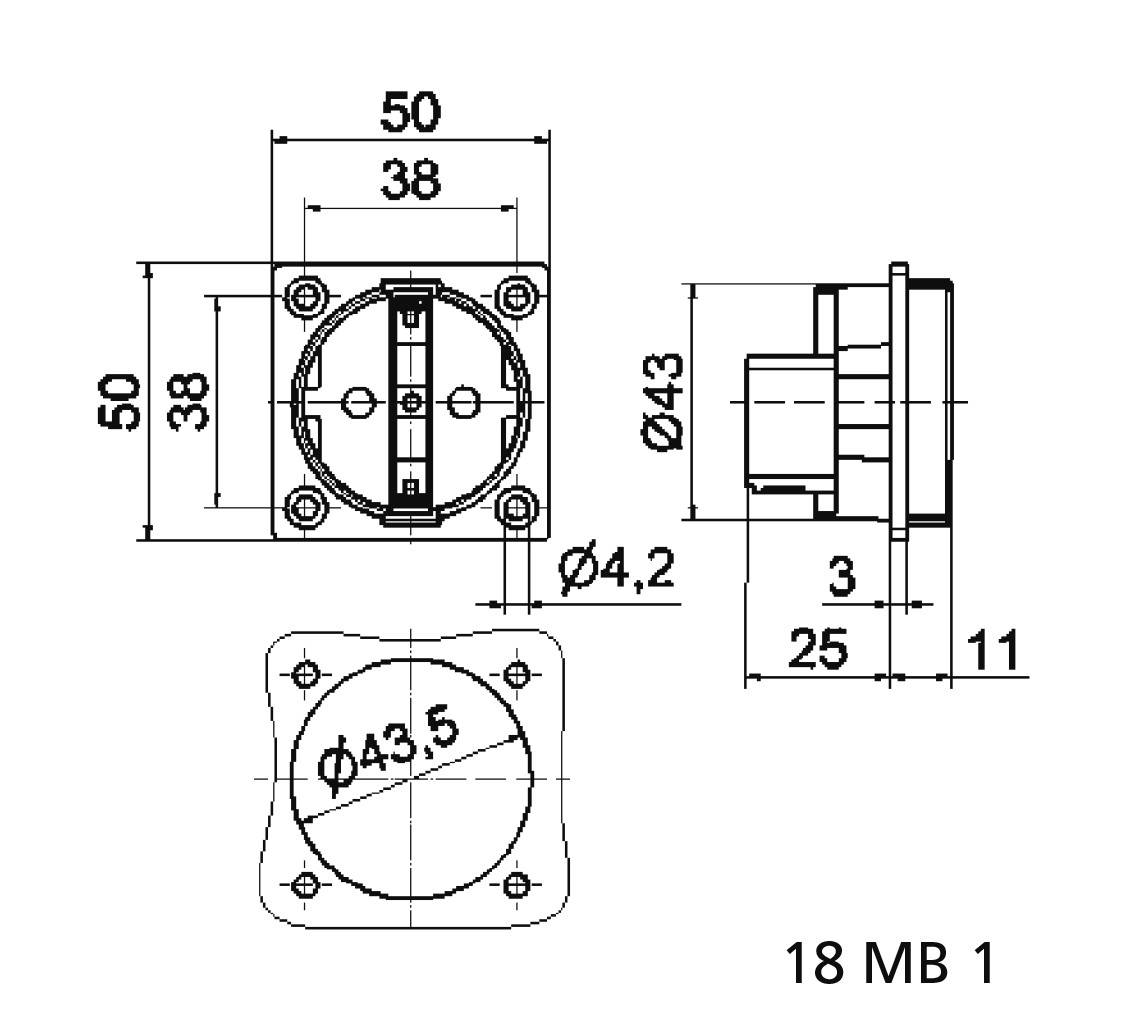

Device height: 50 mm, device width: 50 mm, device depth: 36 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connection is backwards, the device does not have a hinged cover
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP20
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Housing gray RAL 7035
Device height: 50 mm, device width: 50 mm, device depth: 36 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connection is backwards, the device does not have a hinged cover
This text is machine translated.
