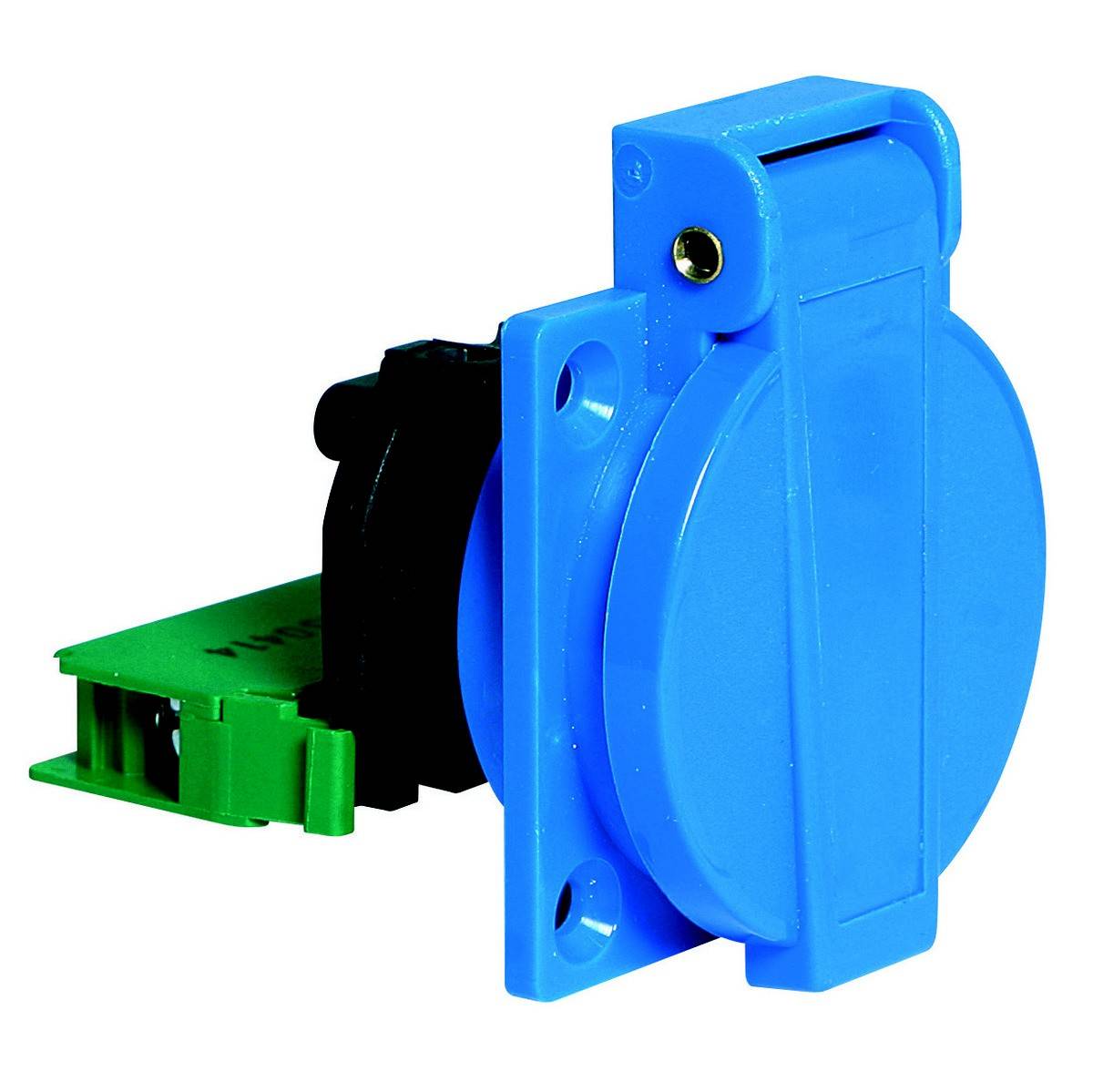

Bals Elektrotechnik 7168 Add-on socket IP54 Blue
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Flange size 50 x 50 mm
- With hinged cover: Yes
- Protection class (IP) IP54
- With straight plug
- Connection technology: Screw terminal
- Colour : blue
- RAL number: 5015
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- For "difficult conditions" (according to VDE): No.
- Product type
Add-on socket
- Outlets
1
- Nominal voltage
250 V
- Mounting type
Surface-mount
- Flange dimensions
50 mm
- Factory colour
Blue
IP54
- Dim
(W x H x D) 24.5 x 61.5 x 70 mm
- Width
24.5 mm
- Height
61.5 mm
- Depth
70 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146964 Bals Elektrotechnik 7168 Add-on socket IP54 Blue
User & Safety Instructions
User & Safety Instructions 3146964 Bals Elektrotechnik 7168 Add-on socket IP54 Blue
Description
Earthing contact surface-mounted socket
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Blue housing RAL 5015, blue flap lid RAL 5015

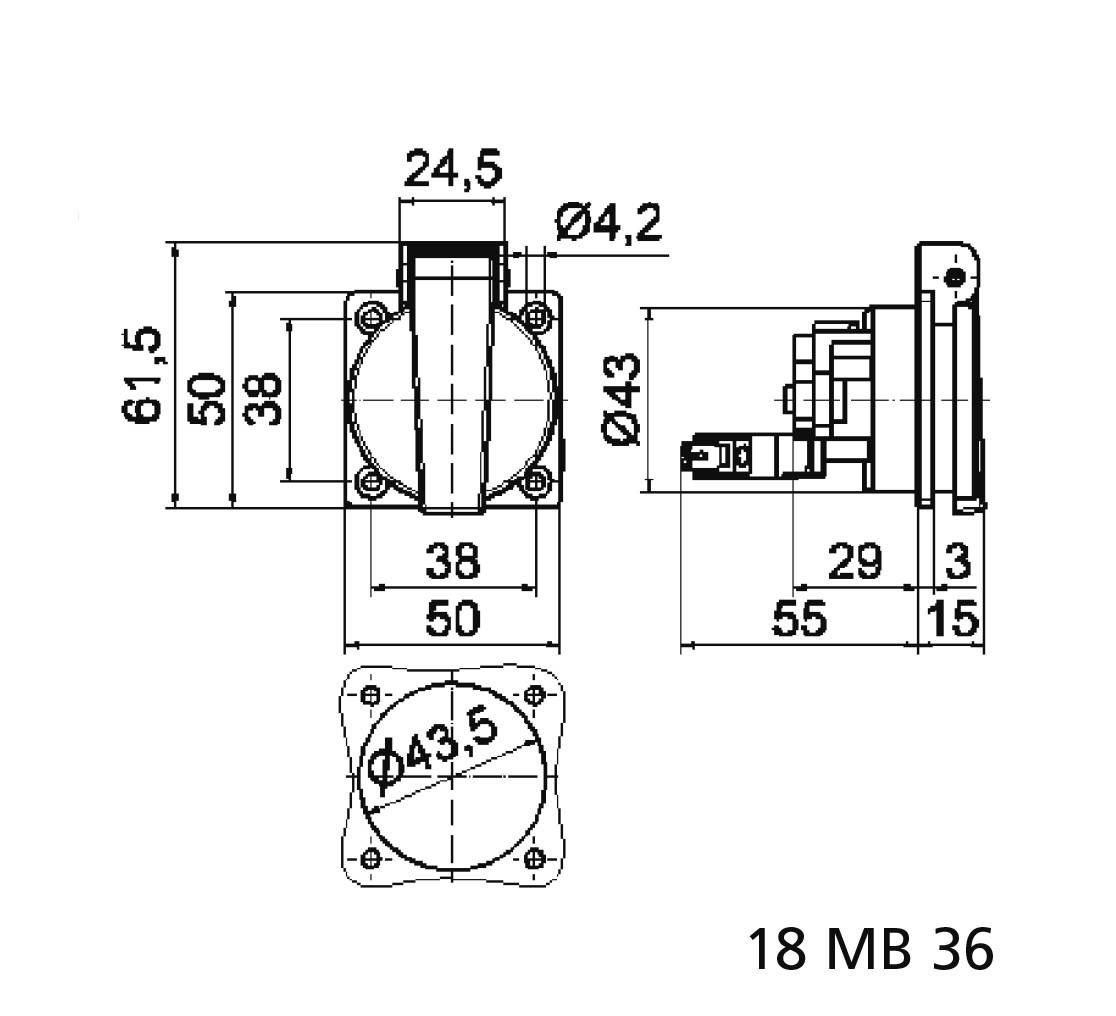

Device height: 61.5 mm, device width: 24.5 mm, device depth: 70 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connection is backwards, The socket is fitted with an auxiliary contact switch (normally closed contact), the flap lid is self-closing
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: German System - Type F.
Colour: Blue housing RAL 5015, blue flap lid RAL 5015
Device height: 61.5 mm, device width: 24.5 mm, device depth: 70 mm
Flange size vertical 50 mm, flange dimension horizontal 50 mm
Vertical hole spacing 38 mm, horizontal hole spacing 38 mm
Halogen-free: Yes
Other technical features: The connection is backwards, The socket is fitted with an auxiliary contact switch (normally closed contact), the flap lid is self-closing
This text is machine translated.
