Bals Elektrotechnik 735 Safety plug 250 V Black IP68
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Protection class (IP) IP68
- With straight plug
- Connection technology: Screw terminal
- Colour, black
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- For "difficult conditions" (according to VDE): No.
- Product type
Safety plug
- Nominal voltage
250 V
- Factory colour
Black
IP68
- Type
EARTHING CONTACT
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135013 Bals Elektrotechnik 735 Safety plug 250 V Black IP68
User & Safety Instructions
User & Safety Instructions 3135013 Bals Elektrotechnik 735 Safety plug 250 V Black IP68
Description
Earthing contact plug, TN
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Black collar RAL 9005, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green housing cover RAL 6031-F9

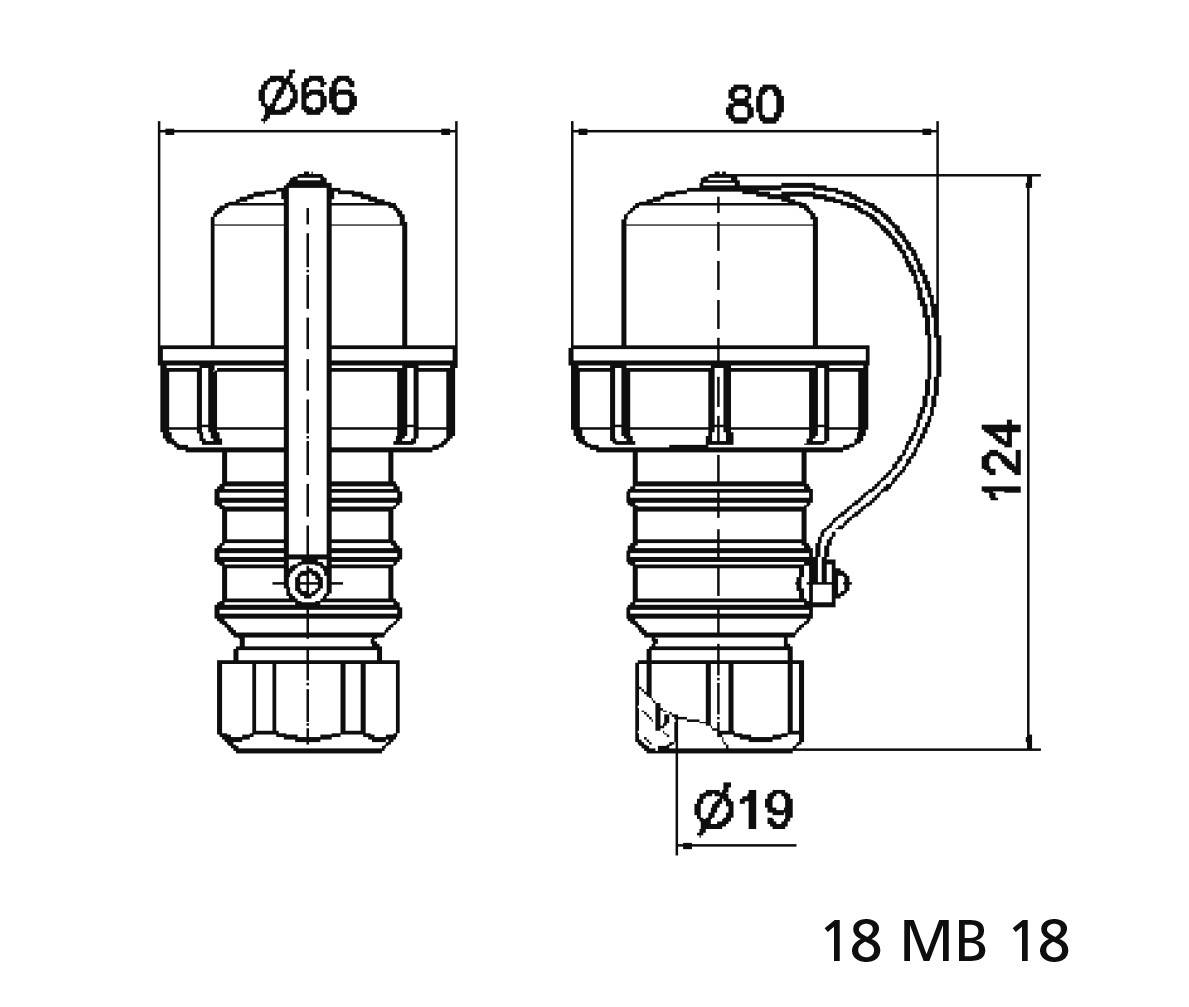

Device height: 124 mm, device width: 80 mm, device depth: 66 mm
Halogen-free: Yes
Other technical features: Also suitable for the Belgian/French system, For cables with a maximum diameter of 18 mm, Cable entry is done via a cable gland, With sealing hood
VG type no.: VG 96926 CP 001, supply no.: 5935-12-141-3149
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Black collar RAL 9005, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green housing cover RAL 6031-F9
Device height: 124 mm, device width: 80 mm, device depth: 66 mm
Halogen-free: Yes
Other technical features: Also suitable for the Belgian/French system, For cables with a maximum diameter of 18 mm, Cable entry is done via a cable gland, With sealing hood
VG type no.: VG 96926 CP 001, supply no.: 5935-12-141-3149
This text is machine translated.
