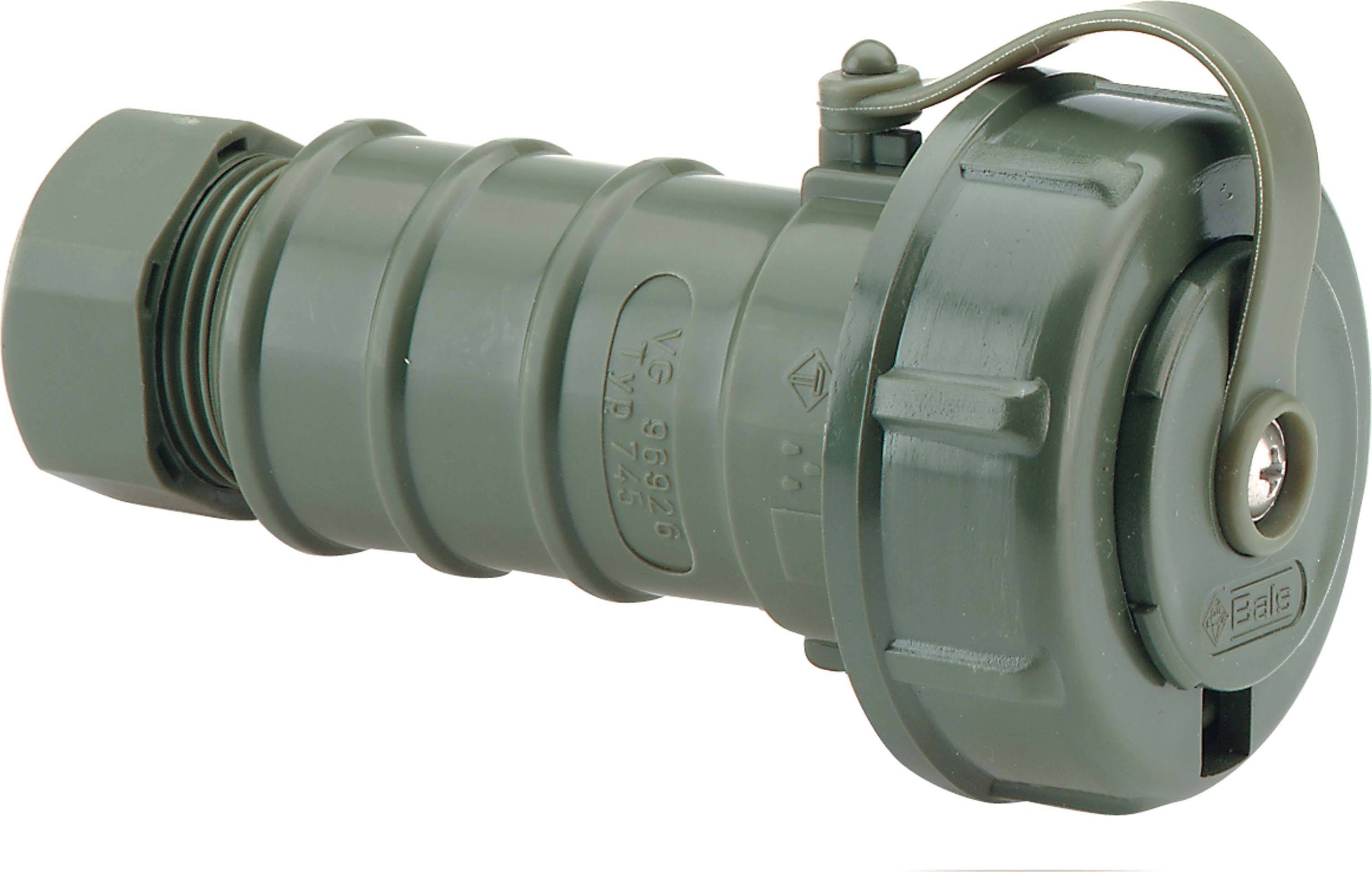

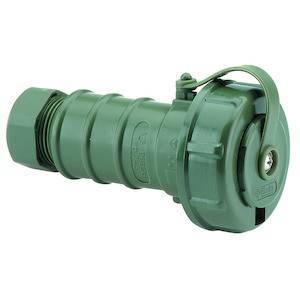

Bals Elektrotechnik 745 Safety mains socket 250 V Green IP68
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Polyamide (PA)
- Halogen-free: Yes
- Protection class (IP) IP68
- With straight plug
- Connection technology: Screw terminal
- Suitable for earthing contact pin: Yes
- Colour: green
- RAL number: 6031
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- For ""difficult conditions""" (according to VDE): No.
- Product type
Safety mains socket
- Nominal voltage
250 V
- Factory colour
Green
IP68
- Type
EARTHING CONTACT
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147210 Bals Elektrotechnik 745 Safety mains socket 250 V Green IP68
Description
Earthing contact coupler, TN
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green flap lid RAL 6031-F9, bronze green housing RAL 6031-F9

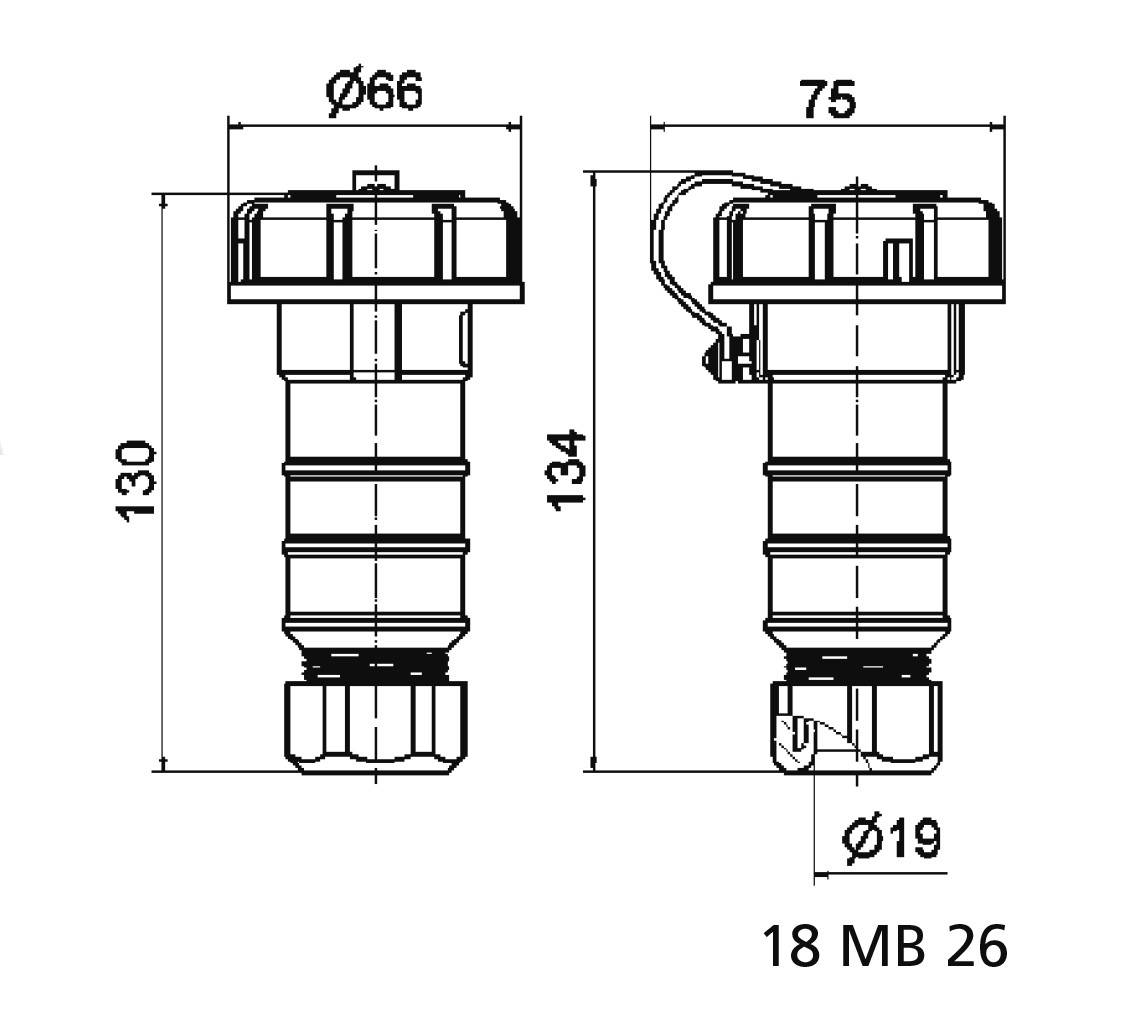

Device height: 130 mm, device width: 66 mm, device depth: 75 mm
Halogen-free: Yes
Other technical features: With German system, For cables with a maximum diameter of 18mm, Cable entry is done by means of a cable gland, The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96926 DS 001, supply no.: 5935-12-314-4771
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green flap lid RAL 6031-F9, bronze green housing RAL 6031-F9
Device height: 130 mm, device width: 66 mm, device depth: 75 mm
Halogen-free: Yes
Other technical features: With German system, For cables with a maximum diameter of 18mm, Cable entry is done by means of a cable gland, The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96926 DS 001, supply no.: 5935-12-314-4771
This text is machine translated.
