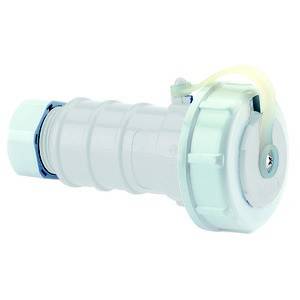

Bals Elektrotechnik 747 Safety mains socket Plastic 250 V Grey IP68
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Polyamide (PA)
- Halogen-free: Yes
- Protection class (IP) IP68
- With straight plug
- Connection technology: Screw terminal
- Suitable for earthing contact pin: Yes
- Colour: grey
- RAL number: 7035
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- For ""difficult conditions""" (according to VDE): Yes
- Product type
Safety mains socket
- Nominal voltage
250 V
- Material
Plastic
- Factory colour
Grey
IP68
- Type
EARTHING CONTACT
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
16 A
250 V
Grey
TRUE
7035
Polyamide (PA)
3
Plastic
Screwed terminal
Straight
IP68
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147177 Bals Elektrotechnik 747 Safety mains socket Plastic 250 V Grey IP68
User & Safety Instructions
User & Safety Instructions 3147177 Bals Elektrotechnik 747 Safety mains socket Plastic 250 V Grey IP68
Description
Earthing contact coupling
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: German System - Type F.
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing gray RAL 7035

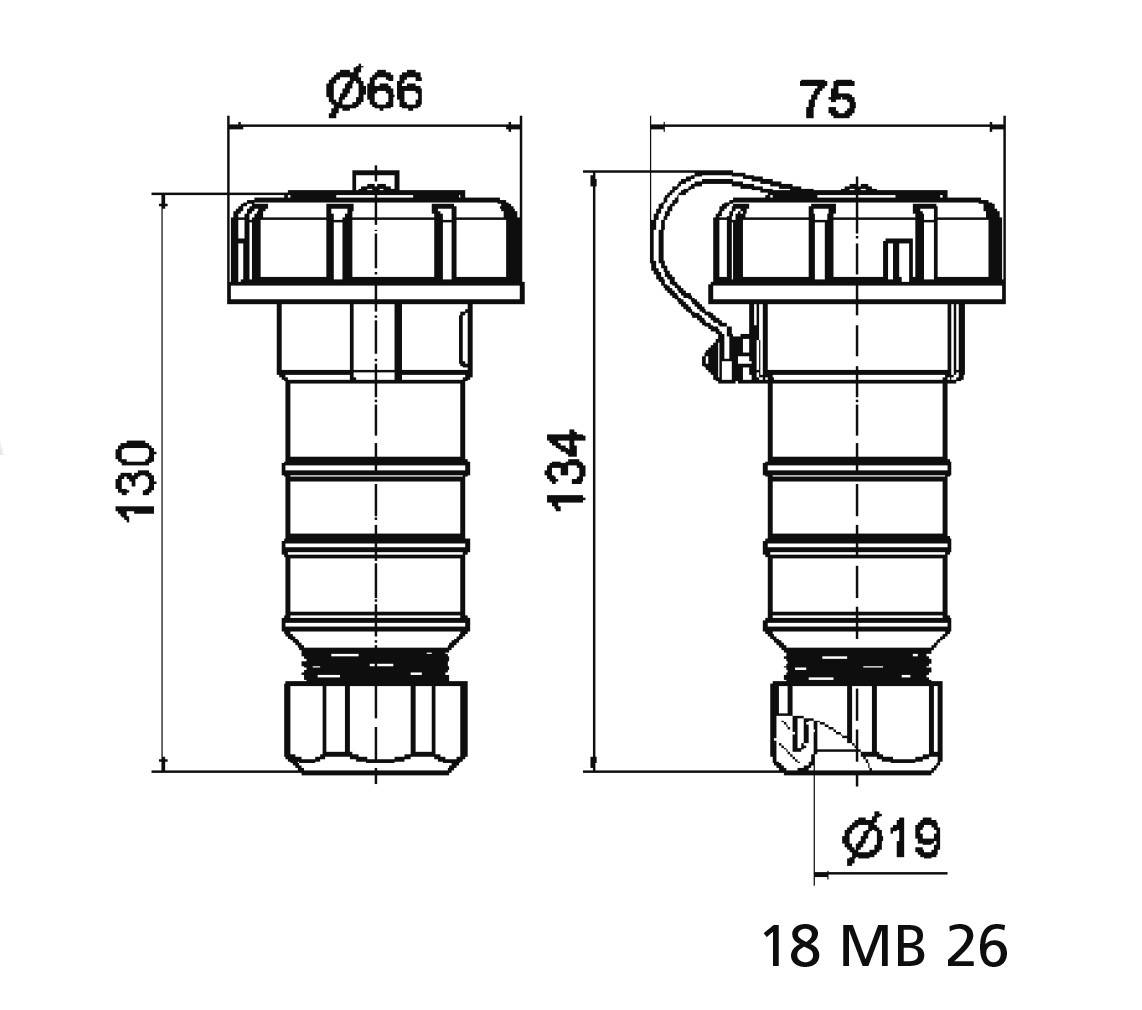

Device height: 130 mm, device width: 66 mm, device depth: 75 mm
Halogen-free: Yes
Other technical features: With German system, For cables with a maximum diameter of 14mm, Cable entry is done by means of a cable gland with hammer symbol, The bayonet cover is attached to the housing with a fastening strap
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: German System - Type F.
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing gray RAL 7035
Device height: 130 mm, device width: 66 mm, device depth: 75 mm
Halogen-free: Yes
Other technical features: With German system, For cables with a maximum diameter of 14mm, Cable entry is done by means of a cable gland with hammer symbol, The bayonet cover is attached to the housing with a fastening strap
This text is machine translated.
