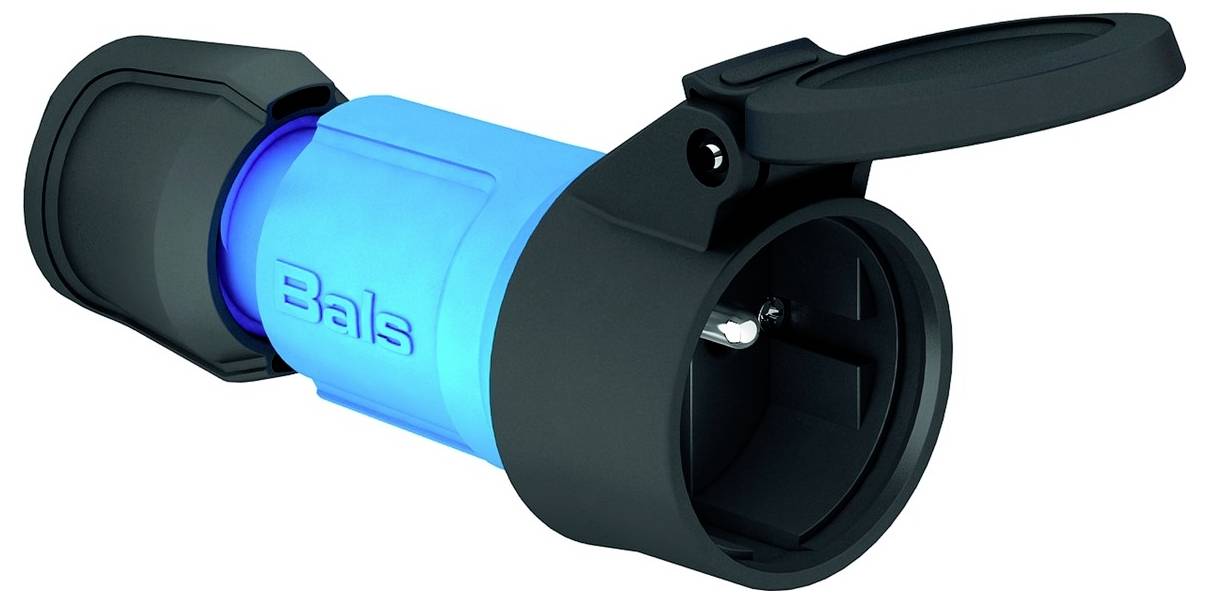

Bals Elektrotechnik 7490 Safety mains socket Polyamide
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Design: Earthing contact pin
- Material: Plastic
- Colour : blue
- RAL number: 5015
- Protection class (IP) IP54
- Nominal voltage: 250 V
- Nominal current: 16 A
- Halogen-free: Yes
- Material quality: Polyamide (PA)
- Connection technology: Screw terminal
- With straight plug
- Suitable for earthing contact pin: Yes
- For "difficult conditions" (according to VDE): Yes
- Product type
Safety mains socket
- Connector version
straight
- Load (max.)
16 A
- Material
Polyamide
- Dim
(W x H x D) 52 x 123 x 64 mm
- Width
52 mm
- Height
123 mm
- Mains plug type (on device)
E
- Depth
64 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548926 Bals Elektrotechnik 7490 Safety mains socket Polyamide
Description
Earthing contact coupling
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: Belgian/French system - Type E.
Colour: Housing cover blue RAL 5015
Device height: 123 mm, device width: 52 mm, device depth: 64 mm
Halogen-free: True
Other technical features: With multi-grip cable gland and integrated strain relief, the hinged lid is self closing
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: Belgian/French system - Type E.
Colour: Housing cover blue RAL 5015
Device height: 123 mm, device width: 52 mm, device depth: 64 mm
Halogen-free: True
Other technical features: With multi-grip cable gland and integrated strain relief, the hinged lid is self closing
This text is machine translated.
