Bals Elektrotechnik 754 Add-on socket IP67 Black
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design: Connectors on the equipment
- Protection class (IP) IP67
- Protection class (NEMA): Other
- With straight plug
- Connection technology: Screw terminal
- Suitable for earthing contact pin: Yes
- Colour, black
- RAL number: 5015
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- Earth contact round: Yes
- For "difficult conditions" (according to VDE): No.
- Product type
Add-on socket
- Outlets
1
- Nominal voltage
250 V
- Mounting type
Surface-mount
- Flange dimensions
75 mm
- Factory colour
Black
IP67
- Dim
(W x H x D) 75 x 75 x 91 mm
- Width
75 mm
- Height
75 mm
- Depth
91 mm
- Type
EARTHING CONTACT
- Content
1 pc(s)
- Connection
Screw terminal
- Material
Plastic
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
16 A
250 V
Black
TRUE
5015
Built-up device plug
Thermoplastic
3
Plastic
Screwed terminal
Straight
IP67
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147182 Bals Elektrotechnik 754 Add-on socket IP67 Black
User & Safety Instructions
User & Safety Instructions 3147182 Bals Elektrotechnik 754 Add-on socket IP67 Black
Description

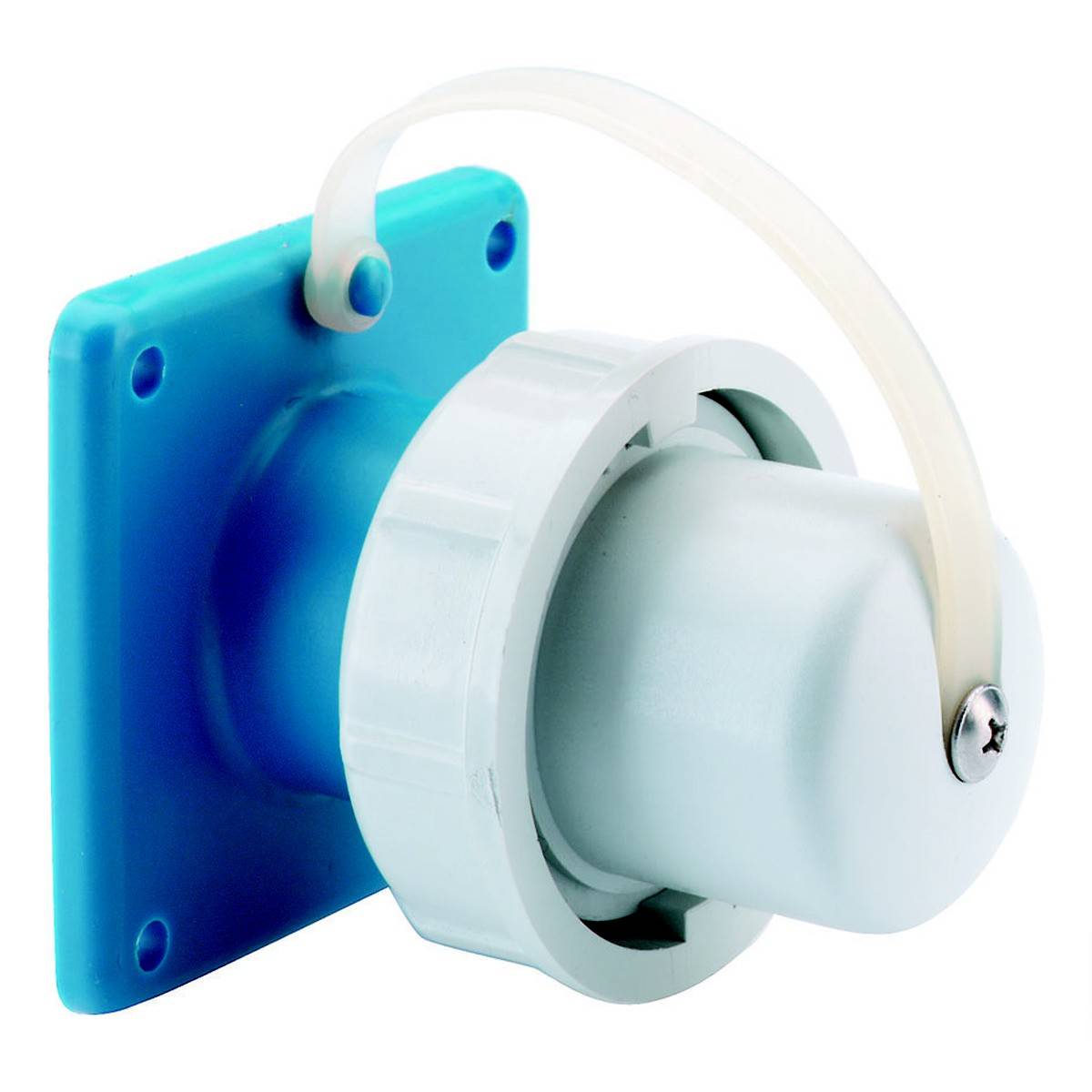

Earthing contact surface-mounted plug-in connector, straight
16A 3P (2P+PE) 250V (250V~) IP67
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: Other
Colour: Cover gray RAL 7035, collar black RAL 9005, housing blue RAL 5015

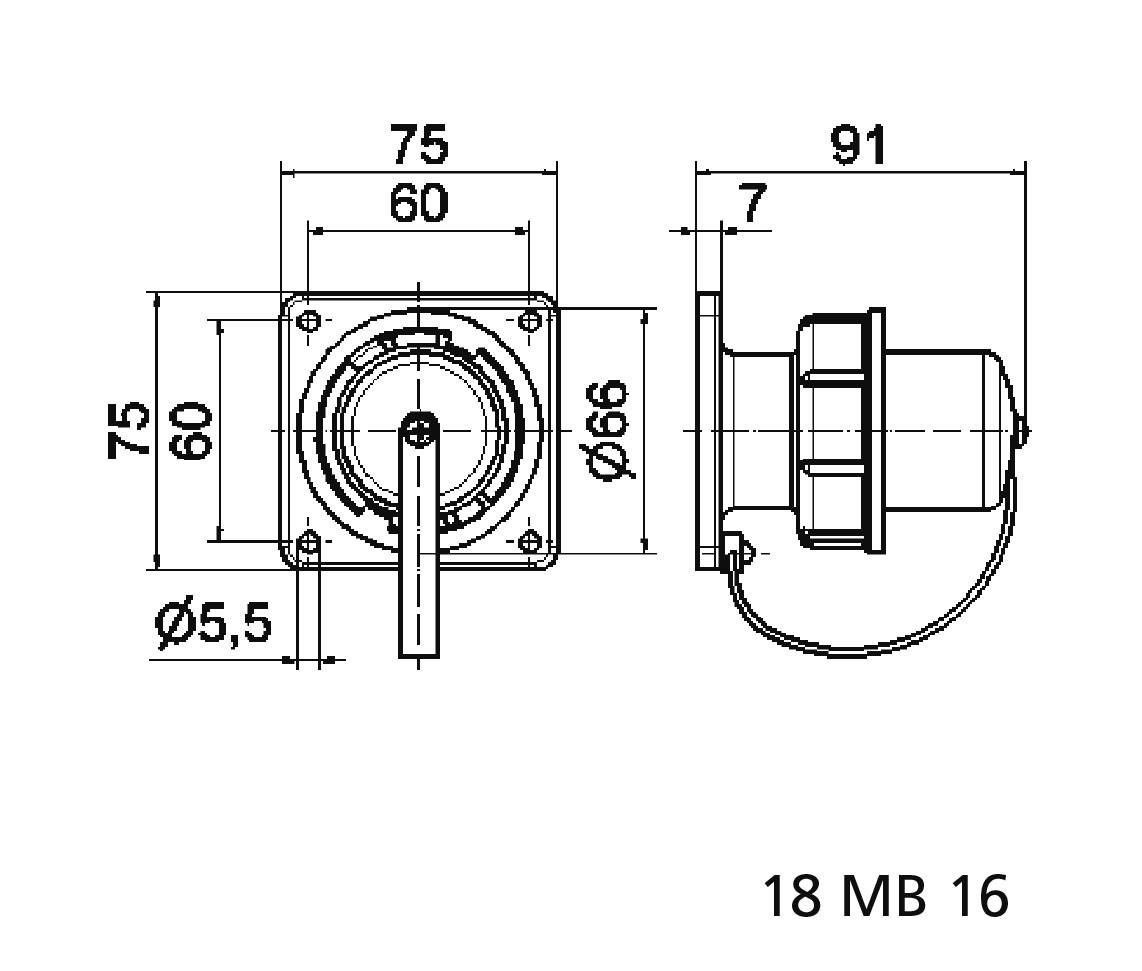

Device height: 75 mm, device width: 75 mm, device depth: 91 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: Yes
Other technical characteristics: Also suitable for the Belgian/French system, with hammer symbol, with closure hood
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP67
Frequency AC
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: Other
Colour: Cover gray RAL 7035, collar black RAL 9005, housing blue RAL 5015
Device height: 75 mm, device width: 75 mm, device depth: 91 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: Yes
Other technical characteristics: Also suitable for the Belgian/French system, with hammer symbol, with closure hood
This text is machine translated.
