Bals Elektrotechnik CEE power distributor 560509 560509
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 1
- Security: Without
- FI-circuit breaker: Without
- Material of the housing: Stainless steel
- Feed/connection options: 1 line (stub cable)
- Diameter of cable entry: M32
- Cable length 0 m
- Handling: Flush-mounted
- Protection type (IP) IP44
- Military version: No.
- Colour: Other
- Height: 300 mm
- Width 300 mm
- Depth: 200 mm
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type B
PG connector
- No. of PG sockets
1
- Nominal output voltage
400 V
IP44
- Dim
(L x W x H) 300 x 300.00 x 300.00 mm
- Length
300 mm
- Width
300.00 mm
- Height
300.00 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
200.00 mm
- Material
Stainless steel
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146870 Bals Elektrotechnik CEE power distributor 560509 560509
User & Safety Instructions
User & Safety Instructions 3146870 Bals Elektrotechnik CEE power distributor 560509 560509
Description

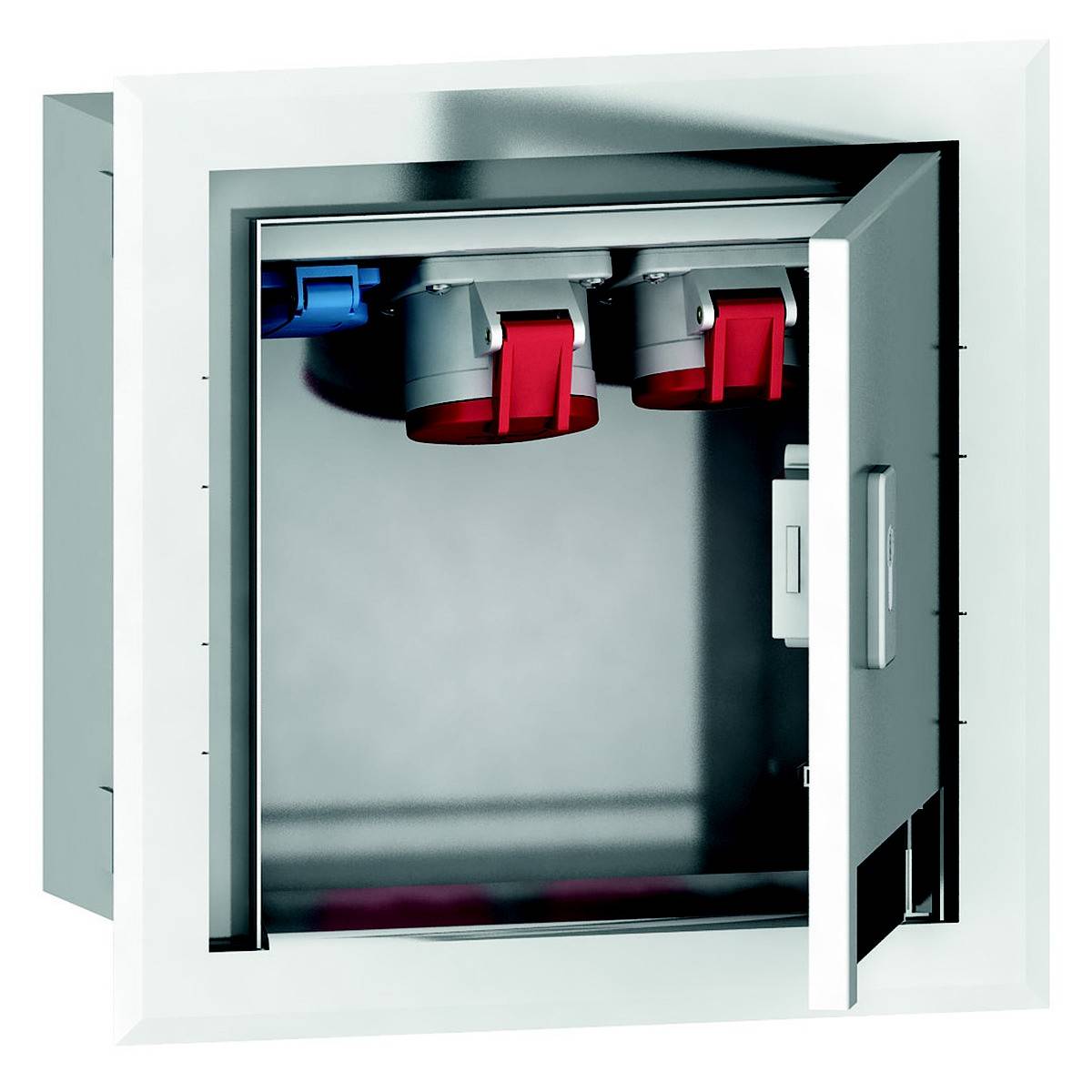

Distributor, stainless steel, flush-mounted housing
Protection class: IP44
Case:
V2A stainless steel distributor, with lockable door
(Box lock with profile half cylinder) incl.
Lateral flush-mount hooks.
When connected the cabinet can be locked
The tap-off lines can be connected via a front-side
Brush lock can be pushed out of the cabinet.

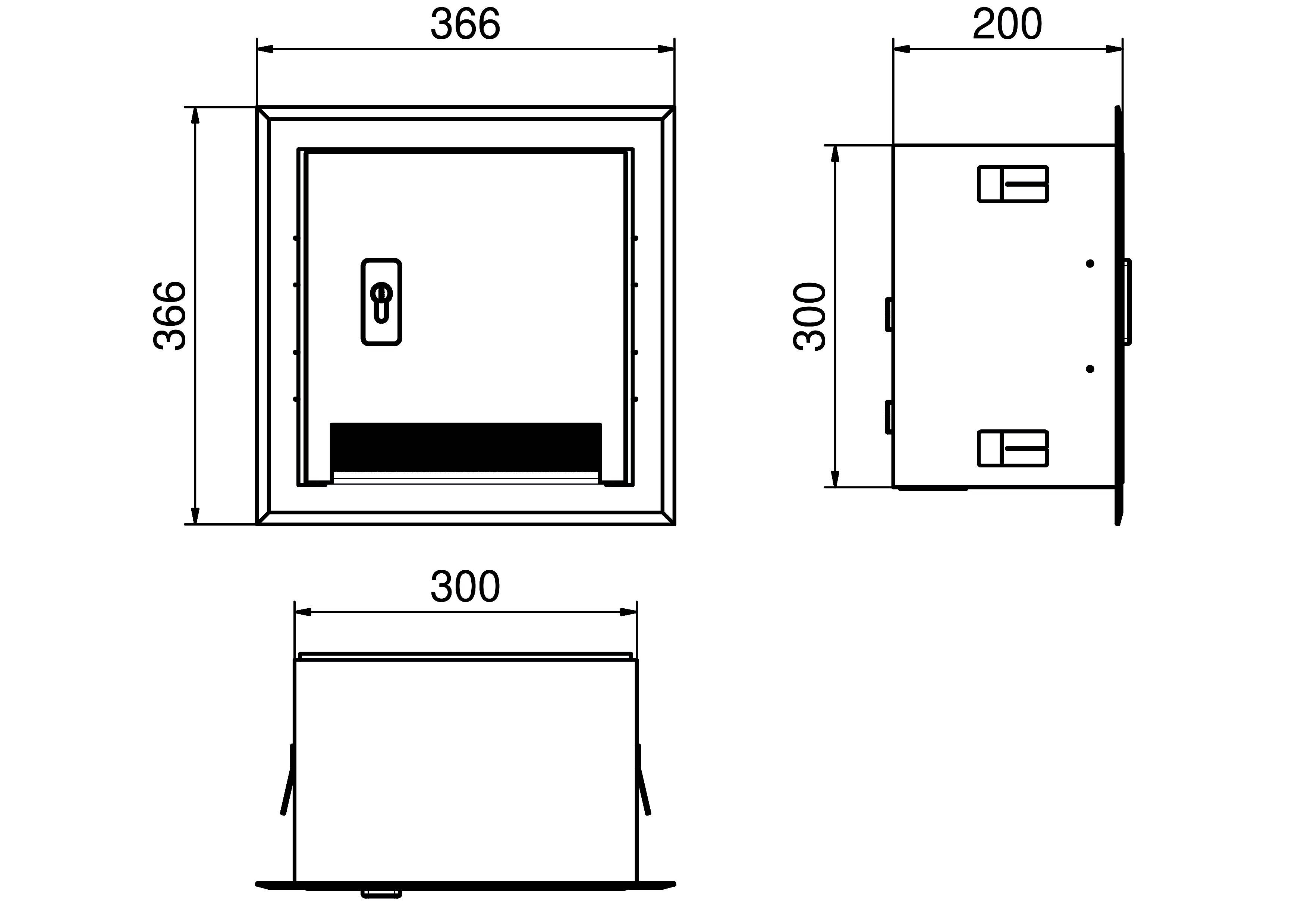

Device height: 300 mm, device width: 300 mm, device depth: 200 mm
Equipment:
1 x mounting bracket
1 x earthing contact socket 16A 230V IP54 blue
1 x CEE-socket 16A 400V 5p 6h IP44
1 x CEE-socket 32A 400V 5p 6h IP44
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M20 down (open)
1 x M25 below (open)
1 x M32 bottom (open)
(No cable entries above)
Additional Information:
Wired ready to connect to three circuits.
The sockets are individually mounted on serial terminals
4 or 6 mm² wired.
This text is machine translated.
Protection class: IP44
Case:
V2A stainless steel distributor, with lockable door
(Box lock with profile half cylinder) incl.
Lateral flush-mount hooks.
When connected the cabinet can be locked
The tap-off lines can be connected via a front-side
Brush lock can be pushed out of the cabinet.
Device height: 300 mm, device width: 300 mm, device depth: 200 mm
Equipment:
1 x mounting bracket
1 x earthing contact socket 16A 230V IP54 blue
1 x CEE-socket 16A 400V 5p 6h IP44
1 x CEE-socket 32A 400V 5p 6h IP44
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M20 down (open)
1 x M25 below (open)
1 x M32 bottom (open)
(No cable entries above)
Additional Information:
Wired ready to connect to three circuits.
The sockets are individually mounted on serial terminals
4 or 6 mm² wired.
