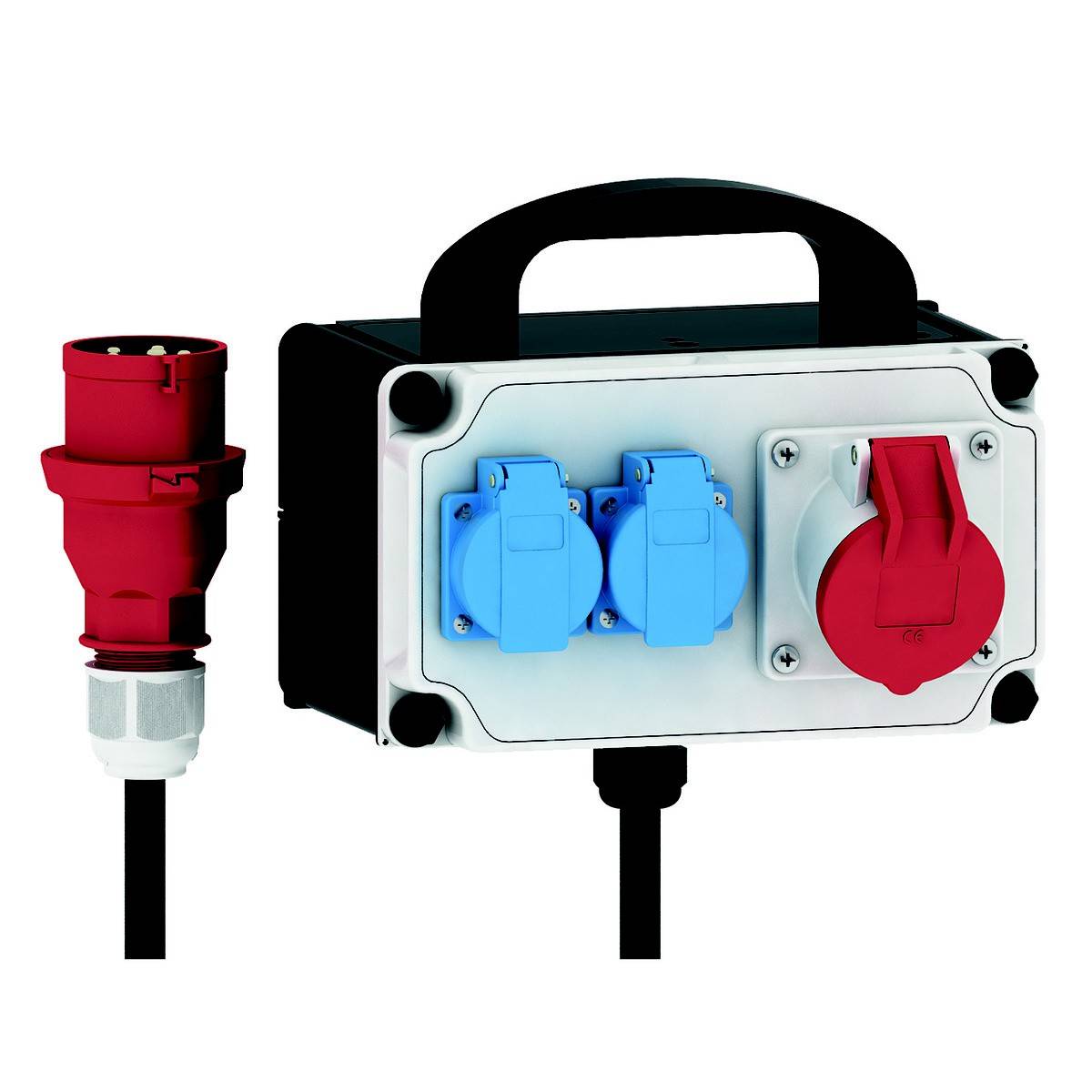

Bals Elektrotechnik CEE power distributor 85006 85006
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Security: Without
- FI-circuit breaker: Without
- Housing material: Plastic
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 130 mm
- Width 230 mm
- Depth: 145 mm
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type B
CEE connector (5-pin, 16 A)
- No. of PG sockets
2
- Nominal output voltage
400 V
IP44
- Cable length
2 m
- Factory colour
Grey
- Dim
(W x H x D) 230.00 x 130.00 x 145.00 mm
- Width
230.00 mm
- Height
130.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
145.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146451 Bals Elektrotechnik CEE power distributor 85006 85006
User & Safety Instructions
User & Safety Instructions 3146451 Bals Elektrotechnik CEE power distributor 85006 85006
Description
VARIOBOX - S mobile
DIN EN 61439-2 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, upper section straight, cover screws
Undetachable, distributor including carrying handle
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035

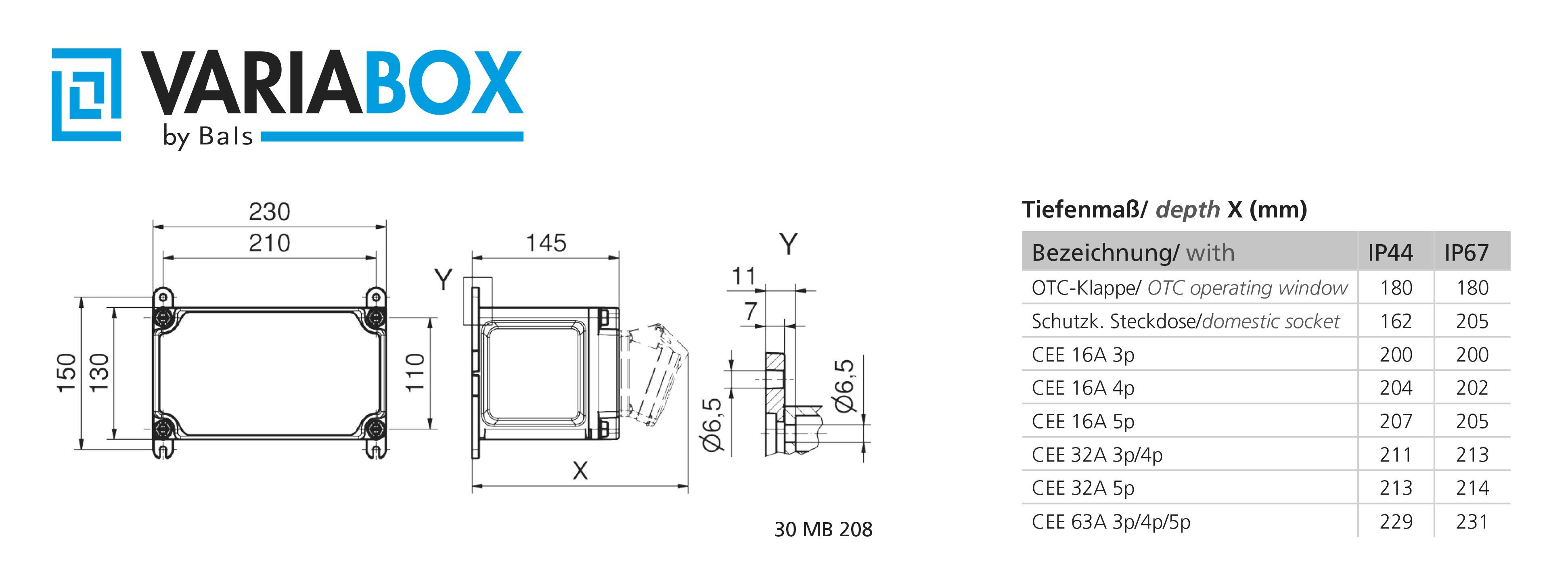

Device height: 130 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 1
INA 16
Equipment:
2 x earthing contact socket 16A 230V blue IP 54
1 x CEE-socket 16A 400V 5p 6h IP 44 angled
Security/Protection measure:
none
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h
With 2m H07RN-F5 G2.5
Additional Information:
Wired as ready to connect
Structure according to Z-No. Z1202108
This text is machine translated.
