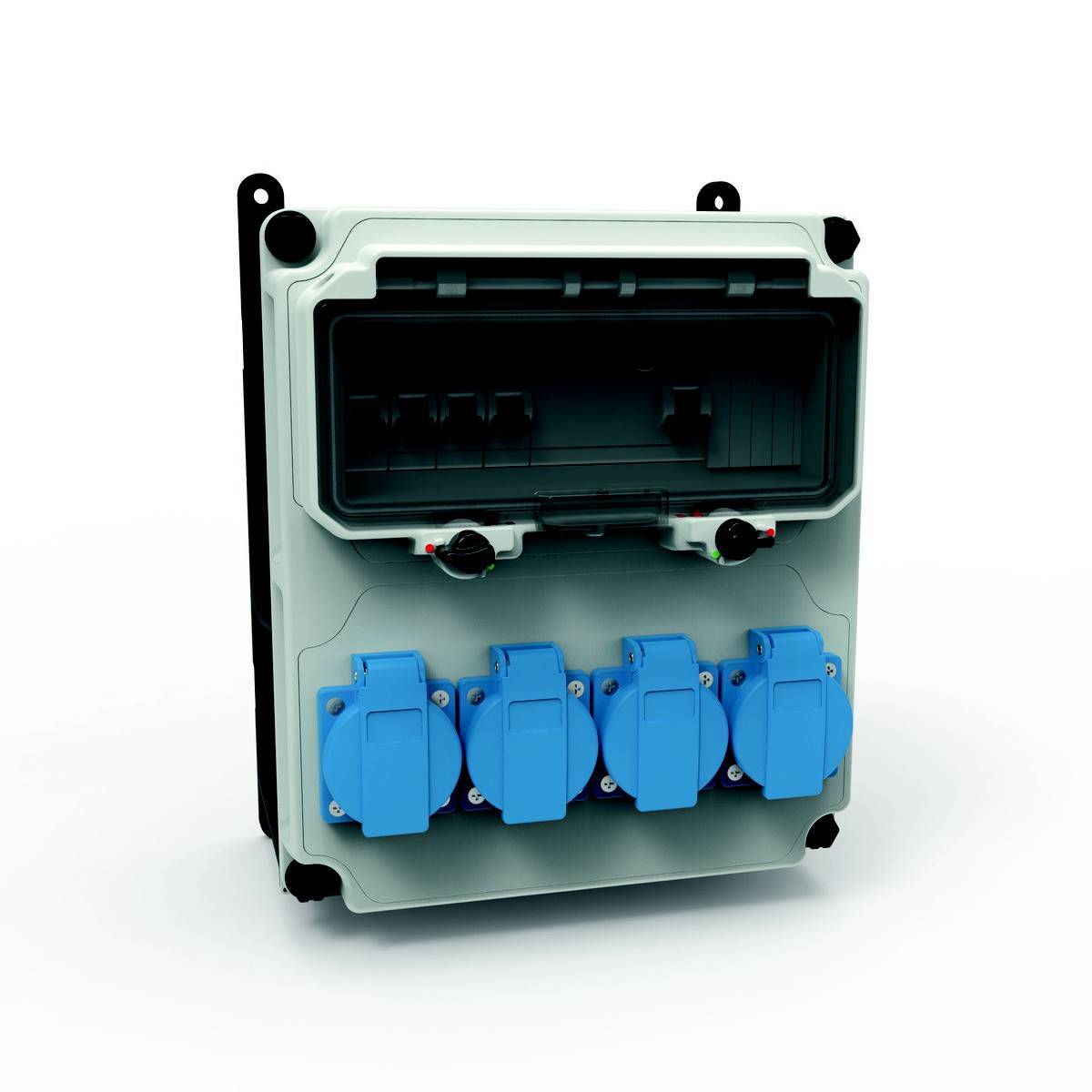

Bals Elektrotechnik CEE power distributor 89040 89040
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- Protection: LS-switch
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 4
- Housing material: Plastic
- Feed/connection options: 2 lines (loop/loop-through)
- Diameter of cable entry: M32
- Type of mains connection: Other
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 260 mm
- Width 230 mm
- Depth: 145 mm
- Product type
CEE power distributor
- No. of PG sockets
4
- Nominal output voltage
230 V
IP44
- Factory colour
Grey
- Dim
(L x W x H) 145 x 230.00 x 260.00 mm
- Length
145 mm
- Width
230.00 mm
- Height
260.00 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Depth
145.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146559 Bals Elektrotechnik CEE power distributor 89040 89040
User & Safety Instructions
User & Safety Instructions 3146559 Bals Elektrotechnik CEE power distributor 89040 89040
Description
VARIOBOX - M
DIN EN 61439-3 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanics (one touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035
Device height: 260 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.71
INA 32
Equipment:
4 x earthing contact socket 16A 230V blue IP 44
Security/Protection measure:
4 x C-Automatic 16A 1p
1 x FI switch 40/0.03A 4p
Mounted on retractable rail
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M32 above
1 x M12, 1 x M20, 2 x M32 below
Additional Information:
Wired ready to connect to the meter terminal block
5 x 25 mm² / type C
Structure according to Drawing Z120170
According to wiring Circuit Diagram 89-049S
