Bals Elektrotechnik CEE power distributor 89076 89076
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Protection: LS-switch
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 4
- Housing material: Plastic
- Feed/connection options: 2 lines (loop/loop-through)
- Diameter of cable entry: M40
- Type of mains connection: Other
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 390 mm
- Width 230 mm
- Depth: 145 mm
- Product type
CEE power distributor
IP44
- Cable length
0 m
- Factory colour
Grey
- Weight
5.86
- Dim
(W x H x D) 230.00 x 390.00 x 145.00 mm
- Width
230.00 mm
- Height
390.00 mm
- Content
1 pc(s)
- Depth
145.00 mm
- Material
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146666 Bals Elektrotechnik CEE power distributor 89076 89076
User & Safety Instructions
User & Safety Instructions 3146666 Bals Elektrotechnik CEE power distributor 89076 89076
Description
VARIOBOX - L
DIN EN 61439-3 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Security mounted on extendable mounting rail
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanics (one touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035

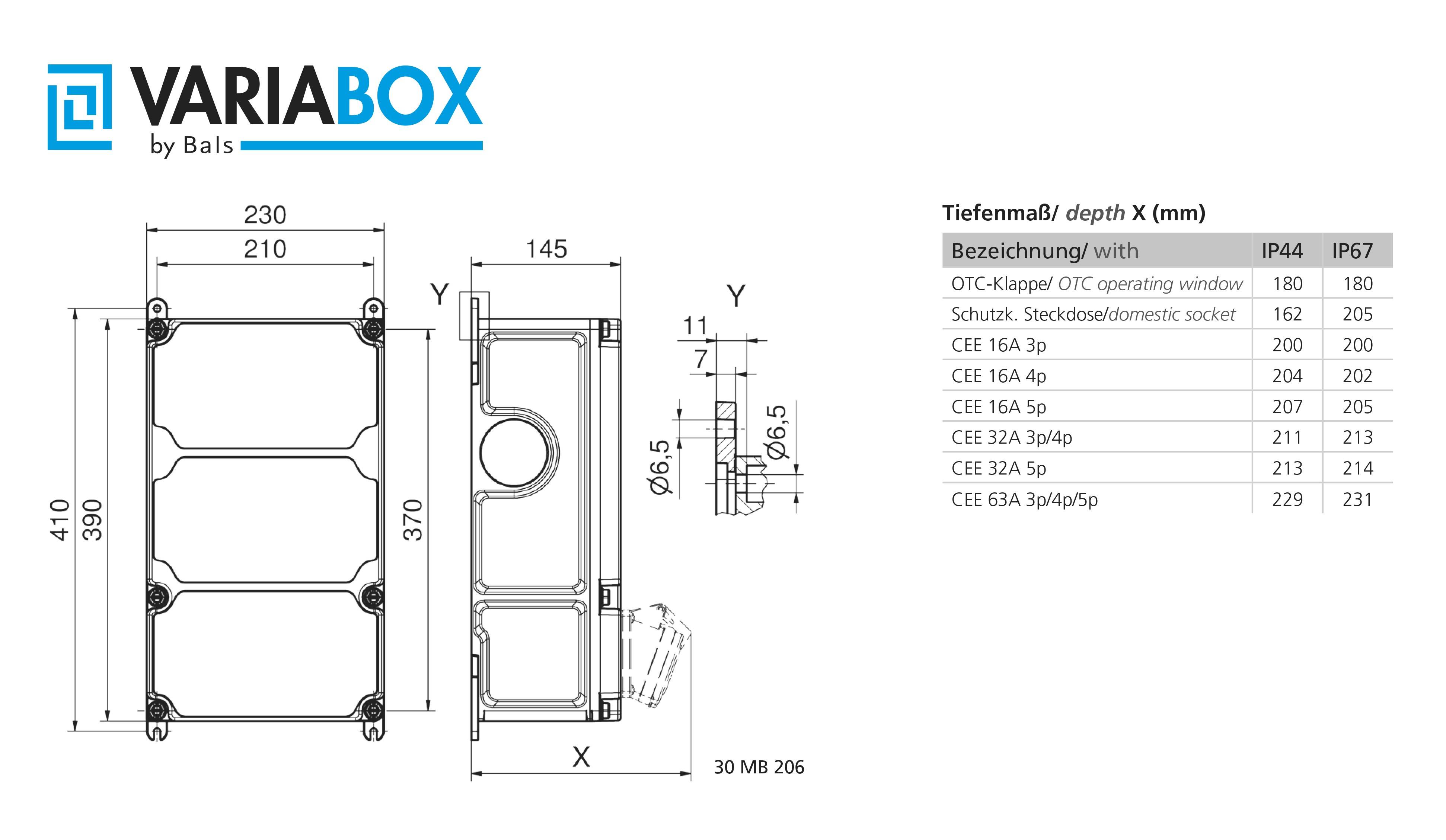

Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.61
INA 40

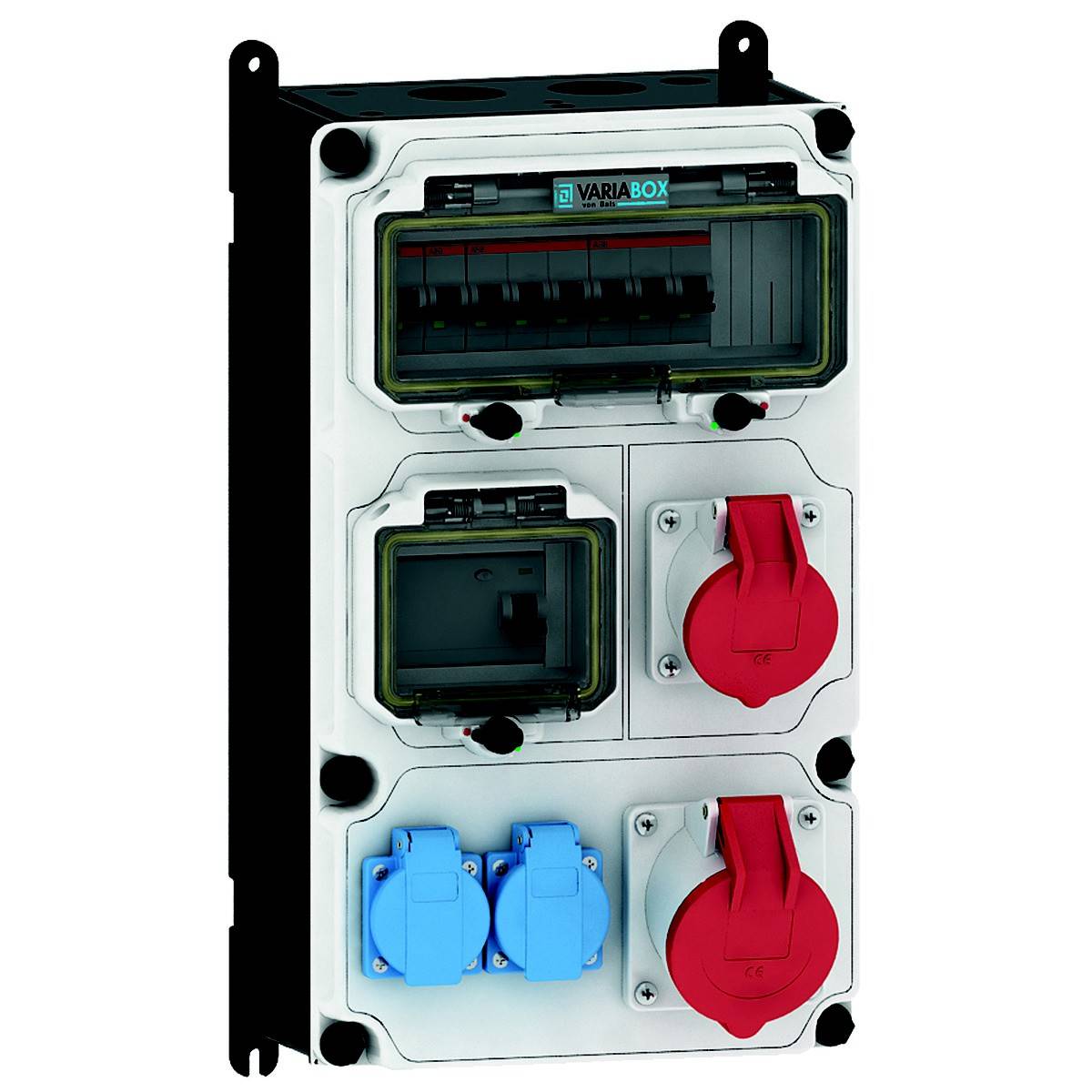

Equipment:
2 x earthing contact socket 16A 230V IP54 blue
1 x CEE-socket 16A 400V 5p 6h IP44 tilted
1 x CEE-socket 32A 400V 5p 6h IP44 tilted
Security/Protection measure:
2 x C-Automatic 16A 1p
1 x C-Automatic 16A 3-P
1 x C-Machine 32A 3-pin
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M40 above
1 x M12, 1 x M20, 2 x M40 below
1 x counter terminal block 5x25 mm² / type C (suitable for sanding line)
Additional Information:
Wired as ready to connect.
This text is machine translated.
DIN EN 61439-3 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Security mounted on extendable mounting rail
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanics (one touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035
Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.61
INA 40
Equipment:
2 x earthing contact socket 16A 230V IP54 blue
1 x CEE-socket 16A 400V 5p 6h IP44 tilted
1 x CEE-socket 32A 400V 5p 6h IP44 tilted
Security/Protection measure:
2 x C-Automatic 16A 1p
1 x C-Automatic 16A 3-P
1 x C-Machine 32A 3-pin
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M40 above
1 x M12, 1 x M20, 2 x M40 below
1 x counter terminal block 5x25 mm² / type C (suitable for sanding line)
Additional Information:
Wired as ready to connect.
