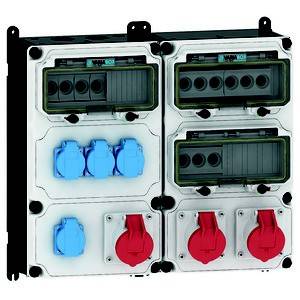

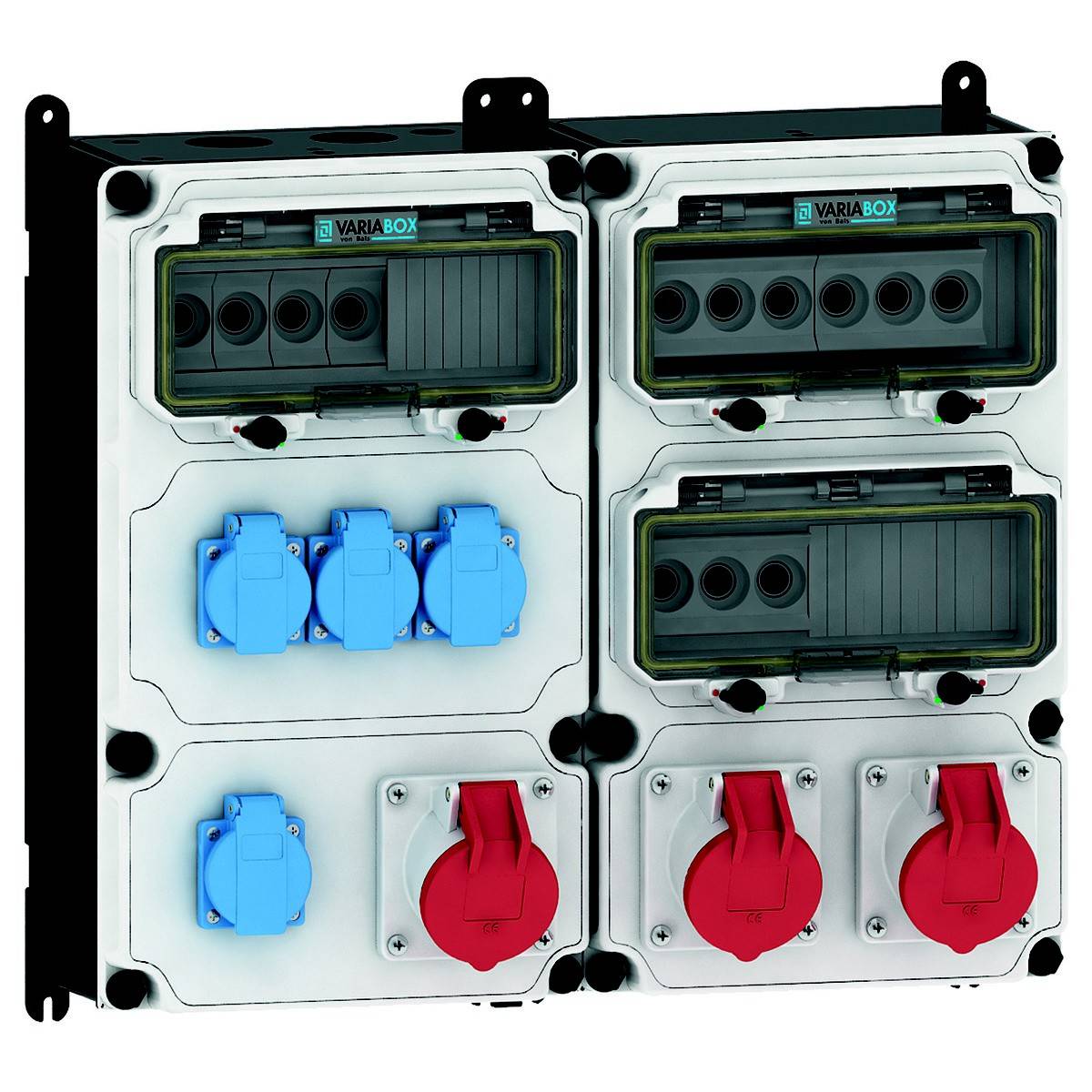

Bals Elektrotechnik CEE power distributor 89128 89128
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 3x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- D0-fuse protection
- FI-circuit breaker: Without
- Number of circuit breakers: 7
- Housing material: Plastic
- Feed/connection options: 2 lines (loop/loop-through)
- Diameter of cable entry: M40
- Type of mains connection: Other
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 390 mm
- Width 460 mm
- Depth: 145 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- No. of PG sockets
4
IP44
- Cable length
0 m
- Factory colour
Grey
- Dim
(L x W x H) 145 x 460.00 x 390.00 mm
- Length
145 mm
- Width
460.00 mm
- Height
390.00 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
145.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146784 Bals Elektrotechnik CEE power distributor 89128 89128
User & Safety Instructions
User & Safety Instructions 3146784 Bals Elektrotechnik CEE power distributor 89128 89128
Description
VARIOBOX - L DUO
DIN EN 61439-2 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanics (one touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035

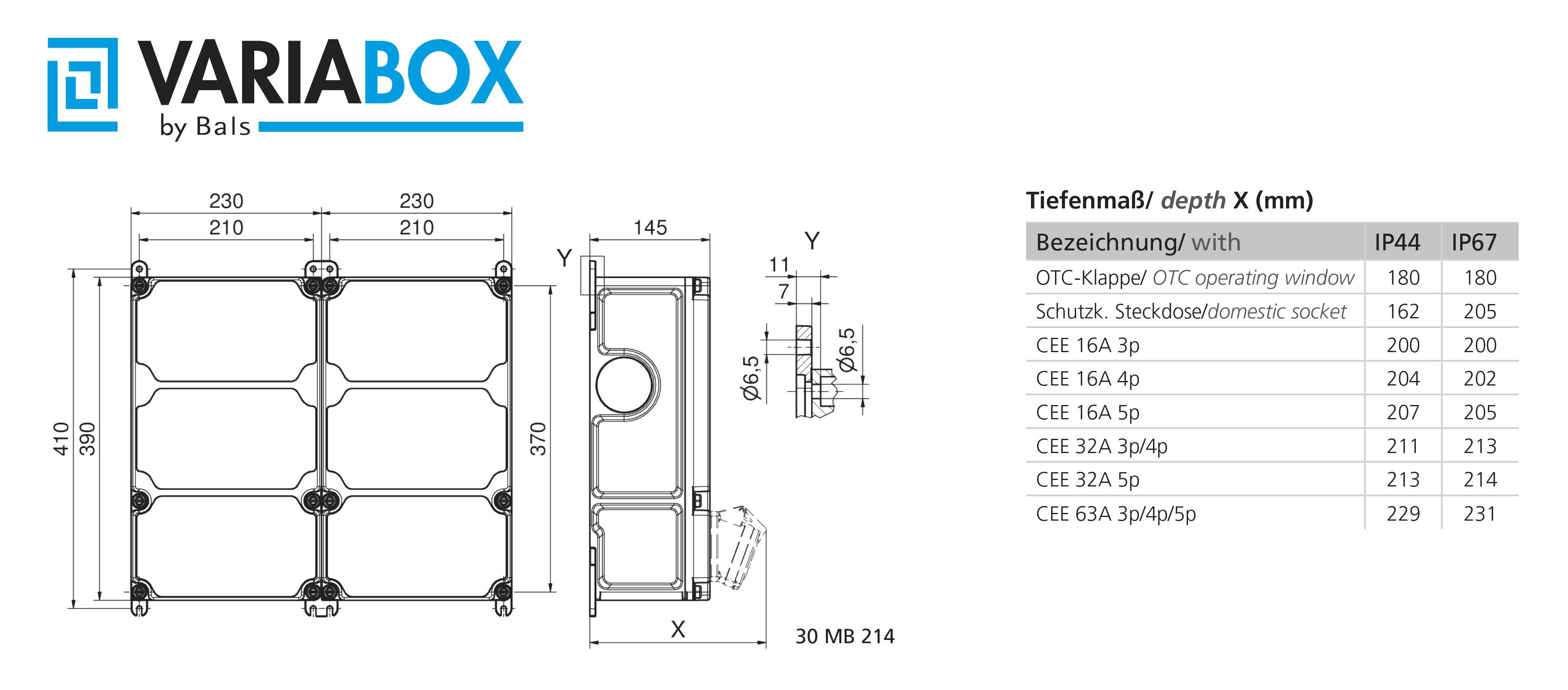

Device height: 390 mm, device width: 460 mm, device depth: 145 mm
RDF Factor: 1
INA 63
Equipment:
4 x earthing contact socket 16A 230V blue IP 54
3 x CEE-socket 16A 400V 5p 6h IP 44 angled
Security/Protection measure:
4 x D01 1p
3 x D01 3-pin
Mounted on retractable rail
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M40 above
1 x M12, 1 x M20, 2 x M40 below
Additional Information:
Wired ready to connect to the meter terminal block
5 x 25 mm² / Type C (suitable for sanding line)
CEE plug sockets with screwless, maintenance-free Quick-Connect
Connection technology
Structure according to Z-No. Z120277
