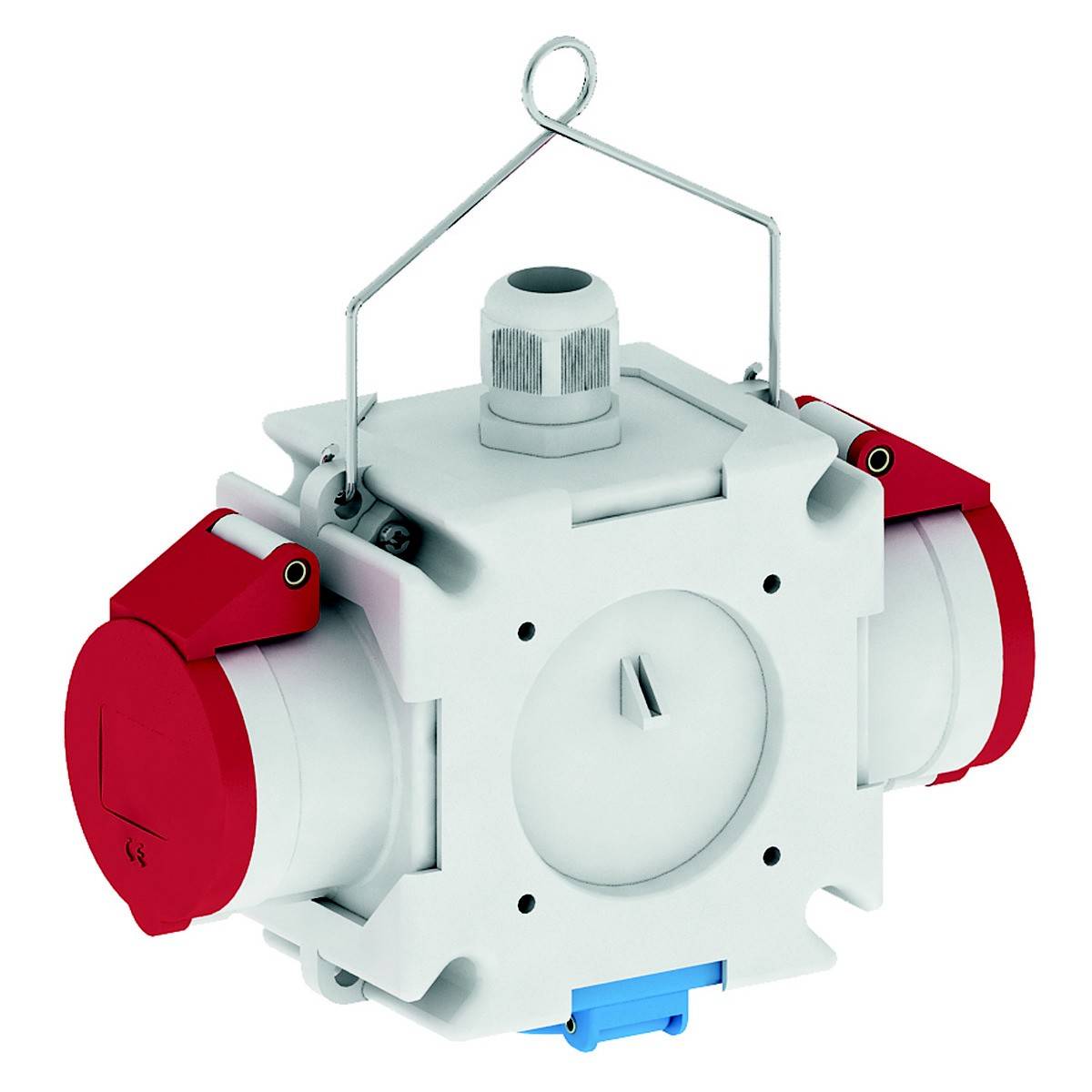

Bals Elektrotechnik CEE suspended distributor 540055 540055
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 1
- Security: Without
- FI-circuit breaker: Without
- Housing material: Plastic
- Feed/connection options: 1 line (stub cable)
- Diameter entrance: M25
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 118 mm
- Width 118 mm
- Depth: 80 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
2
- Type B
PG connector
- No. of PG sockets
1
- Nominal output voltage
400 V
IP44
- Factory colour
Grey
- Dim
(L x W x H) 80 x 118.00 x 118.00 mm
- Length
80 mm
- Width
118.00 mm
- Height
118.00 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
80.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135034 Bals Elektrotechnik CEE suspended distributor 540055 540055
User & Safety Instructions
User & Safety Instructions 3135034 Bals Elektrotechnik CEE suspended distributor 540055 540055
Description
Cross distributor
Protection class: IP44
Case:
Impact-resistant plastic housing with V2A suspension bracket
Colour: Lower part gray RAL 7035, upper part of housing gray RAL 7035
Device height: 118 mm, device width: 118 mm, device depth: 80 mm
Equipment:
1 x earthing contact socket 16A 230V IP 44 (7138)
2 x CEE socket 16A 400V 5p 6h IP 44 (132001)
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M25 cable gland
Additional Information:
Wired as ready to connect to terminal block.

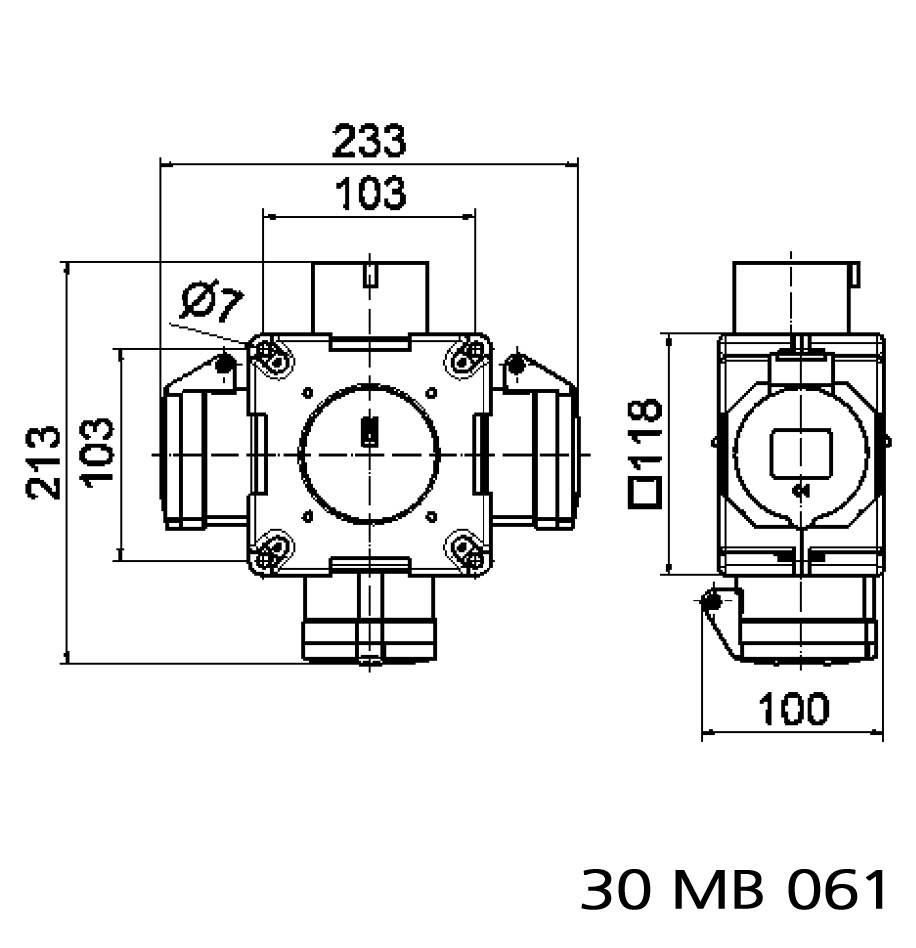

Structure according to Drawing: Z101247
