Bals Elektrotechnik CEE suspended distributor 571121 571121
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 3
- Other fixtures and/or empty spaces: 1
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
1
- No. of PG sockets
3
- Nominal output voltage
400 V
IP44
- Cable length
0 m
- Factory colour
Black
- Dim
(L x W x H) 140 x 140.00 x 140.00 mm
- Length
140 mm
- Width
140.00 mm
- Height
140.00 mm
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146565 Bals Elektrotechnik CEE suspended distributor 571121 571121
User & Safety Instructions
User & Safety Instructions 3146565 Bals Elektrotechnik CEE suspended distributor 571121 571121
Description
DIN EN 61439-2 standard
Protection class: IP44
Case:

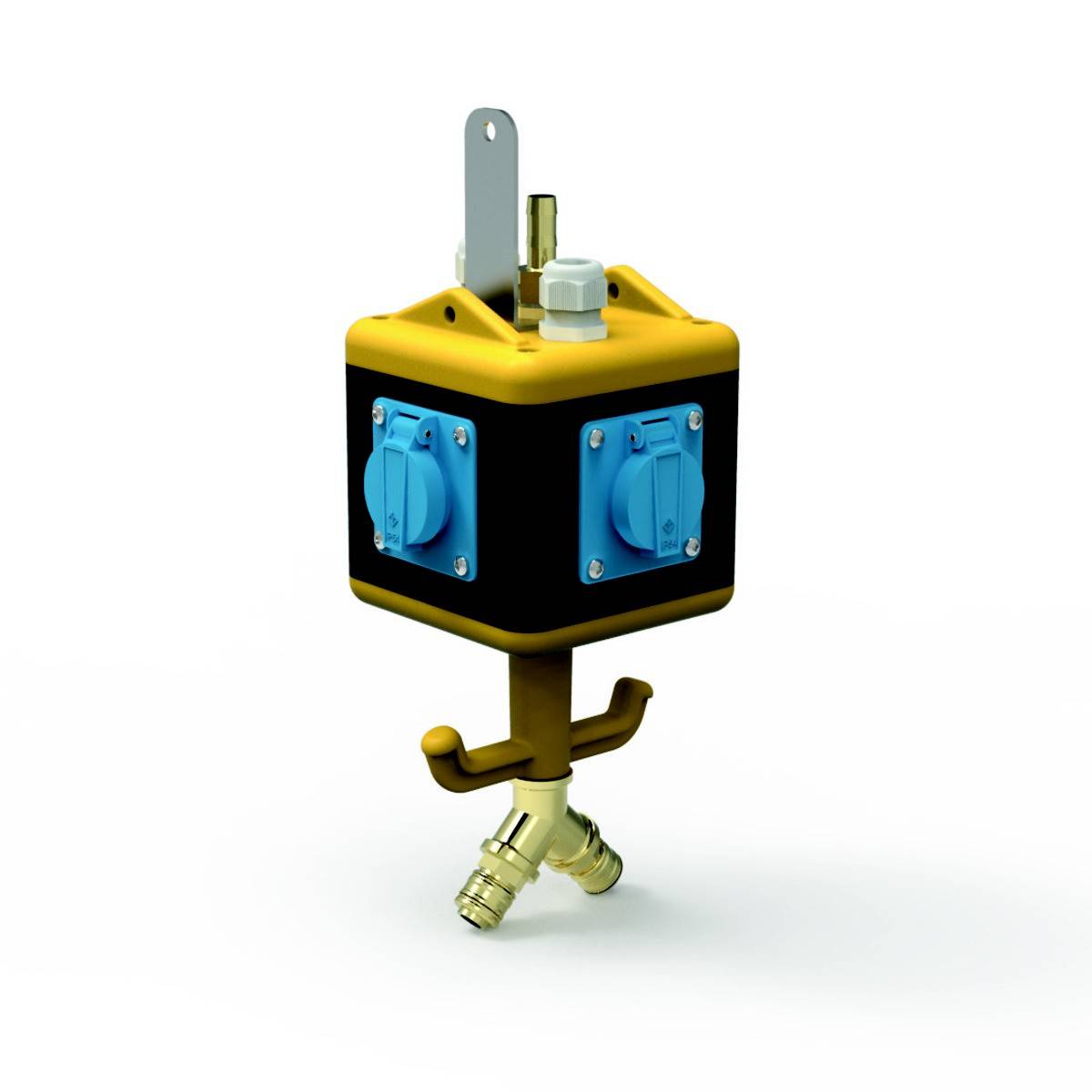

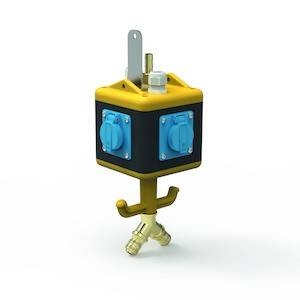

Shock-resistant solid rubber housing with bracket for hanging
And grip hooks
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1023
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
RDF Factor: 1
INA 16
Equipment:
3 x earthing contact socket-outlet 16A 230V IP 44
1 x CEE-socket 16A 400V 5p 6h IP 44
1 x compressed air connection consisting of
Access: 1/2"
Tube with hose nozzle NW 13mm
Exit: 1/2"
Two-way connection box with quick coupling
Security/Protection measure:
None
Cable entry/connection possibility:
2 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired for connection to two three-phase circuits.
CEE device with screwless, maintenance-free
Quick-Connect connection technology.

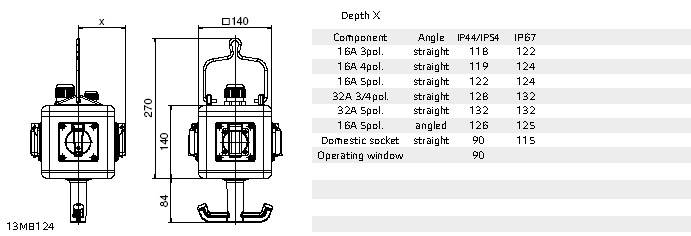

Structure according to Drawing: Z080326
This text is machine translated.
Protection class: IP44
Case:
Shock-resistant solid rubber housing with bracket for hanging
And grip hooks
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1023
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
RDF Factor: 1
INA 16
Equipment:
3 x earthing contact socket-outlet 16A 230V IP 44
1 x CEE-socket 16A 400V 5p 6h IP 44
1 x compressed air connection consisting of
Access: 1/2"
Tube with hose nozzle NW 13mm
Exit: 1/2"
Two-way connection box with quick coupling
Security/Protection measure:
None
Cable entry/connection possibility:
2 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired for connection to two three-phase circuits.
CEE device with screwless, maintenance-free
Quick-Connect connection technology.
Structure according to Drawing: Z080326
This text is machine translated.
