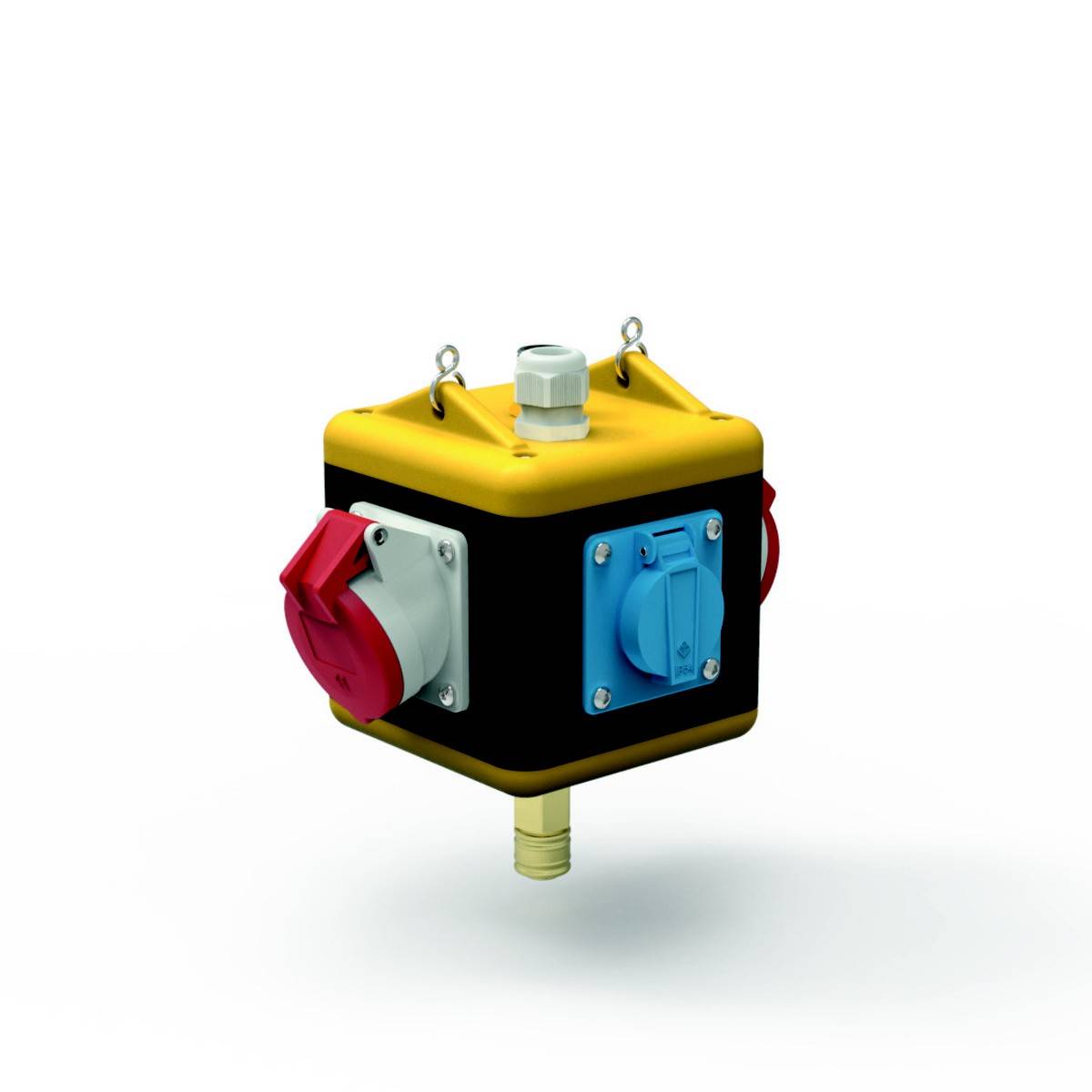

Bals Elektrotechnik CEE suspended distributor 57117 57117
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Other fixtures and/or empty spaces: 1
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
IP44
- Factory colour
Black
- Dim
(W x H x D) 140.00 x 140.00 x 140.00 mm
- Width
140.00 mm
- Height
140.00 mm
- Content
1 pc(s)
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145112 Bals Elektrotechnik CEE suspended distributor 57117 57117
User & Safety Instructions
User & Safety Instructions 3145112 Bals Elektrotechnik CEE suspended distributor 57117 57117
Description
UNI - Block, depending
Protection class: IP44
Case:
Shock-resistant solid rubber casing with hanging eyelets
Colour: Housing top yellow similar to RAL 1021, lower housing bottom black similar to RAL 9017

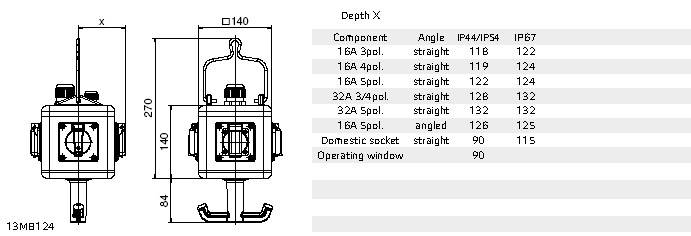

Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
2 x earthing contact socket-outlet 16A 230V IP 44
2 x CEE-socket 16A 400V 5p 6h IP 44
1 x compressed air connection consisting of
Access: 1/2"
Tube with external thread
Exit: 1/2"
Rapid coupling
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired to the clamping ring.
CEE plug-in sockets with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
Protection class: IP44
Case:
Shock-resistant solid rubber casing with hanging eyelets
Colour: Housing top yellow similar to RAL 1021, lower housing bottom black similar to RAL 9017
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
2 x earthing contact socket-outlet 16A 230V IP 44
2 x CEE-socket 16A 400V 5p 6h IP 44
1 x compressed air connection consisting of
Access: 1/2"
Tube with external thread
Exit: 1/2"
Rapid coupling
Security/Protection measure:
None
Cable entry/connection possibility:
1 x M25 cable gland (sealing range: 11-17mm)
Additional Information:
Ready wired to the clamping ring.
CEE plug-in sockets with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
