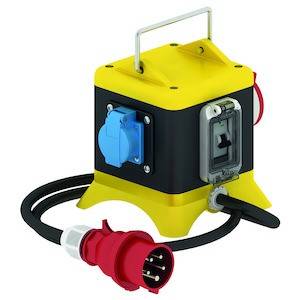

Bals Elektrotechnik CEE suspended distributor 57275 57275
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Security: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 171 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
1
- No. of PG sockets
2
IP44
- Cable length
2 m
- Factory colour
Black
- Dim
(W x H x D) 140.00 x 171.00 x 140.00 mm
- Width
140.00 mm
- Height
171.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3145114 Bals Elektrotechnik CEE suspended distributor 57275 57275
Description
UNI - Block, portable, protection type: IP44, housing: 140 x 140 mm with carry handle and stand, device color: Black housing similar to RAL 9017, housing part yellow similar to RAL 1021, device height: 171 mm, device width: 140 mm, device depth: 140 mm, equipment: 2 x safety socket 16A 230V 1 x CEE-socket 16A 400V 5p, security/protection: 1 x FI-circuit breaker 25/0.03A 2p, cable entry/connection possibility: CEE-plug 16A 400V 5p with 2m H07RN-F5G1.5 Additional information: ready to connect wired to terminals.
